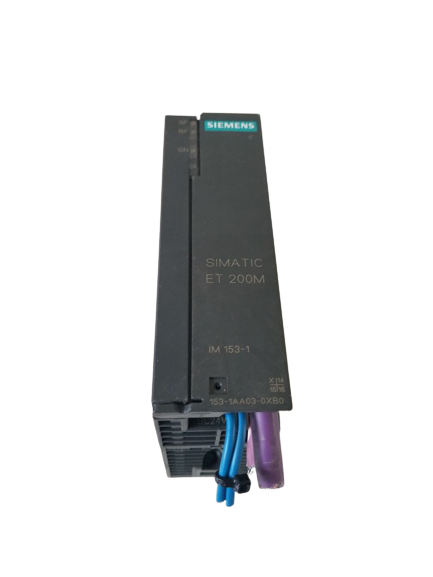

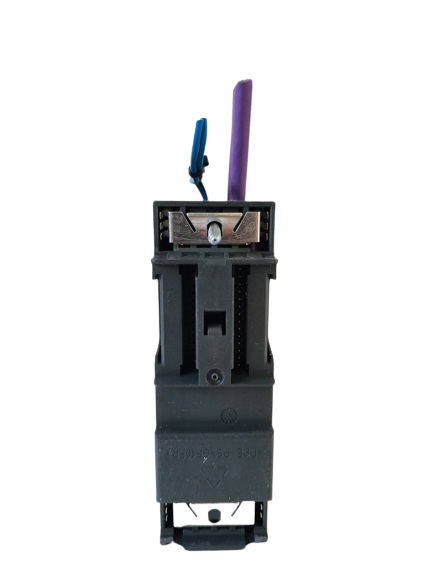

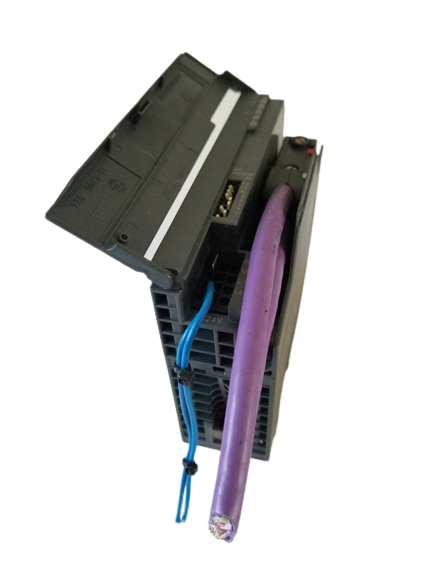

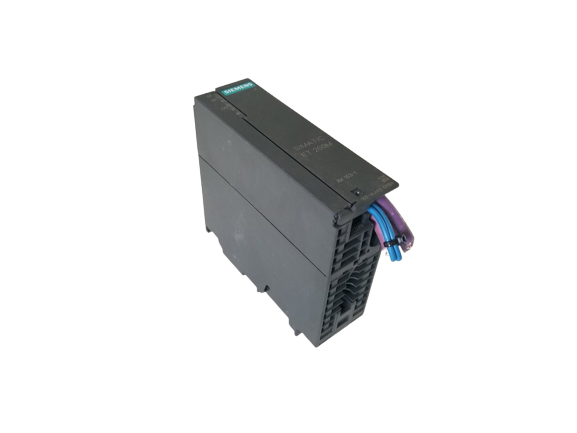

Siemens SIMATIC ET 200M IM 153-1 Interface Module — 6ES7153-1AA03-0XB0 — Lot of 2

PROFIBUS DP slave interface module for ET 200M distributed I/O, up to 8 S7-300 modules

Overview

This lot is 2 units of the Siemens SIMATIC IM 153-1, part no. 6ES7153-1AA03-0XB0, an interface module that connects an ET 200M station to a PROFIBUS DP network, supporting up to 8 S7-300 I/O modules per station. ET 200M is a modular and universally applicable I/O system for control cabinets in IP20, usable as central I/O on an S7-300 or in distributed configurations, and its standardized module setup considerably simplifies logistics and spare parts stocking. Note: this item may have broken or missing parts — please review the listing photos carefully before purchasing.

Key Features

  • PROFIBUS DP slave interface: Connects an ET 200M station to a PROFIBUS DP network as a DP slave.
  • Supports up to 8 S7-300 modules: Flexible station configuration with a wide range of S7-300 I/O and function modules.
  • Modular, standardized system: Simplifies spare parts logistics through shared installation architecture with the S7-300 platform.
  • Mains buffering: 5 ms stored energy time to bridge brief supply interruptions.
  • Standard and safety-oriented applications: ET 200M supports both standard I/O and safety-related process connections.
  • HART-compatible: Supports modules with extended user data, including HART auxiliary variables.

What's Included

Model Function Qty
IM 153-1 (6ES7153-1AA03-0XB0) PROFIBUS DP interface module for ET 200M 2

Note: item may have broken or missing parts — please check listing photos carefully; ask any questions before purchasing.

Technical Specifications

Product type designation: IM 153-1 DP ST.

Supply voltage: 24 V DC (rated); permissible range 20.4-28.8 V DC.

Mains buffering: 5 ms stored energy time.

Current consumption: Max. 350 mA at 24 V DC; typ. inrush current 2.5 A; I²t 0.1 A²·s.

Output voltage: 5 V DC (rated).

Output current (backplane bus): Max. 1 A.

Power loss: Typ. 3 W.

Address area: Inputs 128 byte; outputs 128 byte.

Compatibility & Applications

Part of Siemens' SIMATIC ET 200M distributed I/O family, this module is well suited to industrial automation systems needing a PROFIBUS DP connection between an ET 200M station and the plant network, across manufacturing, process control, and general factory automation applications.
