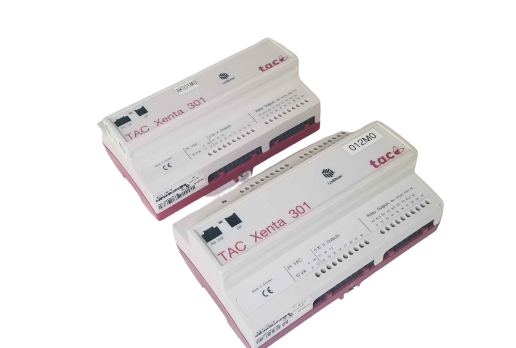

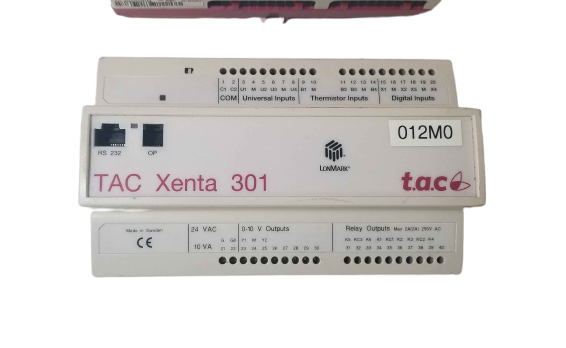

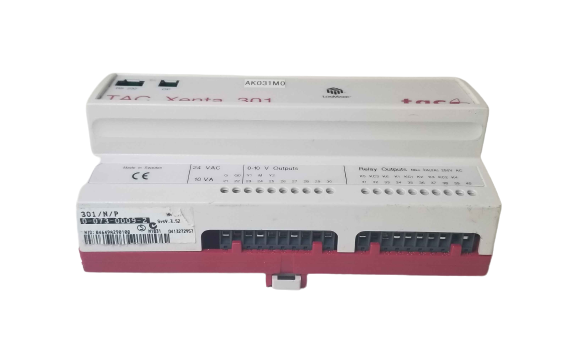

TAC Xenta 301 Programmable Controller — 0-073-0009-2, 24VAC/10VA — Lot of 2

Freely programmable LonWorks-based controller for HVAC building automation

Overview

This lot is 2 units of the TAC (Schneider Electric) Xenta 301, Part No. 0-073-0009-2, a freely programmable controller with integral LonWorks communication from the TAC Xenta 300 series. It can operate as a standalone unit or connect easily to a LONWORKS network, offering complete heating and ventilation control functionality with the option to add separate I/O modules when additional field points are needed.

Key Features

  • LonMark-certified LonWorks communication: TP/FT-10 network connectivity at 78 kbps, integrating with Schneider Electric's TAC Vista building management system.
  • Standalone or networked operation: Functions independently or as part of a larger LonWorks-based automation network.
  • 0-10V analog and relay outputs: Relay outputs rated up to 2A at 250V AC for direct switching of connected equipment.
  • Universal digital input configuration: Flexible input configuration supporting various sensor and switch types.
  • Local operator interface support: Compatible with the TAC Xenta OP operator panel for local monitoring and configuration.
  • Class 2 rated I/O: Safe, low-energy circuit design for the majority of input/output connections.

What's Included (Lot of 2)

Model Function Qty
Xenta 301 (0-073-0009-2) Programmable HVAC controller, LonWorks 2

HW 2.2 | Made in Sweden

Technical Specifications

Supply voltage: 24V AC ±20%, 50/60 Hz (or 19-40V DC).

Power consumption: Max. 5W; transformer sizing 10 VA.

Outputs: 0-10V analog outputs; relay outputs max. 2A at 250V AC.

Communication: LonWorks TP/FT-10, 78 kbps.

Environmental: Storage -20°C to 50°C; operation 0°C to 50°C; max. 90% RH non-condensing.

Dimensions / weight: 180 x 110 x 75 mm; approx. 330g-1.0kg (variant dependent).

Compatibility & Applications

Compatible with Schneider Electric's TAC Vista building management system and general LonWorks-based automation networks, the Xenta 301 is well suited to HVAC control in commercial buildings, energy management applications, and general building automation systems requiring flexible, freely programmable control logic, with the ability to add separate I/O modules for expanded field point capacity.
