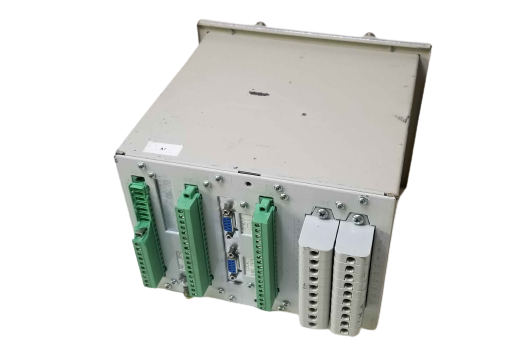

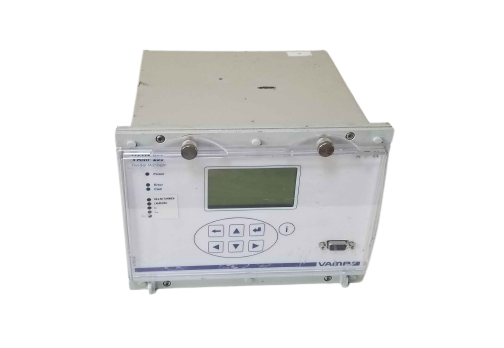

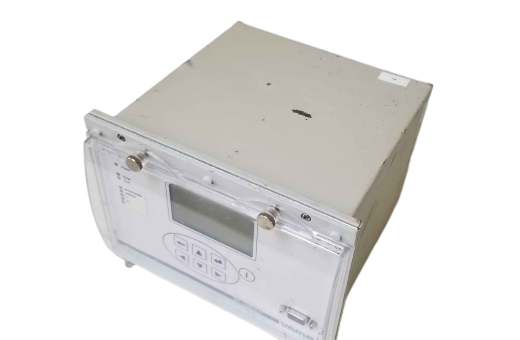

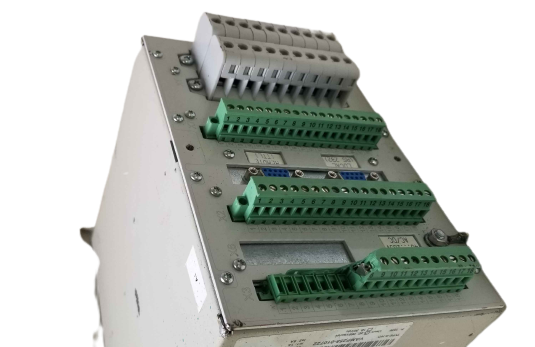

Vamp 255 Feeder Manager VAMP255-010722

€650,00
€650,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Vamp 255 Feeder Manager VAMP255-010722Vamp 255 Feeder Manager VAMP255-010722Vamp 255 Feeder Manager VAMP255-010722Vamp 255 Feeder Manager VAMP255-010722Vamp 255 Feeder Manager VAMP255-010722Vamp 255 Feeder Manager VAMP255-010722Vamp 255 Feeder Manager VAMP255-010722Vamp 255 Feeder Manager VAMP255-010722Vamp 255 Feeder Manager VAMP255-010722Vamp 255 Feeder Manager VAMP255-010722

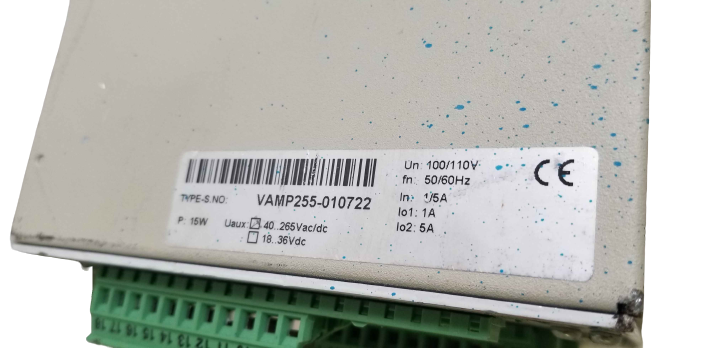

Vamp 255 Feeder Manager VAMP255-010722 UN 100/110V FN 50/60HZ IN 1/5A LO1:1A LO2:5A

- Current measuring range 0…250 A -

Thermal withstand 20 A (continuously) 100 A (for 10 s), 500 A (for 1 s)

Burden < 0.2 VA

Rated residual current (optional) 5 A (configurable for CT secondaries 1 – 10 A)

- Current measuring range 0…50 A -

Thermal withstand 20 A (continuously) 100 A (for 10 s), 500 A (for 1 s)

- Burden < 0.2 VA

Rated residual current 1 A (configurable for CT secondaries 0.1 – 10.0 A)

- Current measuring range 0…10 A

Thermal withstand 4 A (continuously) 20 A (for 10 s), 100 A (for 1 s) - Burden < 0.1 VA

Rated residual current (optional) 0.2 A (configurable for CT secondaries 0.1-10.0 A)

- Current measuring range 0…2 A

- Thermal withstand 0.8 A (continuously) 4 A (for 10 s), 20 A (for 1 s)

- Burden < 0.1 VA

Rated voltage Un 100 V (configurable for VT secondaries 50-120 V)

- Voltage measuring range 0 – 160 V (100 V/110 V)

- Continuous voltage withstand 250 V

- Burden < 0.5V A Rated frequency fn 45 – 65 Hz

- Frequency measuring range 16 – 75 Hz

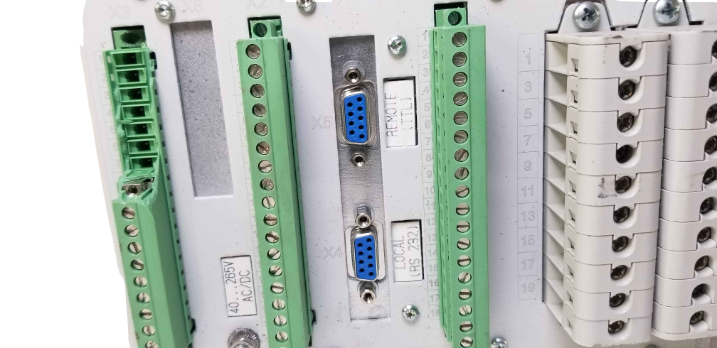

Terminal block: Maximum wire dimension: - Solid or stranded wire 4 mm2 (10-12 AWG)

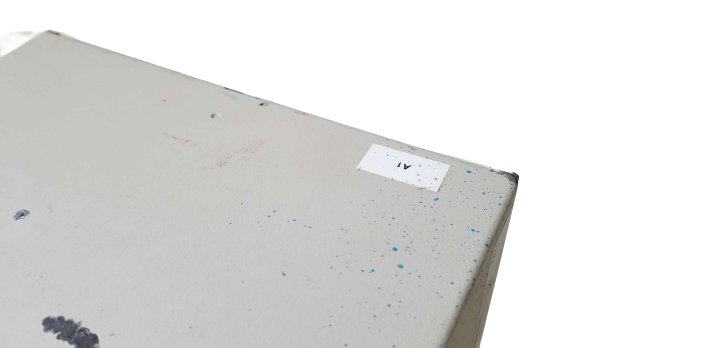

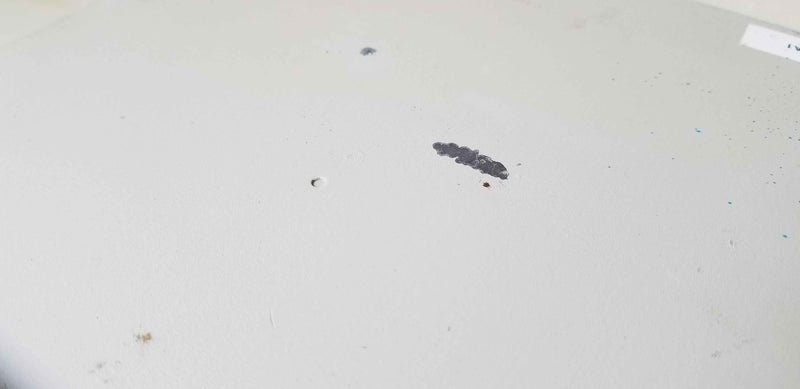

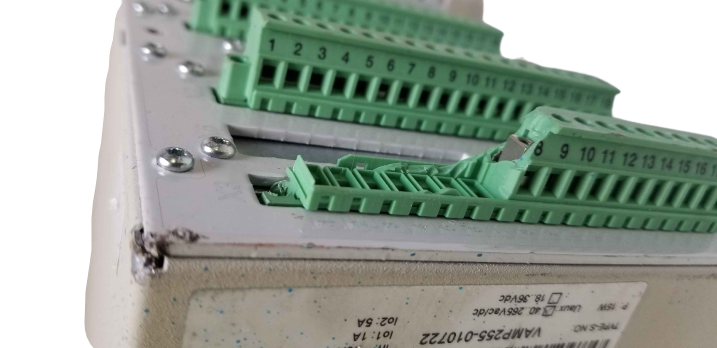

Note L1:This item may have scratches or dents on its surface but is still functional. Please check the pictures carefully. Please ask any questions!
