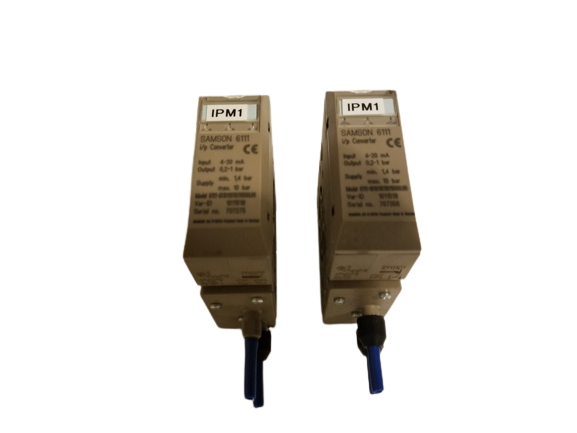

Up for Sale: 2x Samson Type 6111 i/p Electro-Pneumatic Converters (4-20mA, 0.2–1.0 BAR)

Upgrade your control systems with the Samson Type 6111 i/p Converter, a high-performance electro-pneumatic solution designed to convert electrical input signals into precise pneumatic output signals. Ideal for industrial automation and process control, these converters offer reliable and efficient operation in demanding environments.

Product Specifications:

  • Input Signal: 4 to 20 mA (optional: 0 to 20 mA)
    • Split-Range Options: 4 to 12 mA or 12 to 20 mA (custom signals available upon request)
  • Output Pressure Range: 0.2 to 1.0 BAR
  • Air Flow Capacity:
    • 2.0 m³/h at 0.6 BAR output (0.2–1.0 BAR range)
    • 2.5 m³/h at 1.2 BAR output (0.4–2.0 BAR range)
    • 8.5 m³/h at 5.0 BAR output (0.1–8.0 BAR range)
  • Load Capacity:
    • Standard Version: ≤6 V (300 Ω at 20 mA)
    • Explosion-Protected Version: 7 V (350 Ω at 20 mA)
    • Without Switch-off Electronics: ≤4 V (200 Ω at 20 mA)
  • Operating Temperature: –20 to 70 °C
  • Storage Temperature: –40 to 70 °C
  • Protection Rating: IP20

Key Features:

  • Precise Signal Conversion: Converts standard 4–20 mA signals into accurate pneumatic outputs.
  • Flexible Operation: Supports split-range configurations for specialized applications.
  • High Air Flow Rates: Ensures consistent performance across varied pressure ranges.
  • Durable Design: Engineered to withstand harsh industrial environments.
  • Explosion-Protected Option: Enhanced safety for hazardous applications.

Applications:

  • Process automation in chemical and petrochemical industries
  • Control systems in HVAC and energy management
  • Pressure regulation in industrial manufacturing

The price here is per lot
