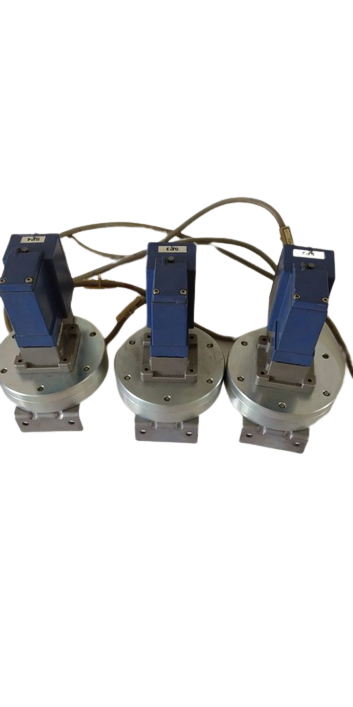

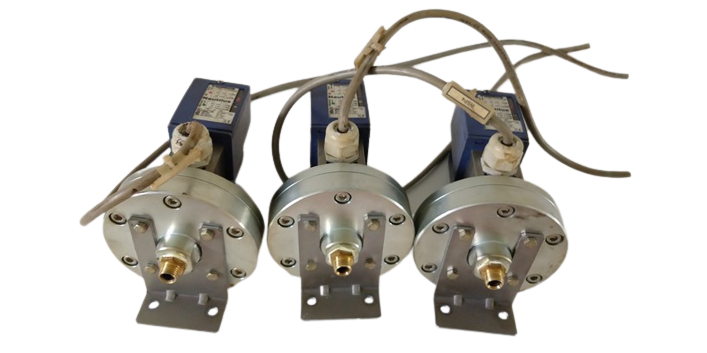

3x Telemecanique Nautilus Type XMLB010A2S13 Pressure Switch

€240,00
€240,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
3x Telemecanique Nautilus Type XMLB010A2S13 Pressure Switch3x Telemecanique Nautilus Type XMLB010A2S13 Pressure Switch3x Telemecanique Nautilus Type XMLB010A2S13 Pressure Switch3x Telemecanique Nautilus Type XMLB010A2S13 Pressure Switch3x Telemecanique Nautilus Type XMLB010A2S13 Pressure Switch

3x, Telemecanique Nautilus Type XMLB010A2S13 Pressure Transmitter

Description: pressure switch XMLB 10 bar - adjustable scale 2 thresholds - 1 C/O
Product weight: 1.55 lb(US) (0.705 kg)
Range of product: OsiSense XM
IP degree of protection: IP66
Standards: CE, CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1
Device short name: XMLB
Width: 1.38 in (35 mm)
Height: 4.45 in (113 mm)
Depth: 2.95 in (75 mm)
Protective treatment: TC (standard version)
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14, 500 V conforming to EN/IEC 60947-1, 300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-1
Mechanical durability: 5000000 cycles
Operating rate: 120 cyc/mn at 0...70 C
Vibration resistance: 4 gn (f = 30...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 50 gn conforming to IEC 60068-2-27
Electrical connection: Screw-clamps terminals 1 x 0.5...2 x 2.5 mm
Enclosure material: Zinc alloy
Possible differential minimum at low setting: 8.27 psi (0.57 bar) (+/- 0.05 bar)
Product or component type: Electromechanical pressure sensor
Possible differential minimum at high setting: 12.33 psi (0.85 bar) (- 0.1 bar, + 0.15 bar)
Product certifications: LROS (Lloyds register of shipping), UL, EAC, BV, CCC, CSA
Pressure sensor type: Electromechanical pressure sensor
Maximum permissible pressure - per cycle: 181.3 psi (12.5 bar)
Terminal block type: 4 terminals
Ambient air temperature for operation: -13...158 F (-25...70 C)
Pressure sensor size: 145.04 psi (10 bar)

price here is per lot
