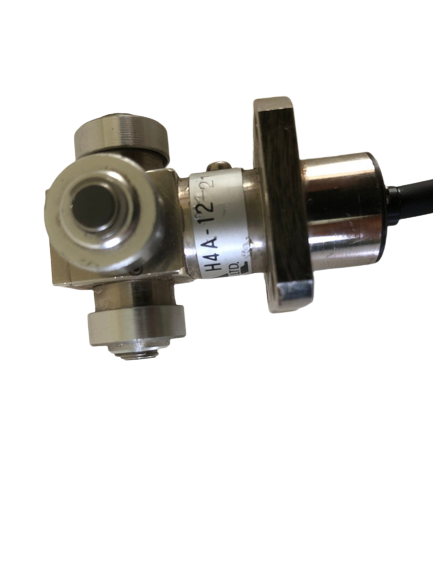

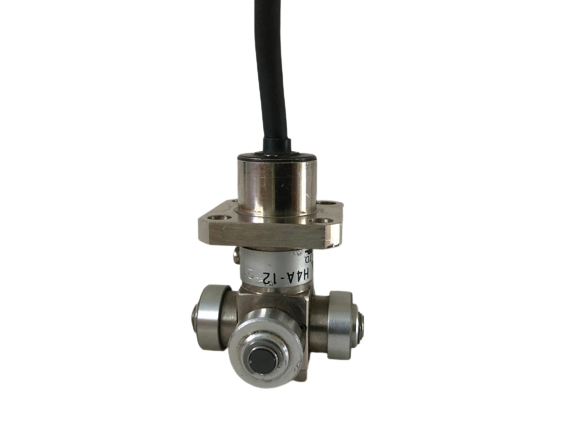

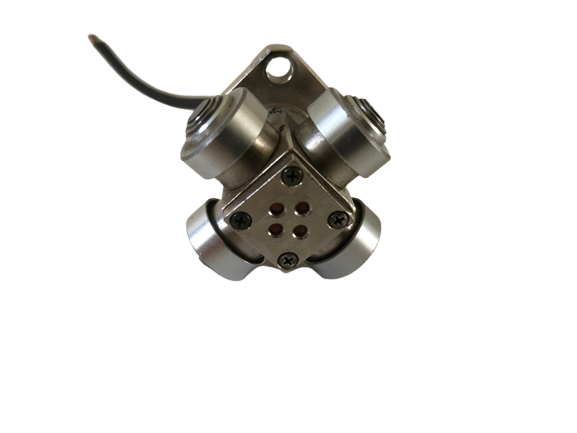

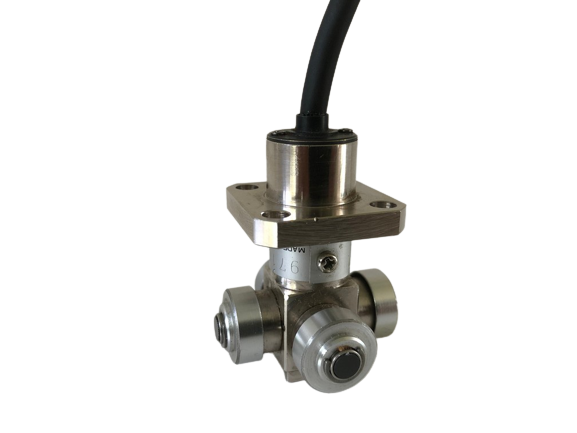

Metrol LTD H4A-12 Tool Setter Sensor

€250,00
€250,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Metrol LTD H4A-12 Tool Setter SensorMetrol LTD H4A-12 Tool Setter SensorMetrol LTD H4A-12 Tool Setter SensorMetrol LTD H4A-12 Tool Setter Sensor

Metrol H4A-12 Tool Setter Sensor for CNC Lathes and Machining Centers

Ultra-precision touch probe for tool presetting, wear, and breakage detection

Overview

This is a Metrol H4A-12, a high-precision tool setter sensor from Metrol's H4A series, used on CNC lathes and machining centers to preset the cutting blade and detect tool wear, chipping, and thermal displacement. By directly touching the tool's leading edge with its contact surface, the sensor delivers consistent, highly accurate positioning down to 1-micron repeatability, helping to maintain constant machining precision. Manufactured in Japan, the H4A series has shipped over 100,000 units to more than 74 countries since its development in 1983.

Key Features

  • High contact life: Rated for 3,000,000 contact cycles for long-term reliability.
  • Precise tool detection: Direct-contact touch sensing enables consistent, highly accurate tool positioning.
  • IP67 protection: High-precision detection maintained even in adverse coolant-splash environments.
  • Overtravel signal: Built-in protection against sensor or spindle damage if the tool is pushed too far into the sensor.
  • High-precision bearings: Enable high-speed tool length measurement without breaking even the finest 0.2mm diameter tools.
  • Proven durability: Passed rigorous coolant immersion and durability testing on actual machining center equipment.

What's Included

Model Function Qty
H4A-12 Tool setter sensor for CNC lathes 1

Technical Specifications

Contact life: 3,000,000 cycles.

Stroke: 2 mm.

Contact force: 2 N.

Protective structure: IEC IP67.

Country of origin: Japan.

Compatibility & Applications

Part of Metrol's H4A tool setter series, this sensor is used across a wide range of CNC lathes and machining centers from major machine tool manufacturers including Mazak, Mori Seiki, Okuma, and others, well suited to automated tool measurement, in-machine tool compensation, and wear/breakage detection to reduce setup time and maintain consistent machining accuracy.
