Pilz PNOZ X3 24VAC 24VDC 3n/o 1n/c 1so Safety Relay

€80,00
€80,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Pilz PNOZ X3 24VAC 24VDC 3n/o 1n/c 1so Safety RelayPilz PNOZ X3 24VAC 24VDC 3n/o 1n/c 1so Safety RelayPilz PNOZ X3 24VAC 24VDC 3n/o 1n/c 1so Safety RelayPilz PNOZ X3 24VAC 24VDC 3n/o 1n/c 1so Safety Relay

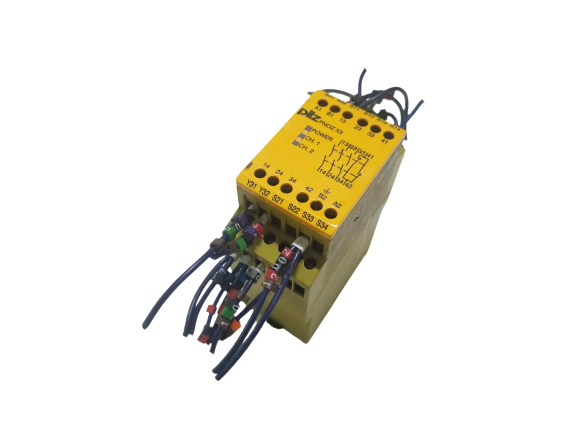

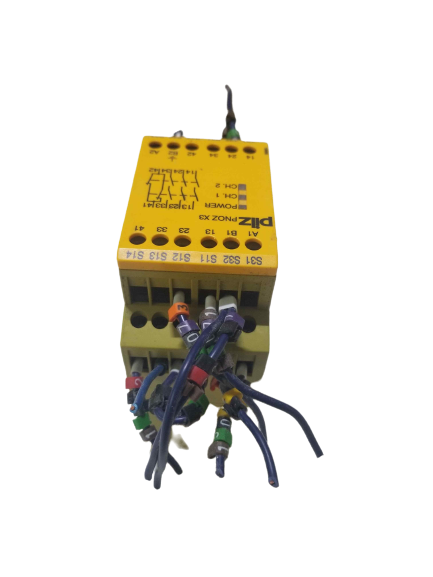

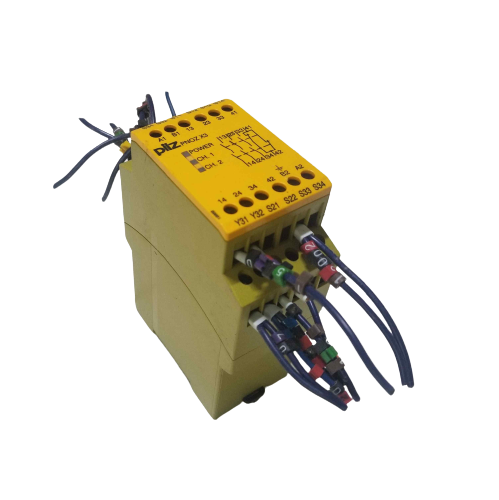

Pilz PNOZ X3 Safety Relay — 24VAC/24VDC, 3N/O, 1N/C, 1SO

E-STOP and safety gate monitoring relay with redundant self-monitoring circuit

Overview

This is a Pilz PNOZ X3, a standalone safety relay providing safety-oriented interruption of a safety circuit for E-STOP pushbuttons, safety gate limit switches, and similar protective devices. Built with positive-guided relay outputs and a redundant, self-monitoring circuit design, it ensures the safety function remains effective even in the event of a component failure — with correct opening and closing of the safety contacts automatically tested on every on-off cycle.

Key Features

  • Redundant self-monitoring circuit: Automatically tests correct opening and closing of the safety contacts on every switching cycle, keeping the safety function effective even if a component fails.
  • Flexible input wiring: Supports 1- or 2-channel wiring, with or without detection of shorts across contacts, connecting E-STOP pushbuttons, safety gate limit switches, or start buttons.
  • Positive-guided relay outputs: 3 instantaneous safety contacts (N/O) plus 1 instantaneous auxiliary contact (N/C), along with 1 semiconductor output signaling switch state.
  • Automatic or monitored start-up: Configurable start-up behavior to match the required safety application.
  • LED status indication: Clear LEDs for supply voltage and channel/switch status, simplifying commissioning and diagnostics.
  • Short-circuit-proof supply: Transformer is short-circuit proof, with an electronic fuse used on the DC supply for added protection.

What's Included

Model Function Qty
PNOZ X3 Safety relay, E-STOP/safety gate monitoring 1

Made in Germany

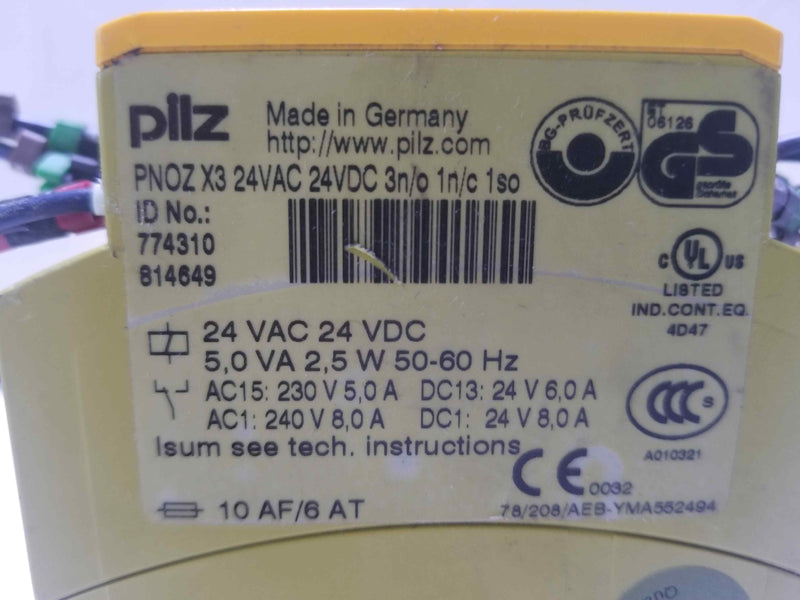

Technical Specifications

Supply voltage: 24V AC / 24V DC.

I/O: 2 inputs; 5 outputs (3 N/O relay + 1 N/C relay + 1 semiconductor).

Contact rating: 24V DC / 6A; also rated AC15 230V/5.0A, AC1 240V/8.0A, DC1 24V/8.0A.

Safety category: Cat. 2, 4 (EN ISO 13849).

Mounting / connection: DIN rail, screw terminals; unit width 45mm.

Protection rating: IP40 (unit); recommended control cabinet IP54+.

Operating temperature: -20°C to 55°C.

Weight: Approx. 380g.

Compatibility & Applications

Part of Pilz's PNOZ X safety relay family, this unit monitors safety functions such as E-STOP, safety gates, light barriers, light grids, light curtains, and limit switches. It's well suited to industrial machine safety circuits in factories and warehouses, particularly in high-traffic automated environments requiring rapid, reliable power cutoff on activation of a safety device.
