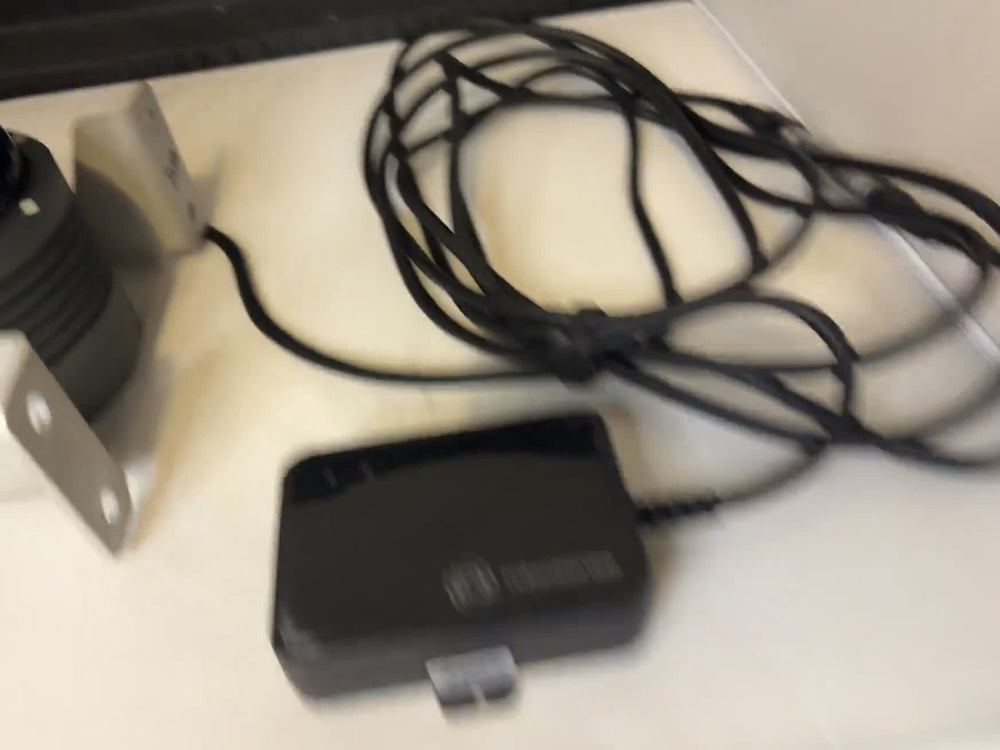

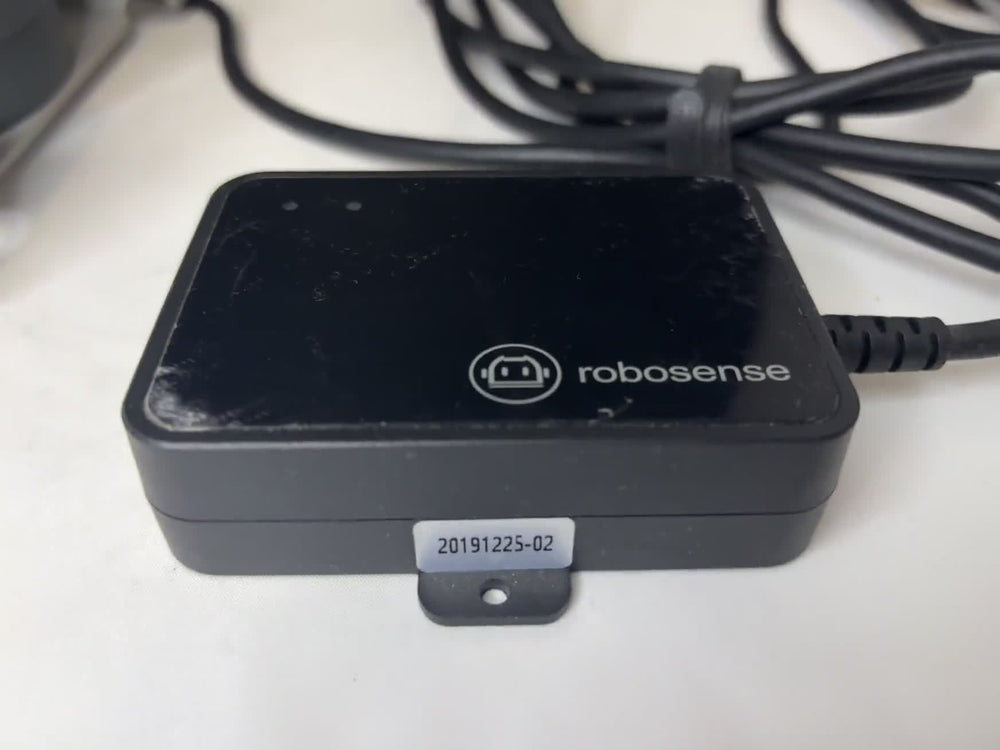

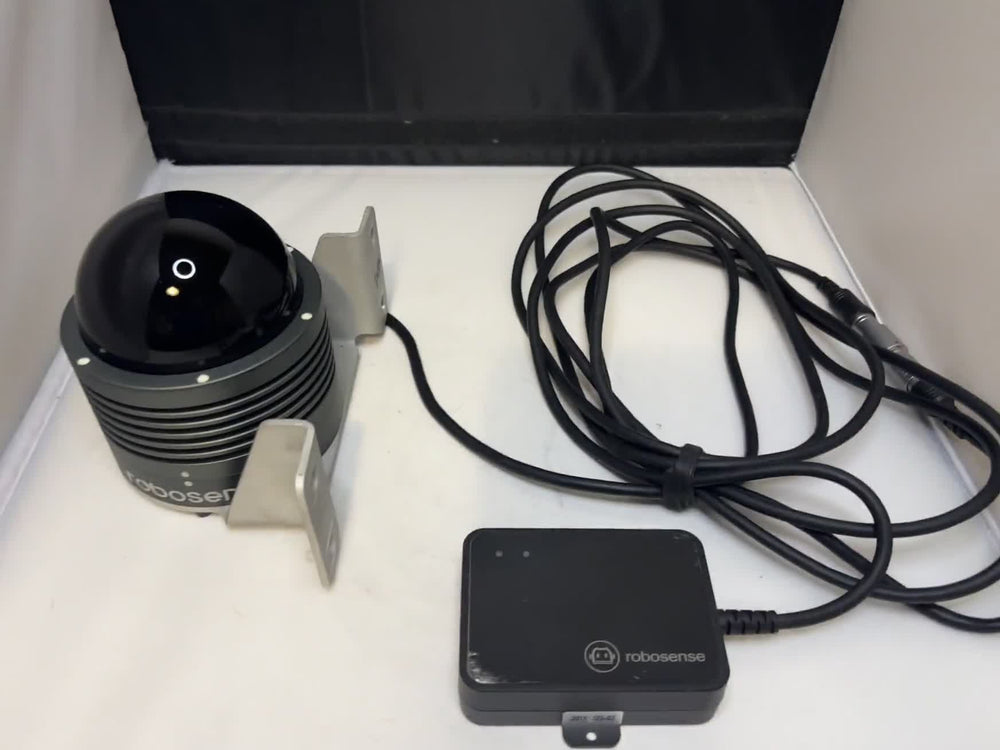

RoboSense RS-BPearl 32Ch 360° LiDAR Blind Spot Sensor IP67 | S/N 2400B0CF0260- with Interface Connection Box

€650,00
€650,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Robo-S/N 2400B0CF026-sense-v1Robo-S/N 2400B0CF026-sense-v1Robo-S/N 2400B0CF026-sense-v14Robo-S/N 2400B0CF026-sense-v13Robo-S/N 2400B0CF026-sense-v15Robo-S/N 2400B0CF026-sense-v17Robo-S/N 2400B0CF026-sense-v17Robo-S/N 2400B0CF026-sense-v14Robo-S/N 2400B0CF026-sense-v12Robo-S/N 2400B0CF026-sense-v10Robo-S/N 2400B0CF026-sense-v13

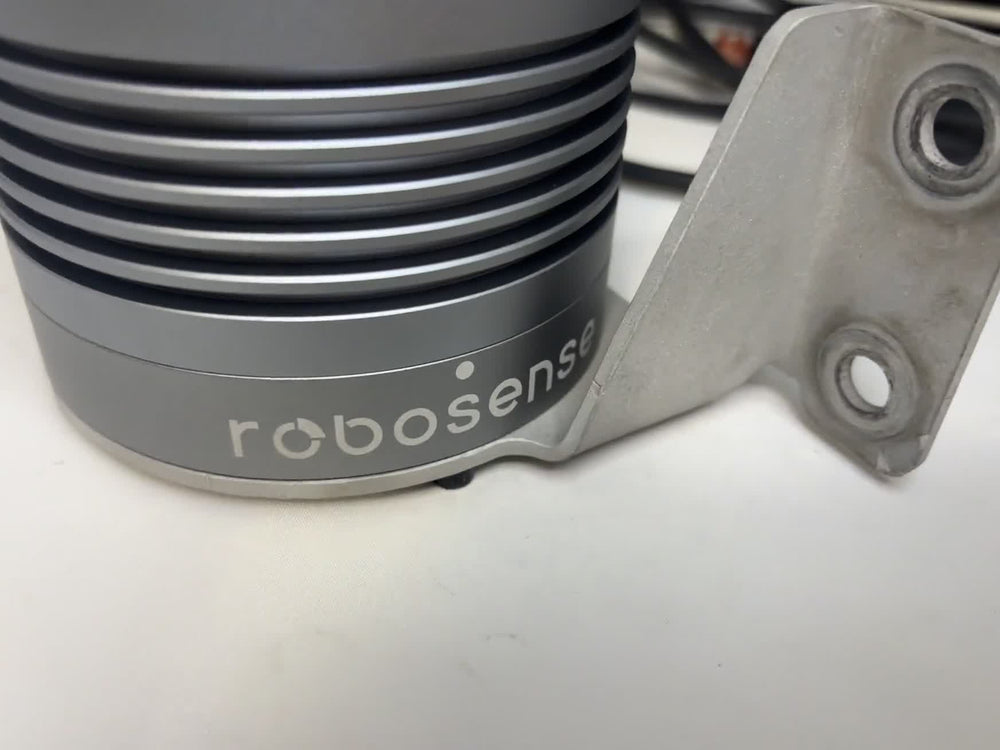

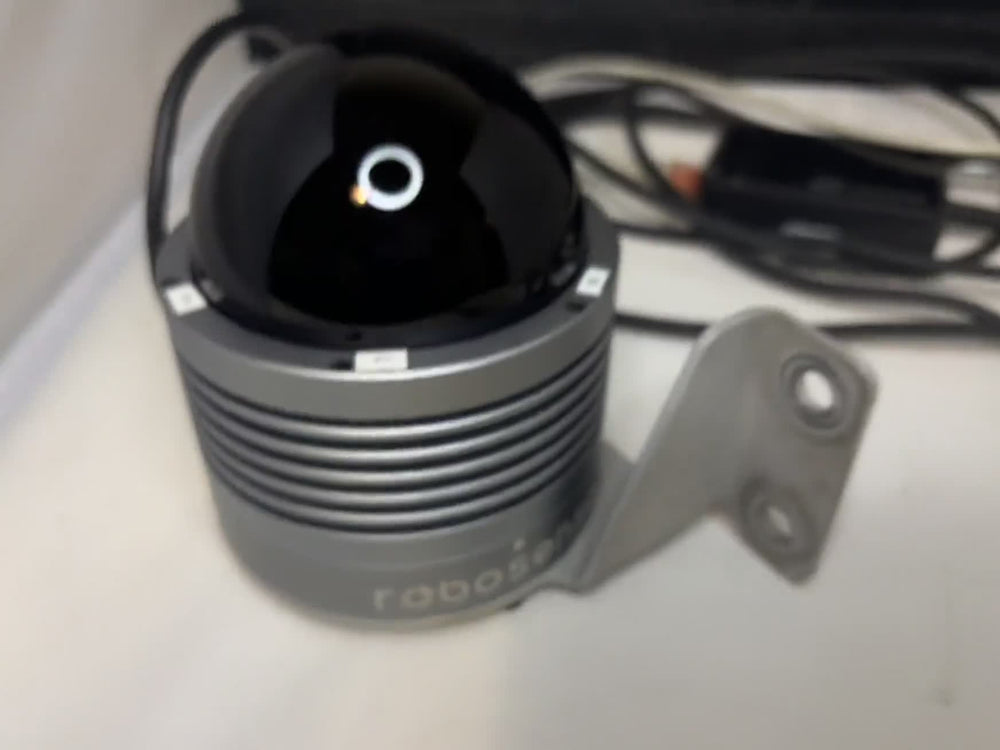

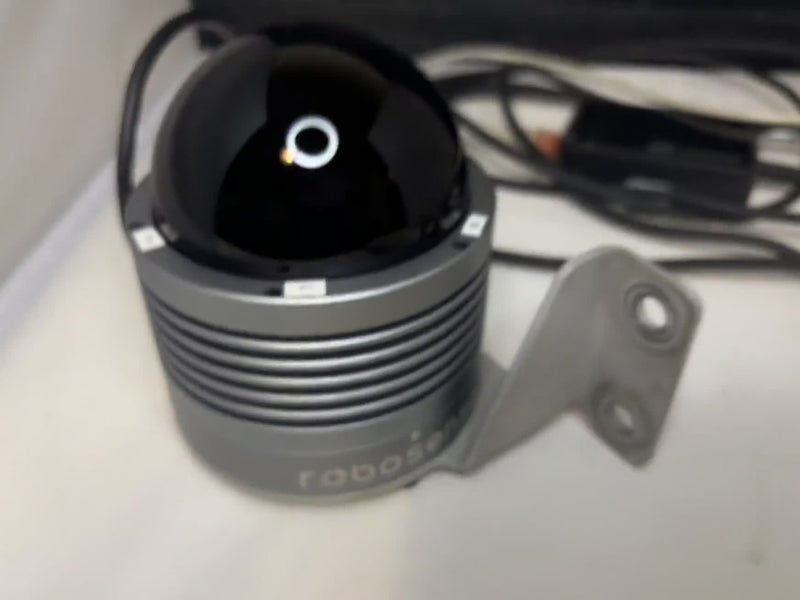

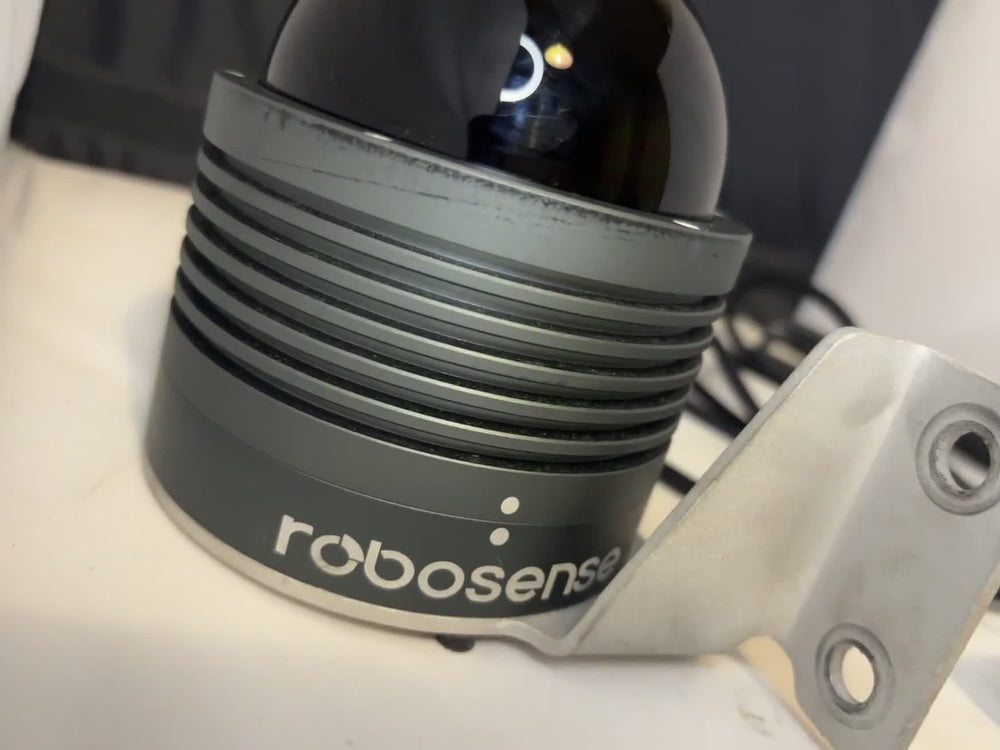

RoboSense RS-BPearl 32Ch 360° LiDAR Blind Spot Sensor, IP67

32-channel 360° mechanical LiDAR for close-range blind-spot detection in autonomous vehicles and robotics

Overview

This is a RoboSense RS-BPearl 32-channel 360° LiDAR sensor, manufactured by Suteng Innovation Technology Co., Ltd., designed specifically for close-range blind-spot detection around vehicles, robots, and other autonomous platforms. With a 360° horizontal field of view and a wide 90° vertical field of view, the RS-BPearl is built to be mounted low on a vehicle or machine to cover near-field zones — detecting objects as close as a few centimeters away — that forward- or roof-mounted LiDAR units typically cannot see. Its IP67-rated, weatherproof housing and wide operating temperature range make it suited to continuous outdoor deployment in autonomous driving, robotics navigation, and industrial automation applications.

Key Features

  • 32-channel, 360° mechanical LiDAR: Provides full 360° horizontal coverage with a 90° vertical field of view for comprehensive close-range 3D sensing.
  • Ultra-close blind-spot detection: Detects objects within approximately 0.1 m or less, ideal for near-field obstacle awareness that other sensors miss.
  • High point-cloud output: Generates roughly 576,000 points per second (single return) at a frame rate of 10 Hz or 20 Hz.
  • Ethernet data interface: Streams point cloud data over Ethernet using UDP packets for straightforward integration with host processing systems.
  • Rugged, weatherproof construction: IP67-rated housing with an operating range of -30°C to +60°C, suited to demanding outdoor environments.
  • Individually serialized: This unit carries a unique serial number (2400B0CF0260) and is marked with revision V2.1.0 for traceability.
  • CE certified: Certified for compliance with applicable EU standards.

What's Included

Model Function Qty
RS-BPearl 32-channel 360° LiDAR blind spot sensor 1

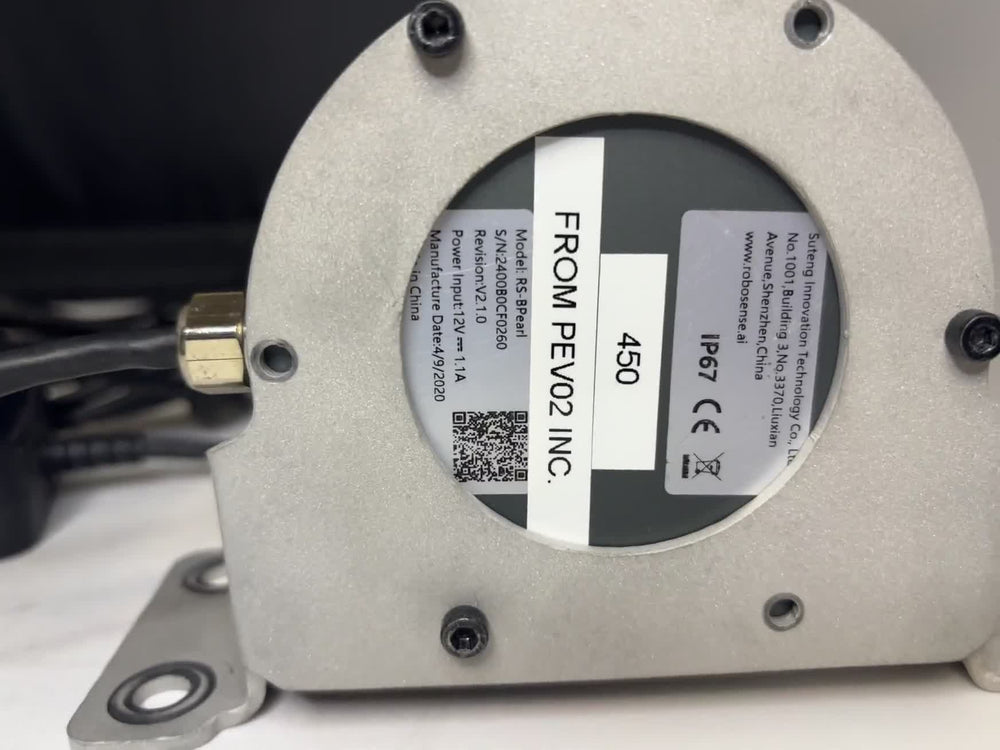

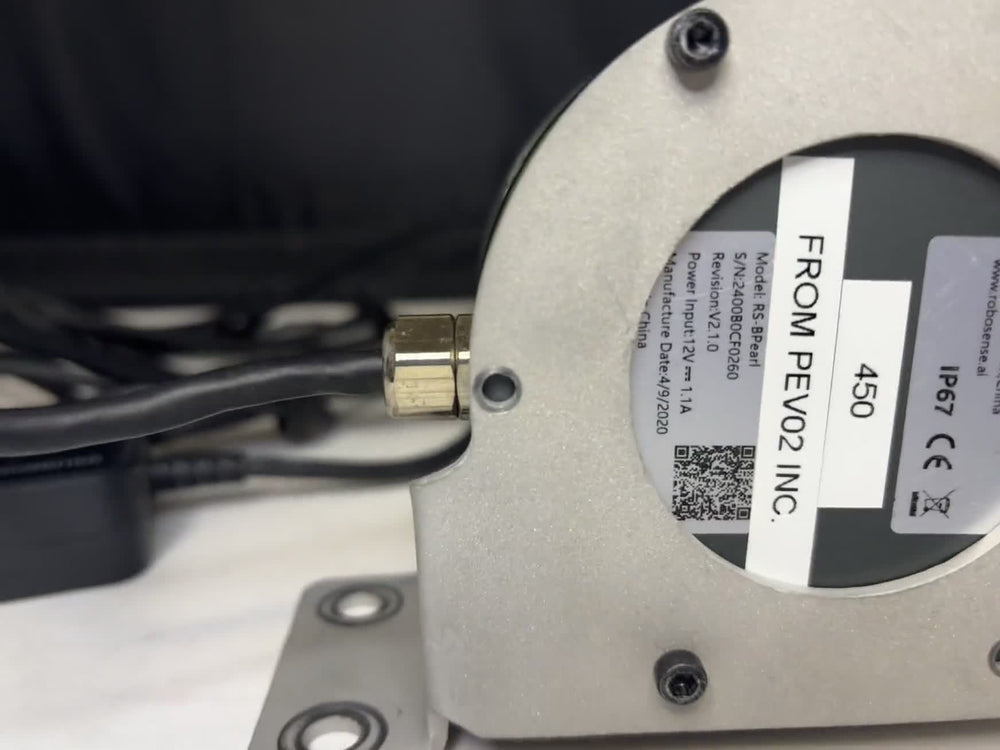

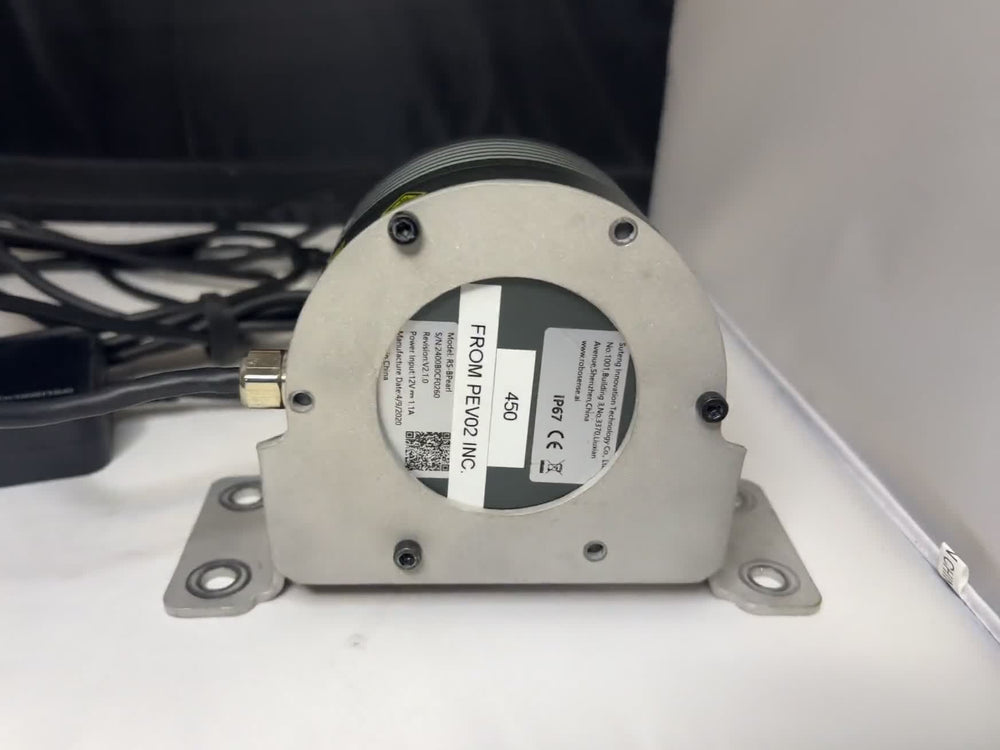

S/N: 2400B0CF0260 | Revision: V2.1.0 | Brand: RoboSense (Suteng Innovation Technology Co., Ltd.) | Manufacturing Date: 04/09/2020 | IP67 Rated | CE Certified

Technical Specifications

Product type: RS-BPearl, 32-channel 360° LiDAR blind spot sensor.

Serial number (this unit): 2400B0CF0260.

Firmware/hardware revision: V2.1.0.

Laser channels: 32.

Field of view: 360° horizontal, 90° vertical.

Blind spot detection: ≤ 0.1 m minimum detection range.

Maximum range: 100 m (30 m at 10% reflectivity).

Range accuracy: ±3 cm (typical).

Resolution: 0.2° / 0.4° horizontal; 2.81° vertical.

Frame rate: 10 Hz / 20 Hz.

Point rate: ~576,000 points per second (single return).

Interface: Ethernet, point cloud data transmitted via UDP packets.

Operating temperature: -30°C to +60°C.

Dimensions: Ø111 mm × 100 mm.

Weight: ~0.92 kg.

Power input: 12V, ≈1.1A.

Ingress protection: IP67.

Manufacturing date: 04/09/2020.

Compatibility & Applications

This sensor is intended for close-range 3D perception in autonomous vehicles, mobile robots, and industrial automation systems, particularly where blind-spot and near-field obstacle detection is required around the periphery of a vehicle or machine. Buyers should confirm the firmware/hardware revision (V2.1.0) and Ethernet/UDP interface requirements align with their host system before integration.
