Schneider TAC Xenta 412 Digital Input Module and TAC 2222 Display, 24VAC

LonWorks-based digital input module with LED status indicators, paired with a TAC operator display

Overview

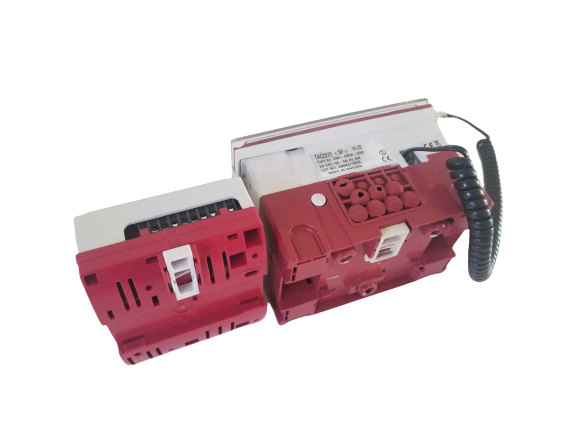

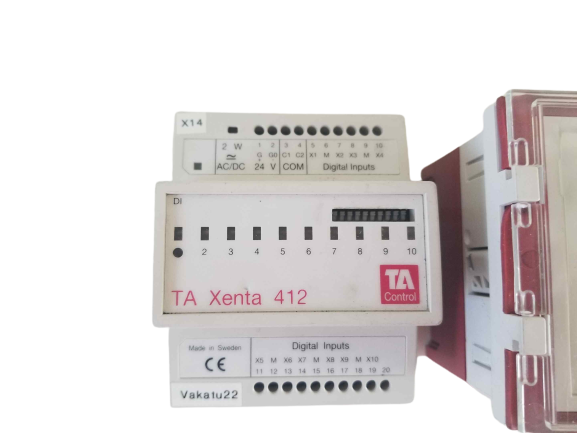

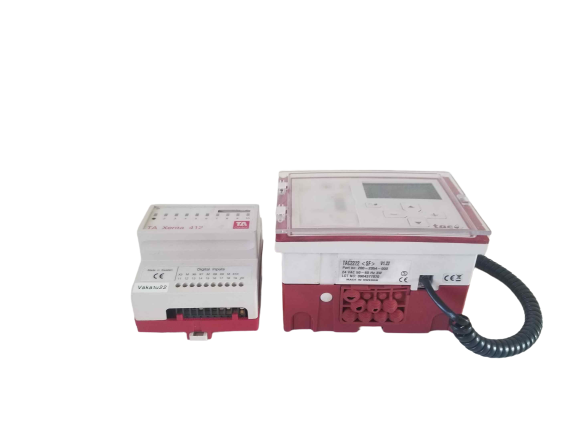

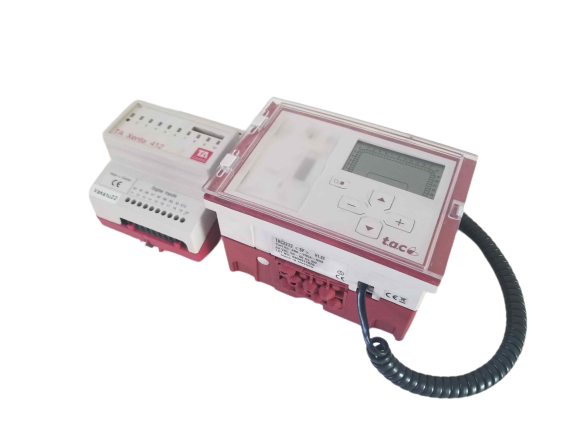

This lot pairs 1x Schneider TAC Xenta 412, a 10-point digital input module for TAC Vista building management systems, with 1x TAC 2222 display unit, 24VAC. The Xenta 412 connects to a TAC Xenta controller via a LonWorks TP/FT-10 network and is configured using the TAC Menta graphical programming tool. It differs from the base TAC Xenta 411 by including onboard LED status indicators for each of its 10 digital inputs, giving direct visual confirmation of input states at the module itself.

Key Features

  • 10 digital inputs: Terminals X1–X10 for dry contact or pulse-type digital signals.
  • Onboard LED status indicators (Xenta 412 only): 10 LEDs, individually selectable as red or green via DIP switch, for local input-state visibility.
  • LonWorks TP/FT-10 network connection: Associated with a TAC Xenta controller using the TAC Menta graphical configuration tool.
  • Flexible power input: Accepts 24V AC ±20% (50/60 Hz) or 19–40V DC, drawing max. 2W.
  • Compact, low-profile enclosure: ABS/PC housing rated IP20, weighing only 0.5 kg.
  • Wide environmental tolerance: Operates 0–50°C, stores -20–50°C, up to 90% RH non-condensing.

What's Included

Model Function Qty
TAC Xenta 412 10-point digital input module with LED indicators 1

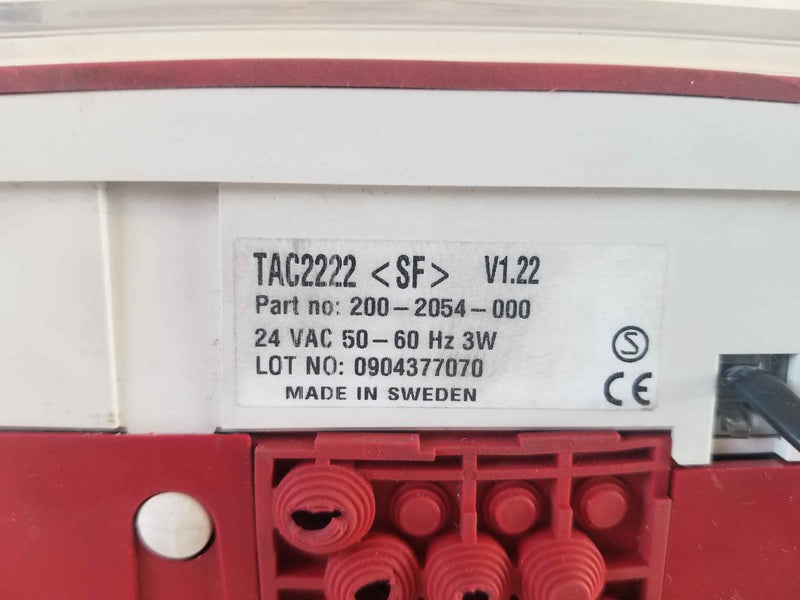

TAC 2222 Operator display, 24VAC 1

Price listed is per lot (both units together).

Technical Specifications — TAC Xenta 412

Supply voltage: 24 V AC ±20%, 50/60 Hz, or 19–40 V DC.

Power consumption: Max. 2 W; transformer sizing 2 VA.

Ambient temperature: Storage -20 to 50°C; operation 0 to 50°C.

Humidity: Max. 90% RH, non-condensing.

Enclosure: ABS/PC housing, IP20 rated.

Weight: 0.5 kg (1.1 lbs).

Digital inputs (X1–X10): Quantity 10; open-contact voltage 33V DC; closed-contact current 4 mA; min. pulse duration 20 ms.

LED digital input indicators: 10 LEDs, selectable red or green via DIP switch (Xenta 412 only).

Compatibility & Applications

Both units are part of Schneider's legacy TAC Vista / TAC Xenta building management system range, well suited to HVAC and building automation installations needing digital input monitoring and local operator display functionality on a LonWorks-based control network.
