Smartec STH-1230S-PSU1 Thermal Camera Housing (Jacket), IP67

Heated, weatherproof outdoor camera housing with built-in power supply for cold-climate installations

Overview

This is a Smartec STH-1230S-PSU1 thermal jacket, a heated, IP67-rated outdoor camera housing designed to protect and maintain a functional temperature range for a mounted camera in cold or variable outdoor climates. Constructed from cast aluminum with a full-opening housing design and integrated sun visor, this jacket includes a built-in heater system, mounting bracket, and power supply, making it suited to demanding outdoor surveillance installations.

Key Features

  • IP67-rated weatherproof housing: Fully protected against dust ingress and temporary immersion in water.
  • Cast aluminum construction: Durable housing with full opening access for easy camera installation and maintenance.
  • Integrated heating system: Available in versions with one or two heaters, automatically switching on at +18°C and off at +28°C to maintain safe operating conditions.
  • Wide working temperature range: Rated for -40°C to +50°C operation.
  • Built-in power supply: Includes a 220V AC to 12V DC, 1A power supply, with an optional 24VAC/12VDC heater configuration.
  • Integrated sun visor: Helps shield the camera lens from direct sunlight and glare.
  • Convenient rear terminal block: Simplifies wiring access during installation and maintenance.

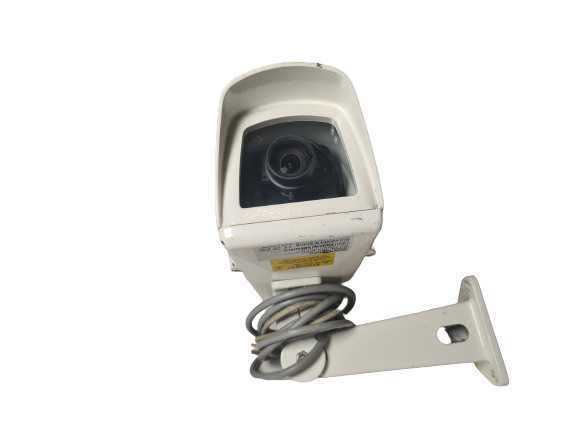

  • Included mounting bracket: Comes with a bracket featuring partial cable feedthrough for tidy cable management.
  • 12V DC camera power supply option: Available in versions that also supply 12V DC power to the mounted camera.

What's Included

Model Function Qty
STH-1230S-PSU1 Heated outdoor camera housing (thermal jacket) with bracket 1

Model: STH-1230S-PSU1 | Brand: Smartec | Protection: IP67 | Includes Mounting Bracket

Technical Specifications

Product type: STH-1230S-PSU1, heated outdoor camera housing (thermal jacket).

Degree of protection: IP67.

Housing material: Cast aluminum.

Design features: Full opening housing, integrated sun visor, rear terminal block, included bracket with partial cable feedthrough.

Heater versions: Available with one or two heaters; heater switching at +18°C (on) and +28°C (off).

Heater power option: 24 VAC/12 VDC.

Camera power supply option: 12V DC.

Working temperature range: -40°C to +50°C.

Built-in power supply: 220V AC to 12V DC, 1A.

Enclosure power: 230V AC (24VAC/12VDC option available).

Usable space (W x H x D): 90 x 70 x 240 mm.

Compatibility & Applications

This housing is suited to outdoor security camera installations in cold or variable-temperature climates, protecting the camera from weather while maintaining a functional operating temperature through built-in heating. Buyers should confirm their camera fits within the 90 x 70 x 240 mm usable space and that their power supply matches the desired configuration (built-in 220V AC/12V DC, or the 24VAC/12VDC heater option) before installation.
