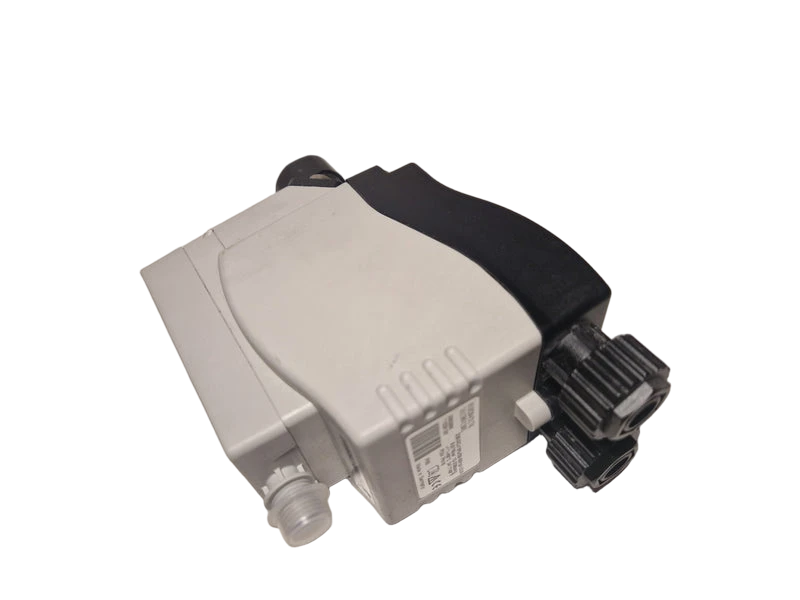

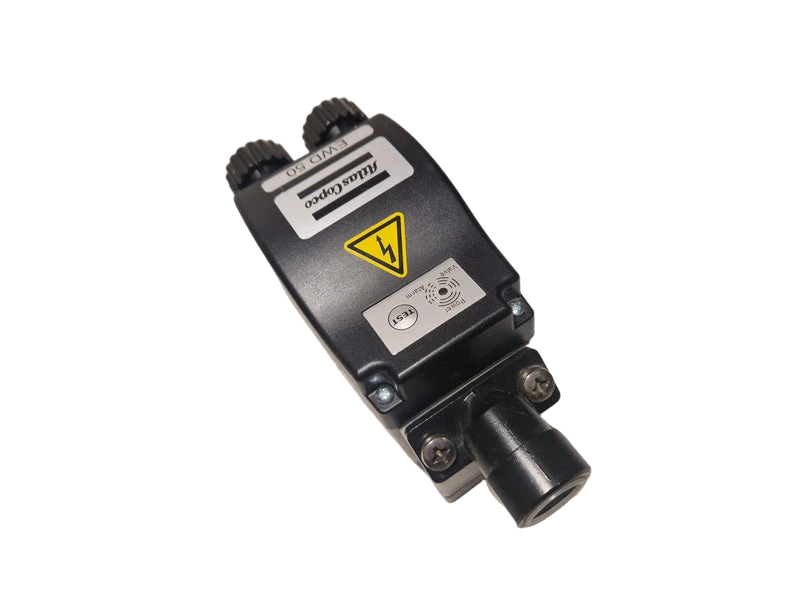

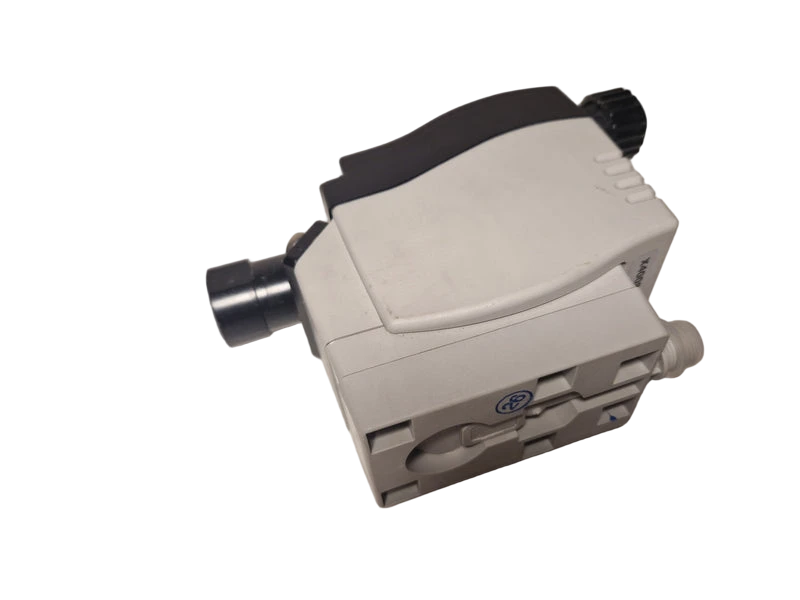

Atlas Copco EWD 50 Zero Loss Electronic Condensate Drain, 230VAC — Part No. 8102043174

Intelligent electronic drain valve for compressed air systems

Overview

This is an Atlas Copco EWD 50, a Zero Loss electronic condensate drain valve, Part No. 8102043174, built to remove condensate from compressed air systems without wasting compressed air. Using liquid level sensors, it monitors condensate build-up and only opens to drain when needed, rather than venting on a fixed timer — protecting downstream equipment from water damage while avoiding the energy losses associated with conventional timer-based or solenoid drains.

Key Features

  • Zero Loss drainage: Liquid level sensors trigger drainage only when condensate reaches a set level, avoiding any loss of compressed air during operation.
  • Wide drain passageway: Reduces the chance of blockages compared to narrower conventional drain valves.
  • Level sensor alarm: Detects abnormal conditions and can activate an alarm, supporting proactive maintenance.
  • Broad application coverage: Suitable for draining pressure tanks, refrigerated air dryers, pneumatic installations, air filters, and separators.
  • Durable POM construction: Robust build with an IP65 rating (PN16) for reliable operation in industrial compressed air rooms.

What's Included

Model Function Qty
EWD 50 Zero Loss electronic condensate drain valve 1

Part No.: 8102043174

Technical Specifications

Voltage / power: 230VAC ±10%, 50-60 Hz, <3VA power consumption.

Working pressure: 0.8 to 16 bar (12–230 psig).

Operating temperature: +1°C to +60°C (34°F to 140°F).

Construction / protection: POM housing, PN16, IP65 rated.

Weight: Approx. 650 g.

Compatibility & Applications

The EWD 50 is suited to compressed air systems, filters, dryers, and receivers across a range of industrial settings, ideal for air compressors up to roughly 138 cfm and air dryers up to roughly 275 cfm. It's commonly used to protect downstream equipment from water accumulation while reducing energy costs associated with air loss during condensate removal.
