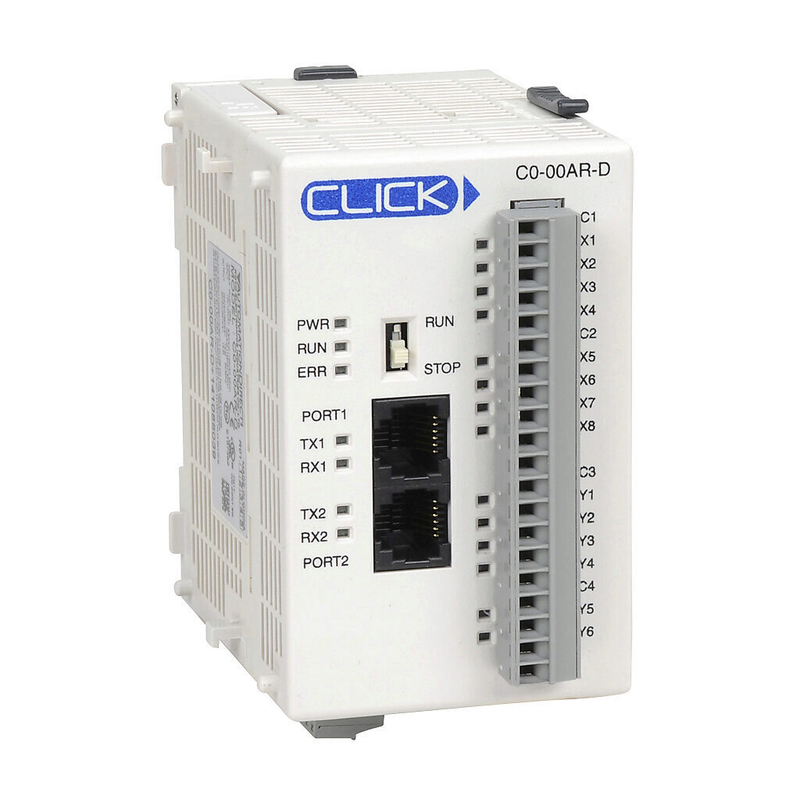

CLICK Basic PLC, 24 VDC required, serial ports, Discrete Input: 8-point, AC, Discrete Output: 6-point, relay.

CLICK Basic PLC, 24 VDC, 8-Point AC Discrete Input / 6-Point Relay Output, Serial Ports

Compact, cost-effective programmable logic controller for small-scale automation applications

Overview

This is a CLICK Basic PLC, a cost-effective, compact, and easy-to-use programmable logic controller designed for a wide range of automation applications. It offers essential features for efficient control and monitoring in small-scale systems, with 8-point AC discrete inputs, 6-point relay outputs, and dual RS-232 serial ports for programming and communication.

Key Features

  • Power supply: Requires 24 VDC external power input.
  • Discrete inputs: 8-point AC discrete inputs with a nominal voltage of 120 VAC.
  • Discrete outputs: 6-point relay outputs supporting 6-240 VAC or 6-27 VDC, with a load current of 1A per point.
  • Communication: (2) RS-232 (RJ12) ports supporting Modbus RTU Master/Slave, ASCII In/Out, programming, and monitoring at speeds up to 115.2k baud.
  • Programming: Ladder logic programming via CLICK programming software v1.00 or later.
  • Expansion capability: Supports up to 8 expansion modules for added flexibility.
  • Accessories: Includes a removable terminal block for easy wiring and maintenance.

What's Included

Model Function Qty
CLICK Basic PLC Programmable logic controller with removable terminal block 1

Brand: CLICK | Part Status: Active

Technical Specifications

Power supply: 24 VDC required.

Discrete inputs: 8-point, AC, 120 VAC nominal, 2 isolated commons with 4 points per common.

Discrete outputs: 6-point relay, 6-240 VAC or 6-27 VDC, 1A load current per point, 2 isolated commons with 4 and 2 points per common, (6) Form A (SPST) relays.

Communication ports: (2) RS-232 (RJ12), Modbus RTU Master/Slave, ASCII In/Out, programming and monitoring, up to 115.2k baud.

Programming language: Ladder logic, via CLICK programming software v1.00 or later.

Memory: 8k steps ladder memory, 16 KB user data memory.

Real-time clock/calendar: Not included.

Retentive memory & backup: Not included; no battery backup.

Applications: Small-scale automation projects, equipment monitoring and control, industrial and commercial process management.

Compatibility & Applications

This CLICK Basic PLC is well suited to small-scale automation projects, equipment monitoring, and industrial or commercial process management requiring economical, flexible, and expandable control. Buyers should confirm the 24 VDC power requirement and I/O voltage compatibility with their existing system before integration.
