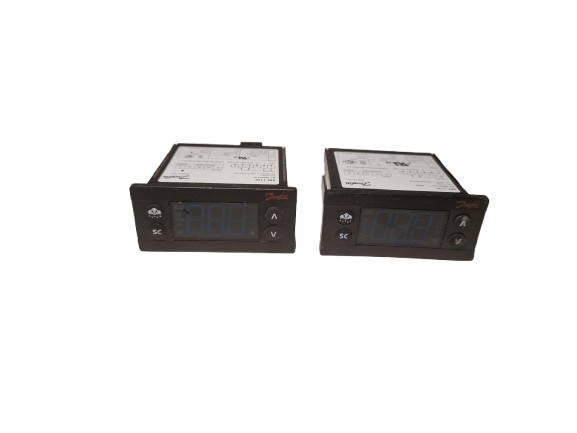

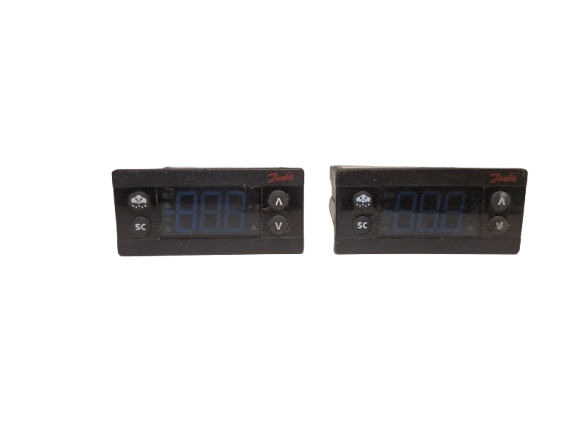

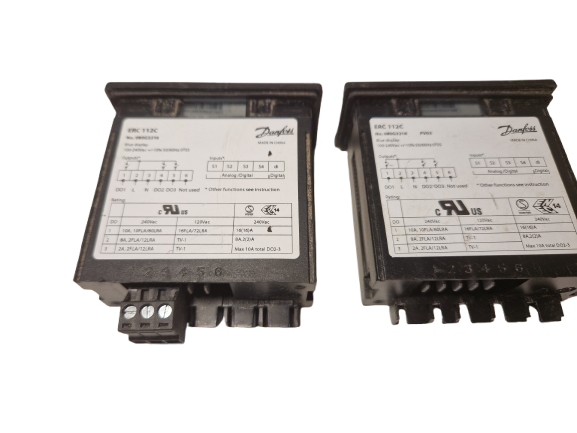

Danfoss ERC 112C Refrigeration Controller — 080G3494, 100-240V

Unprogrammed electronic controller for glass door merchandisers and commercial refrigeration

Overview

This is a Danfoss ERC 112C, Part No. 080G3494, an ADAP-KOOL electronic refrigeration controller developed for beverage cabinets, glass door merchandisers, and commercial refrigerators and freezers. It runs on a wide 100-240V AC switch-mode power supply and features four relay outputs alongside five inputs (four analogue/digital plus one digital), giving it the flexibility to manage compressor, defrost, fan, and lighting control on a single unit. This unit ships unprogrammed, with a blue display preset to Centigrade (changeable to Fahrenheit), and includes a detachable, replaceable snap-on face cover.

Key Features

  • Universal voltage input: Operates across 100-240V AC (±10%, 50/60 Hz), suited to a wide range of regional power supplies.
  • Five flexible inputs: Four analogue/digital inputs plus one digital input, user-assignable for air, evaporator, or condenser temperature sensing, door sensor, light sensor (Danfoss ECO), or motion sensor.
  • Four relay outputs: DO1 compressor relay (16A resistive at 120V / 10A at 240V), plus three additional 8A-rated outputs (DO4, DO5, DO6) for defrost, fan, or lighting control.
  • Low power consumption: Averages just 0.7W in standby operation.
  • Unprogrammed, personalizable configuration: Ships without a preloaded application, with programming information available to configure the controller for the specific installation.
  • Detachable snap-on face cover: Removable and replaceable cover for the display and keypad, sold detached.

What's Included

Model Function Qty
ERC 112C (080G3494) Electronic refrigeration controller, unprogrammed 1

Weight: 0.49 lbs (0.22 kg) | UPC-EAN: 5715162507834 | Sensors not included

Technical Specifications

Power supply: 100-240V AC ±10%, 50/60 Hz, switch-mode; avg. 0.7W consumption.

Inputs: 4 analogue/digital + 1 digital (5 total), user-assignable.

Outputs: DO1 (compressor) 16A@120V / 10A@240V resistive; DO4/DO5/DO6 8A resistive, 2(2)A each.

Display: Blue, preset to Centigrade (switchable to Fahrenheit).

Compliance: UL60730, EN60730.

Compatibility & Applications

Part of Danfoss's ADAP-KOOL ERC 111A/112C-D/113C-D family, this controller is well suited to glass door merchandisers, commercial fridges and freezers, and other beverage cooling applications requiring flexible multi-input, multi-output control from a single compact unit.
