Danfoss VLT HVAC Basic Drive, 0.75kW (1.0 HP), 3x380-480V, IP20 Frequency Converter, P/N: 131L9862

€200,00
€200,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Danfoss-VLT-HVAC-view-1Danfoss-VLT-HVAC-view-2Danfoss-VLT-HVAC-view-3Danfoss-VLT-HVAC-view-4Danfoss-VLT-HVAC-view-5Danfoss-VLT-HVAC-view-6Danfoss-VLT-HVAC-view-7Danfoss-VLT-HVAC-view-8Danfoss-VLT-HVAC-view-9Danfoss-VLT-HVAC-view-11Danfoss-VLT-HVAC-view-12Danfoss-VLT-HVAC-view-13

Danfoss VLT HVAC Basic Drive — 0.75 kW (1.0 HP), 3x380-480V, IP20 Frequency Converter

Compact frequency converter for basic fan, pump, and compressor control in HVAC systems

Overview

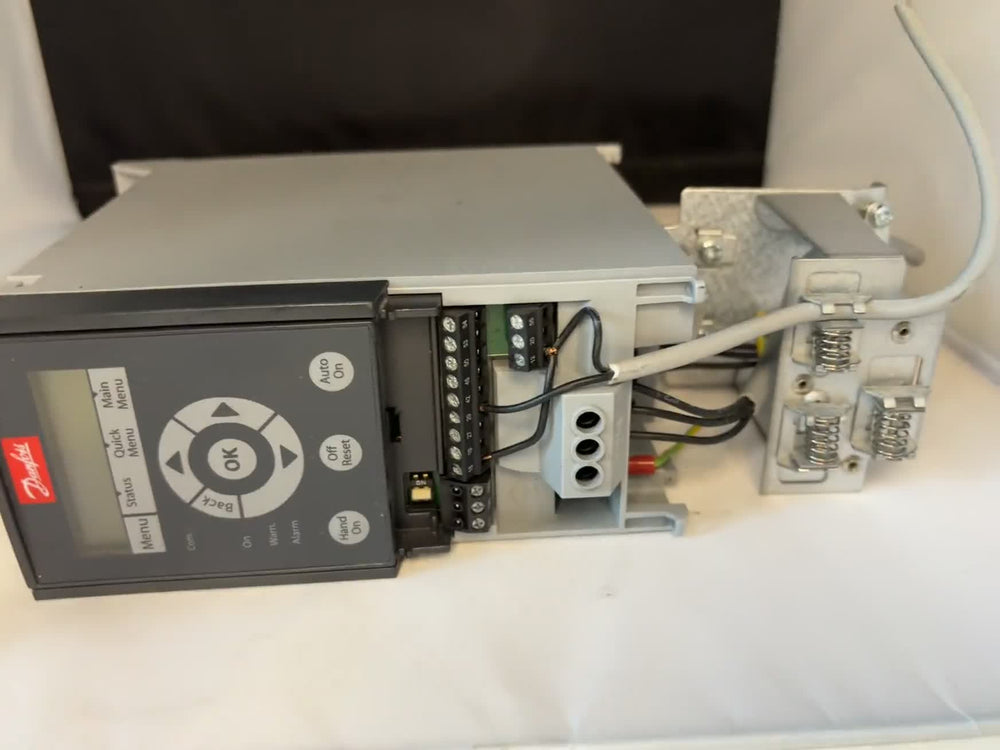

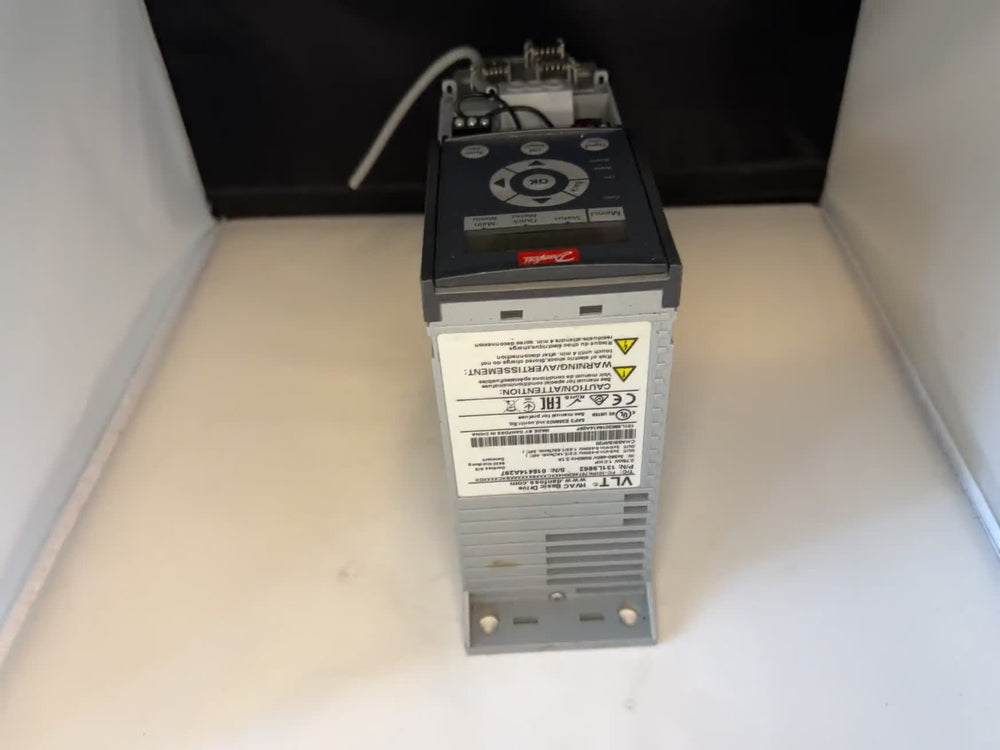

This is a Danfoss VLT HVAC Basic Drive FC 101, P/N 131L9862, a compact frequency converter purpose-built for basic operation of fans, pumps, and compressors in HVAC applications. It efficiently controls both induction and permanent-magnet motors without requiring a change of motor type when retrofitting, and integrated DC coils reduce electrical harmonics without the extra cost or space of external filtering devices. As the entry-level model in Danfoss's VLT HVAC drive range, it's built to keep installation and commissioning simple while still delivering the reliability the VLT platform is known for.

Key Features

  • Significant energy savings: Reduces energy consumption by controlling motor speed to match actual demand rather than running fans and pumps at fixed speed, with an Automatic Energy Optimizer providing further savings from power-up.
  • Built-in HVAC functionality: Application-specific features for ventilation, heating, and refrigeration systems are integrated directly into the drive, reducing the need for additional external components.
  • Compact, space-saving design: One of the most compact units in its class, simplifying installation inside control panels and equipment cabinets with limited space.
  • Integrated harmonic mitigation: Built-in DC coils reduce harmonic distortion on the supply side, helping meet power-quality requirements without extra hardware.
  • Power loss ride-through: Integrated ride-through capability helps the drive stay operational through brief voltage dips or interruptions in the incoming supply.
  • Start-up wizard: A guided commissioning wizard steps through regional settings, grid type, and motor setup to simplify first-time configuration.

What's Included

Model Function Qty
VLT HVAC Basic Drive FC 101 Frequency converter, 0.75 kW, HVAC fan/pump control 1

P/N: 131L9862 | Type Code: FC-101PK75T4E20H4XXCXXXXAXBXCXXXXDX

Technical Specifications

Power rating: 0.75 kW (1.0 HP).

Input: 3x 380–480V, 50/60 Hz, 2.1A.

Output: 3x 0–Vin, 0–400 Hz.

Enclosure rating: IP20 / Chassis.

Motor compatibility: Induction and permanent-magnet (PM) motors, across the full power range without motor-type changeover.

Compliance: CE marked, UL listed, RoHS compliant, EAC.

Compatibility & Applications

This drive is optimized for basic fan, pump, and compressor operation within HVAC systems — including ventilation, heating, and refrigeration equipment — and integrates easily with central building management systems. It's a common choice for air handling units, exhaust fans, and circulation pumps where variable-speed control is used to match airflow or fluid flow to actual demand, reducing energy use compared to fixed-speed operation.
