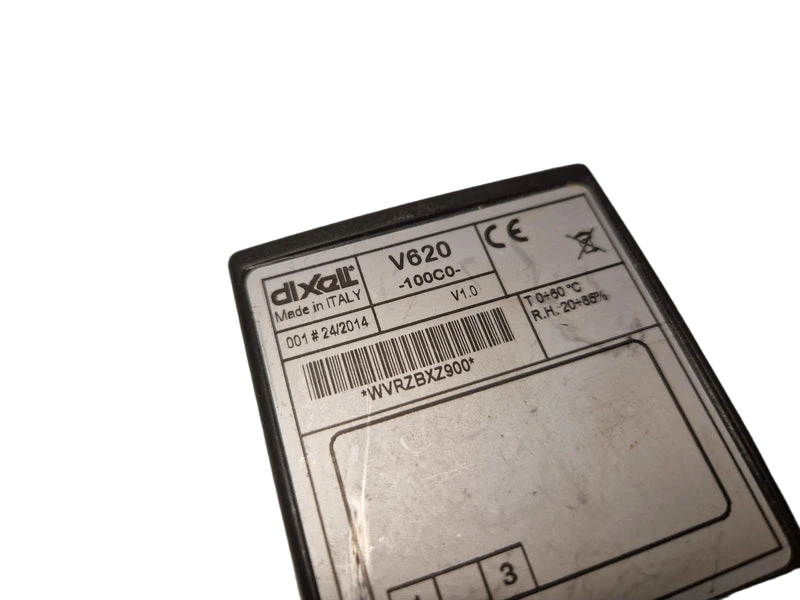

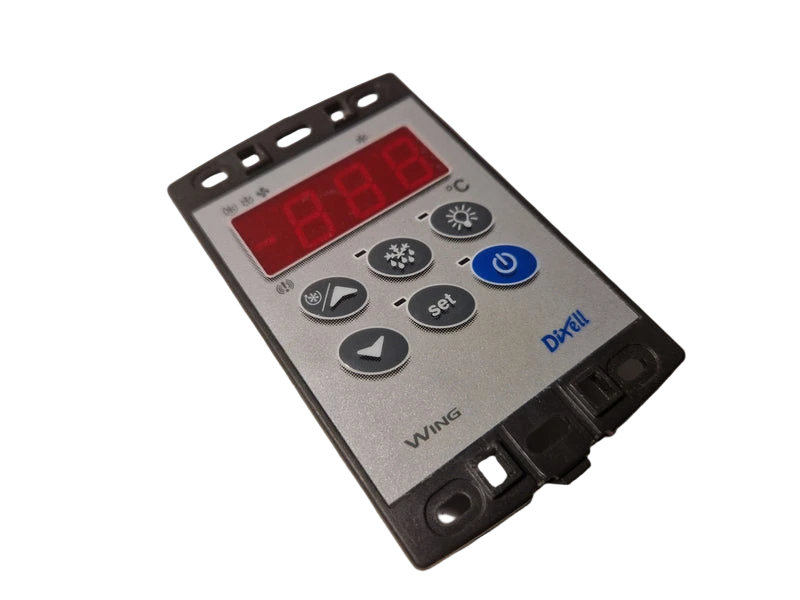

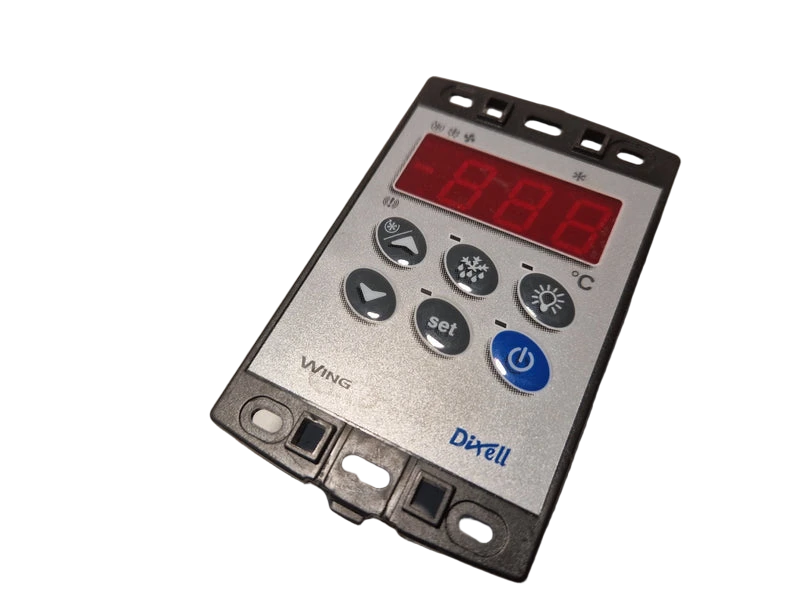

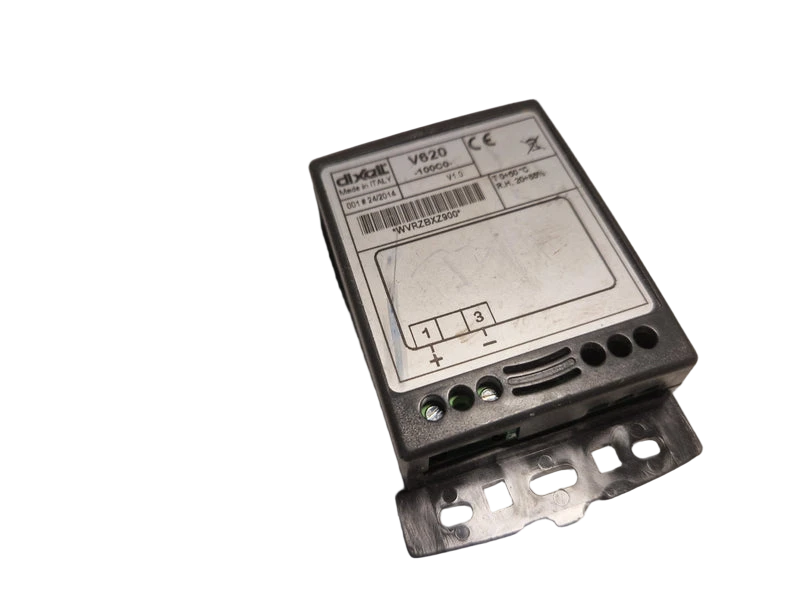

Dixell V620-000C0 Remote Display/Keypad Unit

Vertical wing keyboard/display module for Dixell temperature controllers

Overview

This is a Dixell V620-000C0, a remote display and 6-button keyboard unit that acts as a slave module for compatible Dixell temperature controllers (such as the XW20K, XW40K, XW60K, and XW70K series). It provides a 3-digit red LED display and physical keypad for local monitoring and adjustment of a connected controller, mounted separately from the main control unit in a vertical wing panel cut-out.

Key Features

  • 3-digit LED display: 14.2mm high red LED digits for clear temperature or parameter readout.
  • 6-button keyboard: Physical push-button interface for local control and parameter adjustment of the connected master controller.
  • Slave module design: Connects to compatible Dixell XW20K/XW40K/XW60K/XW70K master controllers, allowing the display/keypad to be mounted separately from the controller body.
  • Non-volatile data storage: Retains configuration data on EEPROM memory, preserving settings through power loss.
  • Sealed vertical wing housing: IP65-rated protection suited to harsh commercial refrigeration and food-service environments.
  • Compact panel mounting: Fits a 56x72mm panel cut-out, secured with two screws.

What's Included

Model Function Qty
V620-000C0 Remote display/keypad unit for Dixell controllers 1

Technical Specifications

Display: 3 digits, red LED, 14.2mm high.

Keyboard: 6 push buttons.

Power supply: From connected master controller, or 24/110/230V AC direct (model dependent); 10 VA max power absorption.

Connections: Screw terminal block (<2.5mm²) and 6.3mm Faston connectors.

Mounting: 56x72mm panel cut-out, secured with two screws.

Protection rating: IP65.

Operating / storage temperature: 0°C to 60°C operating; -30°C to 85°C storage; 20-85% RH non-condensing.

Compatibility & Applications

Compatible as a slave module with Dixell's XW20K, XW40K, XW60K, and XW70K controller series, this keypad/display unit is used in commercial refrigeration and food-service equipment where the operator interface needs to be mounted separately from the main controller — such as on a visible cabinet panel while the controller itself sits elsewhere in the installation.
