Mitsubishi S500 FR-S540-2.2K-EC Frequency Inverter, 2.2kW, 400V

Compact three-phase VFD for general-purpose motor speed control

Overview

This is a Mitsubishi FR-S540-2.2K-EC, a 2.2kW variable frequency drive from Mitsubishi's FR-S500 series, built for three-phase 400V class motor control applications. Compact and simple to operate, it provides both local digital control and built-in RS-485 serial communication for remote operation, making it well suited to general-purpose motor speed control in industrial and machinery applications.

Key Features

  • Compact, space-saving design: Small footprint suited to panel and machine-mounted installations with limited space.
  • Built-in RS-485 communication: Standard serial communication interface for remote monitoring and control without additional hardware.
  • Wide output frequency range: Variable output from 0.5 to 120 Hz, giving flexible motor speed control across a broad operating range.
  • Dual-frequency mains compatibility: Accepts both 50 Hz and 60 Hz three-phase AC input, suited to installations across different regional power standards.
  • DIN-rail mounting option: Compatible with optional DIN rail mounting adapters for tidy control cabinet installation.
  • Simple parameter-based setup: Straightforward configuration through built-in digital controls, keeping commissioning quick and cost-effective.

What's Included

Model Function Qty
FR-S540-2.2K-EC Three-phase frequency inverter, 2.2kW 1

Technical Specifications

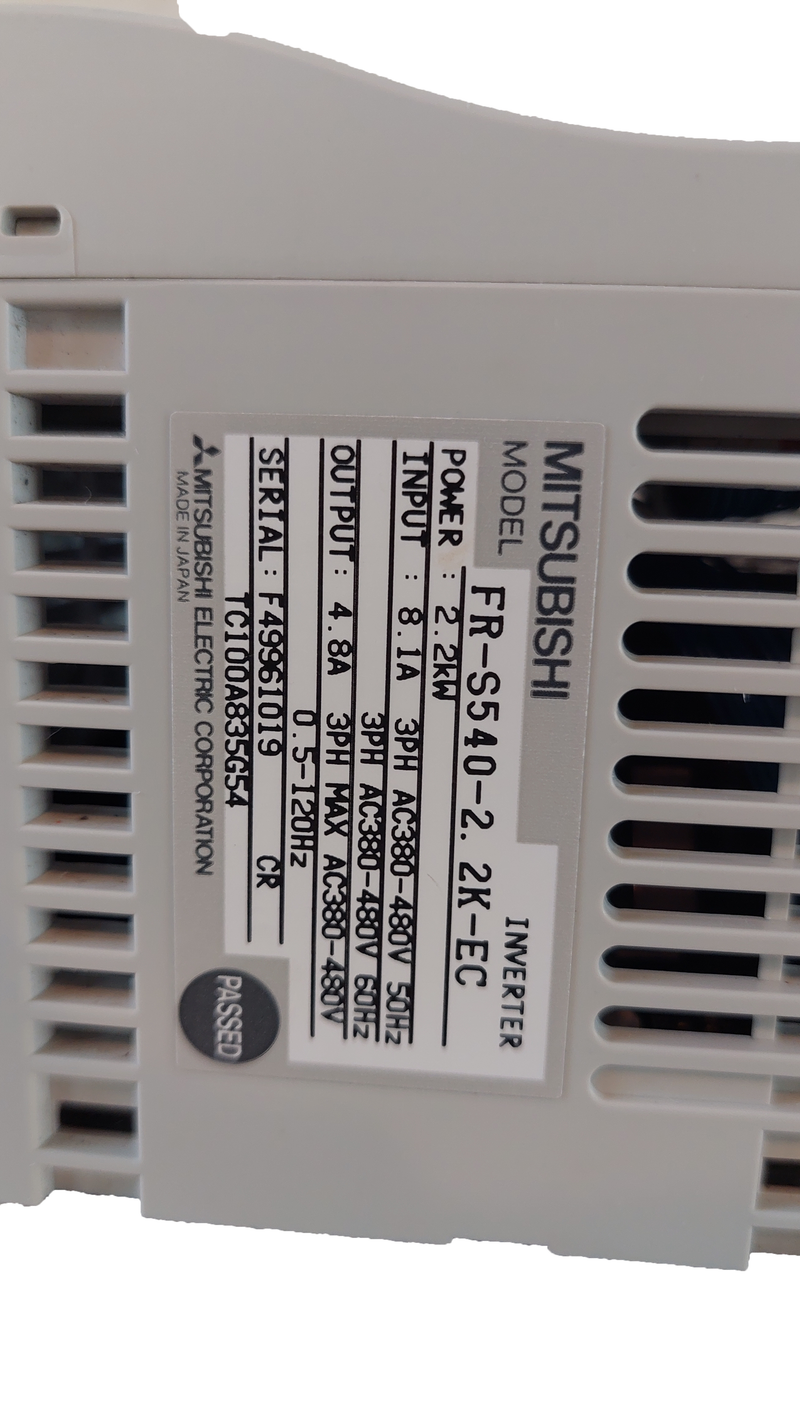

Applied motor capacity: 2.2 kW.

Input: 3-phase AC 380–480V, 8.1A, 50/60 Hz.

Output: 3-phase AC 380–480V max., 4.8A, 0.5–120 Hz.

Communication: Built-in RS-485.

Enclosure: IP20.

Compatibility & Applications

Part of Mitsubishi's FR-S500 series of general-purpose inverters, the FR-S540-2.2K-EC is well suited to pumps, fans, conveyors, and other three-phase motor applications requiring variable speed control. Its RS-485 communication interface allows integration into PLC-based or centralized monitoring systems for coordinated multi-drive control.
