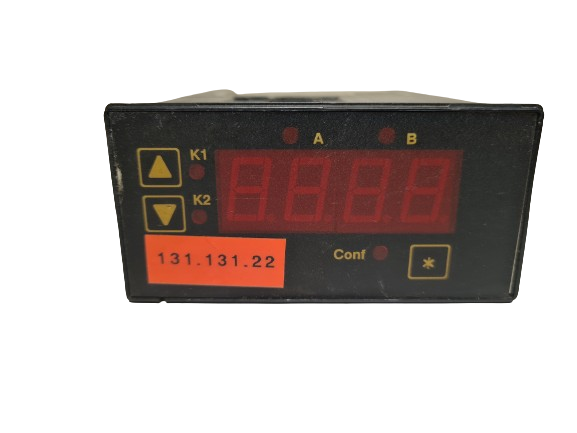

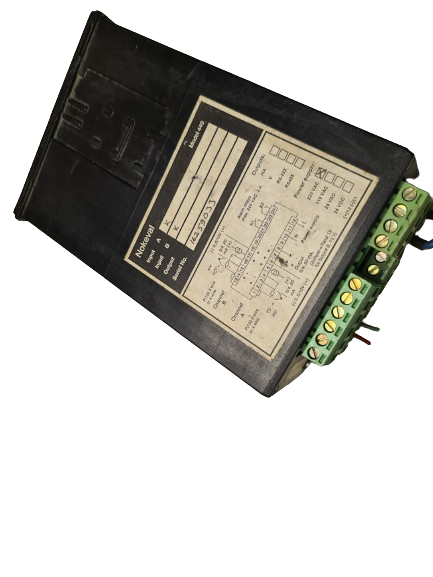

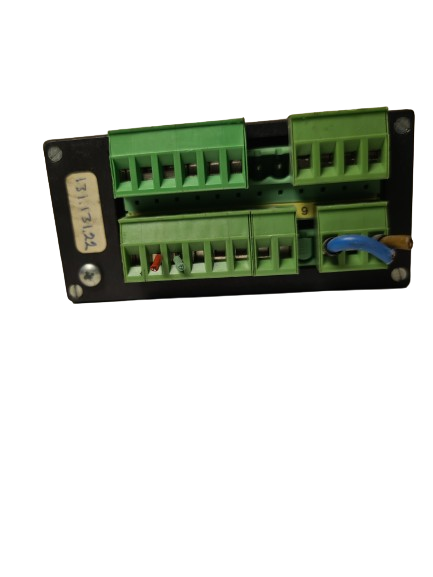

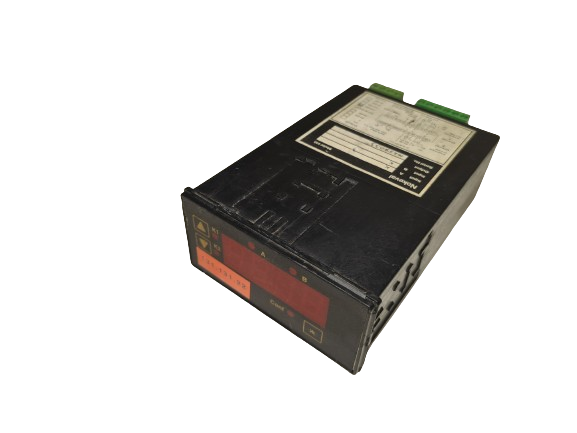

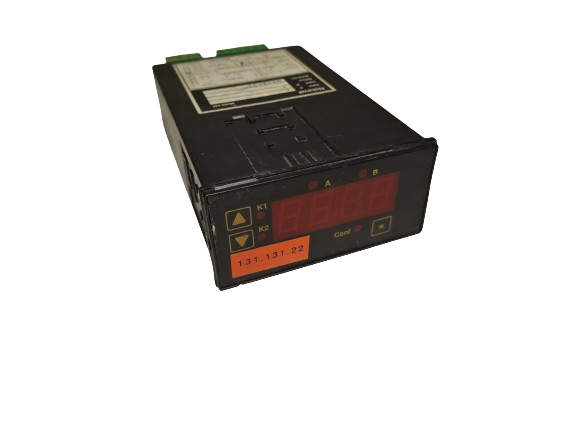

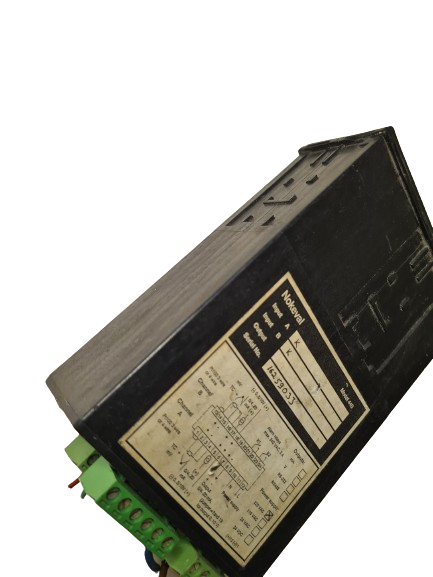

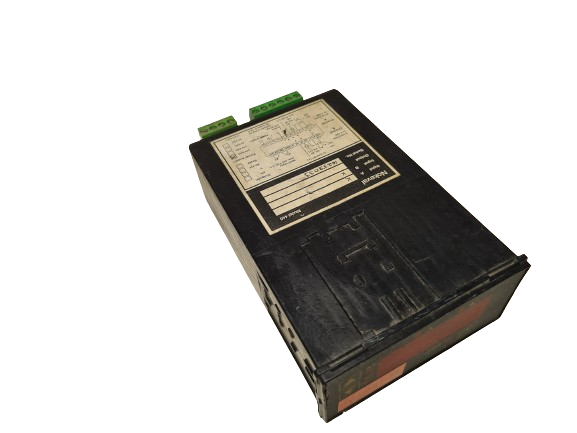

Nokeval 440 Panel Meter, 14.5 mm Display

Dual-channel programmable process indicator with multi-signal input and galvanically isolated output

Overview

This is a Nokeval Panelmeter 440 with a 14.5 mm display, a versatile dual-channel process indicator designed for a wide range of industrial measurement applications. With extensive input compatibility, programmable front-panel settings, and galvanically isolated output, it delivers accurate and flexible signal monitoring and conversion.

Key Features

  • 2 input channels: Supports Pt100 inputs, thermocouples, 0/4-20 mA, 0-10V, potentiometers, and 20-1000 mV signals.
  • Programmable configuration: Input and output settings programmable directly on the front panel, with individual settings per channel.
  • Galvanically isolated output: 0/4-20 mA or 0-10 V isolated output for reliable signal transmission.
  • Built-in alarms: 2 alarms included as standard.
  • Math functions: Supports mathematical operations between channels.
  • High accuracy: Accuracy of 0.05-0.1%.

What's Included

Model Function Qty
440 (14.5 mm display) Dual-channel panel meter / process indicator 1

Brand: Nokeval | Part Status: Active

Technical Specifications

Display: 14.5 mm.

Input channels: 2 (Pt100, thermocouples, 0/4-20 mA, 0-10V, potentiometers, 20-1000 mV).

Output signal ranges: 0-20 mA, 4-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC.

Voltage input scalable ranges: 0-1, 0-5, 1-5, 0-10 VDC.

Accuracy: 0.05-0.1%.

Case dimensions: 48 x 96 x 145 mm or 72 x 144 x 145 mm.

Operating temperature: -5°C to +50°C.

Storage temperature: -40°C to +70°C.

Weight: 500 g.

Compatibility & Applications

This panel meter is well suited to industrial process measurement and control applications requiring flexible sensor input, alarm functionality, and channel-to-channel math operations. Buyers should confirm the required input signal type and case size match their panel cutout before installation.
