Phoenix Contact Repeater 2313096 PSI-REP-RS485W2

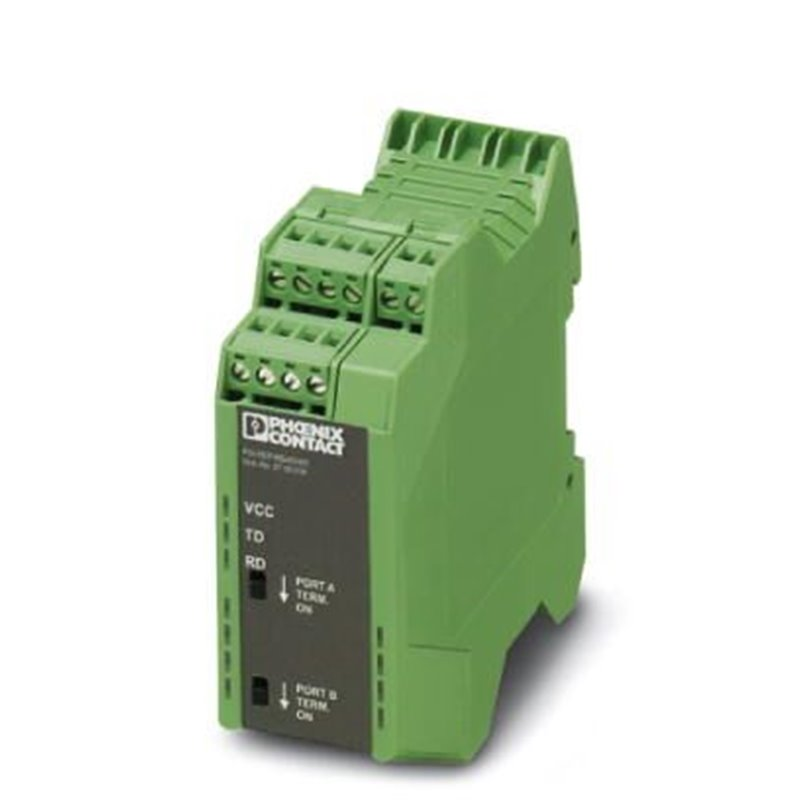

Phoenix Contact Repeater PSI-REP-RS485W2 — Part No. 2313096

Isolating RS-485 2-wire bus repeater for extended-range industrial communication

Overview

This is a Phoenix Contact PSI-REP-RS485W2, Part No. 2313096, a modular repeater built to provide electrical isolation and extend the range of RS-485 2-wire bus systems. It regenerates weakened data signals and electrically isolates bus segments from one another, helping maintain stable, error-free communication across longer distances in demanding industrial environments.

Key Features

  • Extended communication range: Regenerates the RS-485 signal to increase overall network reach, with transmission length of up to 1,200 m depending on the transmission speed, bus system, and cable type used.
  • 4-way electrical isolation: Provides strong protection against voltage surges and ground loops between connected bus segments.
  • Manually selectable transmission speed: Supports 4.8 up to 500 kbps, selectable across 12 discrete standard rates to match the specific bus configuration.
  • Two half-duplex transmission channels: Two independent RS-485 (TD/RD) channels for flexible network segmentation.
  • Pluggable screw connection terminals: Accepts 0.2–2.5 mm² conductors, with a built-in 390 Ω switchable termination resistor.
  • Hazardous location approvals: ATEX and IECEx certified (II 3 G Ex ec IIC T5 Gc) and UL-listed for Class I, Zone 2 hazardous locations, alongside standard CE marking.

What's Included

Model Function Qty
PSI-REP-RS485W2 RS-485 2-wire bus repeater 1

Part No.: 2313096

Technical Specifications

Data interface: RS-485 2-wire, per EIA/TIA-485 and DIN 66259-4.

Transmission speed: 4.8/9.6/19.2/38.4/57.6/75/93.75/115.2/136/187.5/375/500 kbps (manually set).

Transmission length: Up to 1,200 m, depending on transmission speed, bus system, and cable type.

Isolation: 4-way electrical isolation.

Power supply: 24V DC.

Connection: Pluggable screw connection, 0.2–2.5 mm² conductor range.

Environmental / compliance: Operating temperature -20°C to 60°C; storage -40°C to 85°C; humidity 10–95% non-condensing; CE marked; ATEX/IECEx and UL Class I, Zone 2 hazardous-location certified.

Compatibility & Applications

The PSI-REP-RS485W2 integrates into any standard RS-485 2-wire bus network and is well suited to industrial automation networks, process control systems, building automation, factory communication systems, and data acquisition systems that need reliable long-distance communication with strong electrical isolation between segments.
