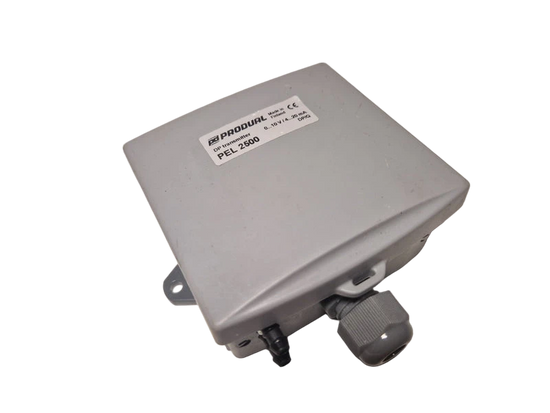

Produal PEL 2500 Differential Pressure Transmitter, Air, 0-10V, 8 Pressure Ranges

Versatile differential air pressure sensor with multiple selectable measurement ranges

Overview

The Produal PEL 2500 is a versatile and reliable differential pressure sensor, ideal for applications requiring precise air pressure measurements. With multiple measurement ranges and customizable options, it meets a wide range of needs in various environments.

Key Features

  • Measurement ranges: ±100 Pa, 0...100 Pa, 0...200 Pa, 0...500 Pa, 0...1000 Pa, 0...2000 Pa, 0...2500 Pa; customizable ranges available.
  • Accuracy: ±3 Pa ±1% of reading (at 25°C).
  • Time constant: 2 seconds or 8 seconds (selectable).
  • Voltage output options: 0...10 V, 2...10 V, 0...5 V.
  • Maximum allowed pressure: 13 kPa.
  • Zeroing: Automatic reset to prevent zero drift.

What's Included

Model Function Qty
PEL 2500 Differential Pressure Transmitter 1

Brand: Produal | Part Status: Active

Technical Specifications

Power supply: 24 Vac/dc, <2 VA.

IP protection class: IP54 (cable-down configuration).

Cable gland: M16 for secure connections.

Ambient temperature range: 0...45°C.

Ambient humidity: 0...95% relative humidity (non-condensing).

Product dimensions: 105 x 102 x 46 mm.

Mounting: Designed for easy installation with screws and external lugs.

Compatibility & Applications

This differential pressure transmitter is well suited to air handling and ventilation systems requiring precise, configurable pressure measurement across a range of selectable spans. Buyers should confirm the required pressure range and voltage output option match their control system before integration.
