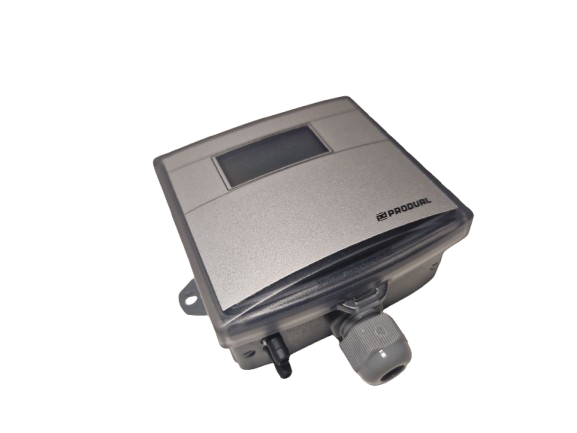

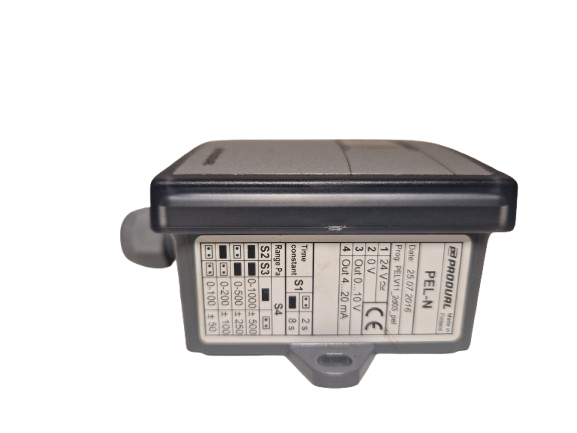

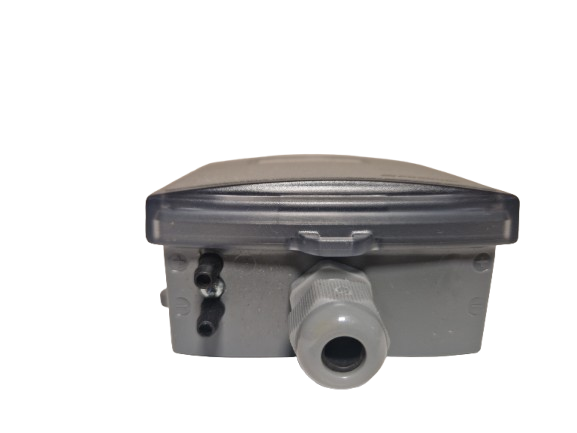

Produal PEL-N Pressure / Differential Pressure Transmitter

Pressure transmitter with temperature compensation and display for air handling systems

Overview

The Produal PEL-N Pressure Transmitter is specifically designed for accurate pressure and differential pressure measurement in air handling systems. Its advanced temperature compensation ensures consistent performance across varying ambient conditions.

Key Features

  • Measuring range: 0...100 Pa, 0...200 Pa, 0...500 Pa, 0...1000 Pa, ±50 Pa, ±100 Pa, ±250 Pa, ±500 Pa.
  • Output signals: Voltage 0...10 V, 2...10 V, 0...5 V (<2 mA); Current 4...20 mA, 0...20 mA (700 Ω load).
  • Zeroing function: Automatic reset prevents zero-point drift, ensuring reliability.
  • Time constant: Adjustable (2 seconds or 8 seconds).
  • Display: Yes, for real-time monitoring.

What's Included

Model Function Qty
PEL-N Pressure Transmitter 1

Brand: Produal | Part Status: Active

Technical Specifications

Power supply: 24 VAC/DC, <2 VA.

IP protection class: IP54 (cable-down configuration).

Cable gland: M16 for robust connections.

Ambient temperature range: 0...45°C.

Mounting: Quick installation with screws and external lugs.

Product dimensions: 105 x 102 x 46 mm.

Compatibility & Applications

This pressure transmitter is well suited to air handling systems requiring accurate pressure and differential pressure measurement with stable performance across varying ambient conditions. Buyers should confirm the required measuring range and output signal type match their control system before integration.
