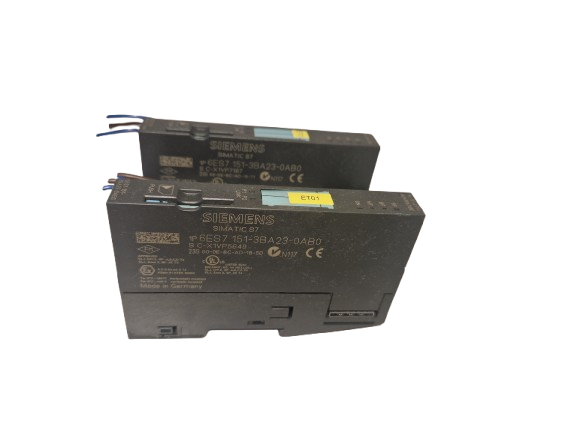

  • 1x Siemens 6ES7151-3BA23-0AB0 Interface Module
1 10

Siemens ET 200S Digital Input, Output, and Interface Module Lot - 25 Pieces

€1.450,00
€1.450,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
1x Siemens 6ES7151-3BA23-0AB0 Interface ModuleSiemens ET 200S Digital Input, Output, and Interface Module Lot - 25 PiecesSiemens ET 200S Digital Input, Output, and Interface Module Lot - 25 PiecesSiemens ET 200S Digital Input, Output, and Interface Module Lot - 25 PiecesSiemens ET 200S Digital Input, Output, and Interface Module Lot - 25 PiecesSiemens ET 200S Digital Input, Output, and Interface Module Lot - 25 PiecesSiemens ET 200S Digital Input, Output, and Interface Module Lot - 25 PiecesSiemens ET 200S Digital Input, Output, and Interface Module Lot - 25 PiecesSiemens ET 200S Digital Input, Output, and Interface Module Lot - 25 Pieces

Siemens ET 200S Digital I/O & Interface Module Lot — 25 Pieces

SIMATIC DP distributed I/O system components: digital I/O, safety I/O, power, and PROFINET interface modules — priced per lot

Overview

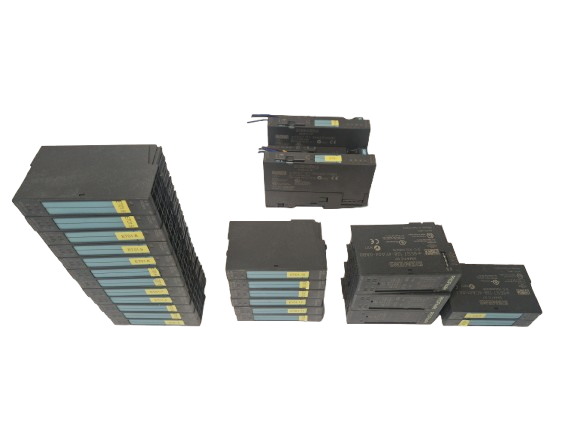

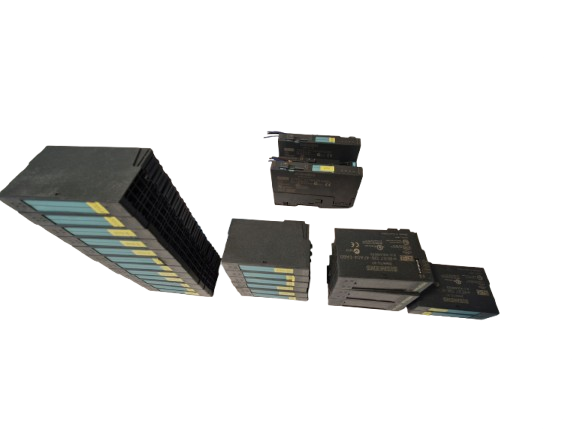

This is a bundled lot of 25 Siemens ET 200S SIMATIC DP modules, covering standard digital input and output modules, fail-safe digital input modules for PROFIsafe applications, power supply modules, and PROFINET interface modules. Together these components form the building blocks of a distributed I/O station used across SIMATIC DP and PROFINET-based automation architectures. Units are used and may show cosmetic scratches or dents on the housing but are functional — buyers should review provided photos carefully. Priced and sold as one complete lot.

Key Features

  • Large mixed-module lot: 25 total ET 200S modules spanning digital input, digital output, fail-safe digital input, power supply, and interface functions.
  • High-feature digital input modules: 4 DI High Feature 24 V DC modules with parameterizable input delay and short-circuit diagnostics via group-fault SF LED, in a compact 15 mm housing width.
  • Standard digital output modules: 4 DO 24 V DC/0.5 A modules in the same 15 mm width footprint for space-efficient panel mounting.
  • Fail-safe PROFIsafe I/O: 4/8 F-DI safety input modules rated up to Performance Level E (ISO 13849) and SIL3 (IEC 61508), usable in PROFINET configurations via IM 151-3 HF.
  • Diagnostic power modules: PM-E power supply modules providing 24 V DC with integrated diagnostics for the I/O station.
  • PROFINET interface modules: IM 151-3 PN HF modules supporting 100 Mbit/s transmission, up to 63 connected I/O modules across up to 2 m of station width, with dual RJ45 bus connections and termination module included.

What's Included

Item Function Qty

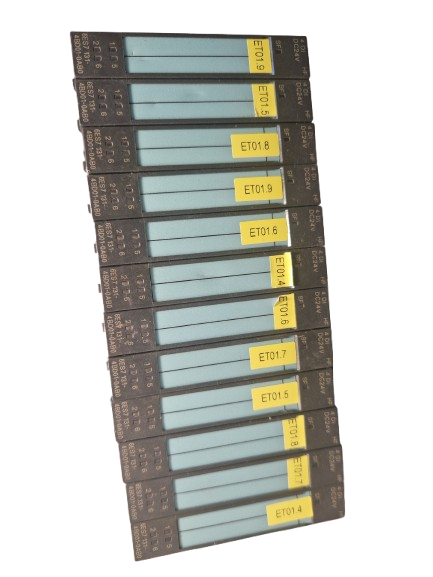

Siemens 6ES7131-4BD01-0AB0 4 DI High Feature, 24 V DC, 15 mm width 12

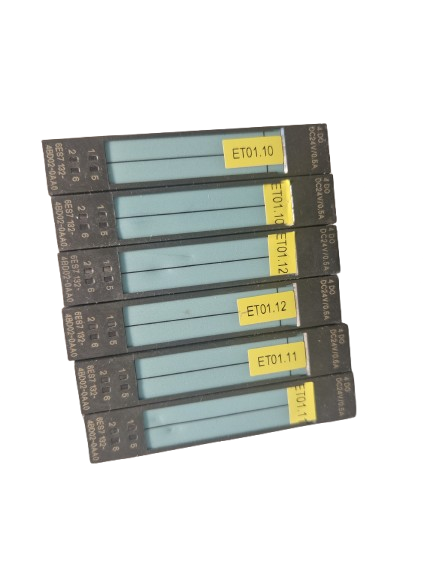

Siemens 6ES7132-4BD02-0BA0 4 DO standard, 24 V DC/0.5 A, 15 mm width 6
Siemens 6ES7138-5FA04-0BA0 4/8 F-DI PROFIsafe, 24 V DC, up to SIL3/PL e 3
Siemens 6ES7138-4CA01-0AA0 PM-E power module, 24 V DC, with diagnostics 2
Siemens 6ES7151-3BA23-0BA0 IM 151-3 PN HF interface module, 100 Mbit/s 2

Series: SIMATIC ET 200S | Total modules in lot: 25

Condition note (L1): units may show scratches or dents to the housing surface but remain functional. Please review photos carefully and reach out with any questions before bidding. Price listed is per complete lot, not per individual module.

Technical Specifications

6ES7131-4BD01-0AB0: SIMATIC DP electronics module for ET 200S; 4 DI High Feature, 24 V DC; 15 mm width; parameterizable input delay; short-circuit diagnostics with group-fault SF LED; 5 units per packing unit.

6ES7132-4BD02-0BA0: SIMATIC DP electronics module for ET 200S; 4 DO standard, 24 V DC/0.5 A; 15 mm width; 5 units per packing unit.

6ES7138-5FA04-0BA0: SIMATIC DP electronics module for ET 200S; 4/8 F-DI PROFIsafe, 24 V DC; 30 mm overall width; up to Performance Level e (ISO 13849) and SIL3 (IEC 61508); compatible with PROFINET configuration via IM 151-3 HF.

6ES7138-4CA01-0AA0: SIMATIC DP PM-E power module for ET 200S; 24 V DC with integrated diagnostics.

6ES7151-3BA23-0BA0: SIMATIC DP interface module IM 151-3 PN HF for ET 200S; transmission rate 100 Mbit/s; supports up to 63 connected I/O modules across up to 2 m of width; two bus connections via RJ45 including termination module.

Compatibility & Applications

This lot is compatible with Siemens SIMATIC ET 200S distributed I/O stations operating over PROFIBUS DP or PROFINET (via the included IM 151-3 PN HF interface modules). It is well suited for machine builders, panel integrators, and maintenance teams looking to expand, repair, or maintain existing ET 200S installations — including applications requiring PROFIsafe-rated fail-safe I/O for functional safety compliance up to SIL3/PL e. The mix of standard and safety-rated modules also makes this lot useful as spare/replacement stock for facilities running Siemens-based automation systems.
