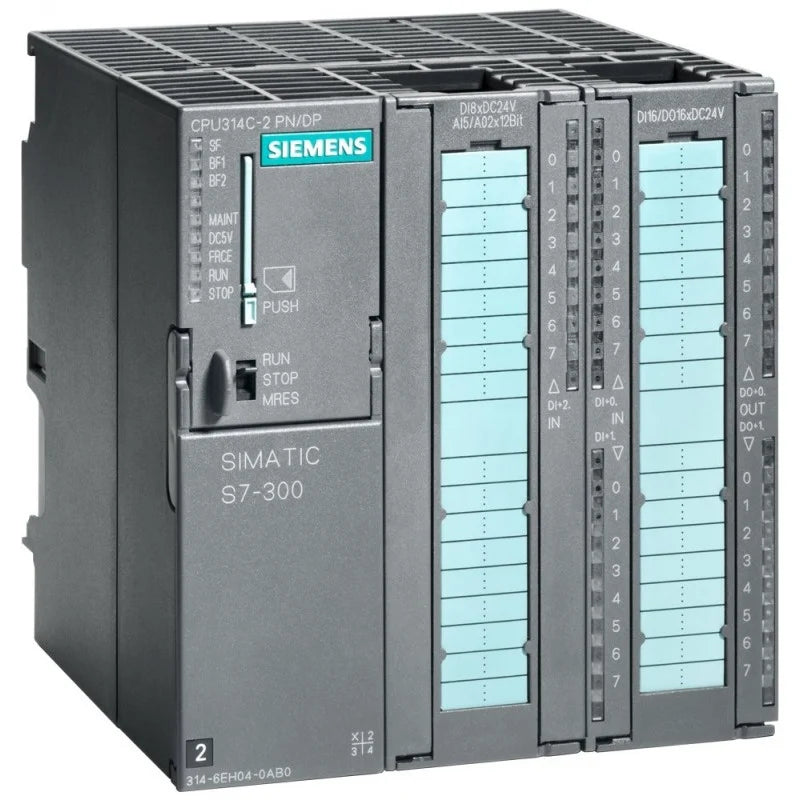

Siemens 6ES7314-6EH04-0AB0 SIMATIC S7-300, CPU 314C-2PN/DP

Siemens 6ES7314-6EH04-0AB0 SIMATIC S7-300 CPU 314C-2PN/DP Compact CPU

Compact CPU with integrated I/O, PROFINET, and PROFIBUS DP for medium-sized automation projects

Overview

This is a Siemens SIMATIC S7-300 CPU 314C-2PN/DP, 6ES7314-6EH04-0AB0, a compact CPU that combines a 192 KB work memory processor with extensive onboard digital and analog I/O, an integrated 24V DC power supply, and dual communication interfaces in a single space-saving unit. Its integrated PROFINET (with 2-port switch) and MPI/DP interfaces make it well suited to medium-sized automation projects that need both local I/O handling and network-level connectivity without additional expansion modules.

Key Features

  • Integrated onboard I/O: Combines CPU and I/O functionality into a compact design with 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs, and a Pt100 temperature input.
  • Dual communication interfaces: MPI/DP at 12 Mbit/s for communication with distributed devices and local controllers, plus Ethernet PROFINET with an integrated 2-port switch for high-speed network integration.
  • High-speed counting: 4 built-in high-speed counters up to 60 kHz for fast pulse and encoder signal processing.
  • Fast processing: Binary instruction processing time of approximately 0.06 ms per 1K instructions.
  • Expandable and flexible: Supports additional modules and Micro Memory Card (MMC) expansion for program storage — an MMC is required for operation.
  • Integrated power supply: Built-in 24V DC power supply simplifies wiring and installation.

What's Included

Model Function Qty
CPU 314C-2PN/DP (6ES7314-6EH04-0AB0) Compact CPU with integrated I/O and dual communication 1

Note: requires a Micro Memory Card (not included) and 2x 40-pole front connectors for operation.

Technical Specifications

Work memory: 192 KB.

Power supply: Integrated 24V DC (19.2–28.8V range).

Interfaces: 1st — MPI/DP, 12 Mbit/s; 2nd — Ethernet PROFINET with integrated 2-port switch.

Onboard I/O: 24 DI, 16 DO, 4 AI, 2 AO, 1 Pt100 input.

High-speed counters: 4 counters, up to 60 kHz.

Processing time: Approx. 0.06 ms per 1K binary instructions.

Memory expansion: Micro Memory Card (MMC), required for operation.

Compatibility & Applications

Supporting TCP/IP, PROFIBUS, PROFINET IO, PROFINET CBA, and Modbus protocols, this CPU integrates readily into SIMATIC S7-300-based automation systems and wider plant networks. Its combination of onboard I/O, high-speed counting, and dual communication interfaces makes it well suited to medium-sized machine and process control applications that benefit from a compact, self-contained CPU rather than a modular rack-based setup.
