Siemens 6ES7317-2EK14-0AB0 Central processing unit

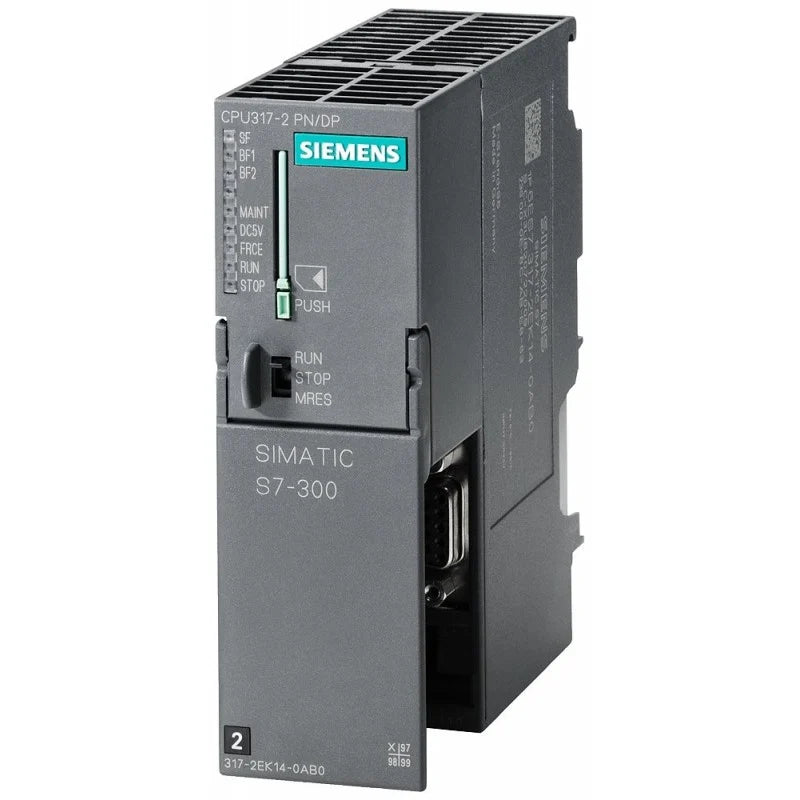

Siemens 6ES7317-2EK14-0AB0 SIMATIC S7-300 CPU 317-2 PN/DP Central Processing Unit

High-performance S7-300 CPU with integrated PROFINET and PROFIBUS DP interfaces

Overview

This is a Siemens SIMATIC S7-300 CPU 317-2 PN/DP, 6ES7317-2EK14-0AB0, a versatile CPU with 1 MB of integrated work memory and dual integrated communication interfaces — MPI/DP and Ethernet PROFINET with a 2-port switch. It's used in installations combining centralized I/O with distributed automation structures, functioning as a central controller in production lines or as a machine controller with demanding processing speed requirements.

Key Features

  • High-speed processing: Fast instruction execution suited to complex, real-time automation tasks.
  • Integrated dual communication: 1st interface MPI/DP at 12 Mbit/s for master/slave PROFIBUS operation; 2nd interface 10/100 Mbit/s Ethernet PROFINET with an integrated 2-port switch.
  • PROFINET I-Device support: Can be configured as an intelligent PROFINET device under a SIMATIC or third-party PROFINET IO Controller, and supports Component Based Automation (CBA) distributed intelligence.
  • Integrated web server: Allows creation of user-defined web pages for monitoring and diagnostics.
  • Compact modular design: Fits directly into the S7-300 modular rack system for space-efficient installation.
  • Retentive data support: 256 KB of retentive memory ensures critical data blocks survive power loss.

What's Included

Model Function Qty
CPU 317-2 PN/DP (6ES7317-2EK14-0AB0) Central processing unit, S7-300 1

Note: requires a Micro Memory Card (not included) for operation.

Technical Specifications

Work memory: 1,024 KB (integrated, program and data), not expandable.

Retentive memory: 256 KB for retentive data blocks.

Load memory: Pluggable Micro Memory Card (MMC), up to 8 MB.

Interfaces: 1st — MPI/DP, 12 Mbit/s; 2nd — Ethernet PROFINET, 2-port switch, 10/100 Mbit/s.

Power / current consumption: 20.4–28.8V DC supply; 750 mA rated current consumption; 4.65W power loss.

Mains buffering: 5 ms mains/voltage failure stored energy time.

Compatibility & Applications

Fully compatible with the SIMATIC S7-300 modular system, this CPU is well suited to production-line central control, machine control applications with demanding processing speed requirements, and installations combining centralized I/O with distributed automation structures over PROFIBUS DP and PROFINET.
