Siemens 6ES7416-3XS07-0AB0 Central processing unit (CPU)

  • Siemens 6ES7416-3XS07-0AB0 Central processing unit (CPU)
1 2

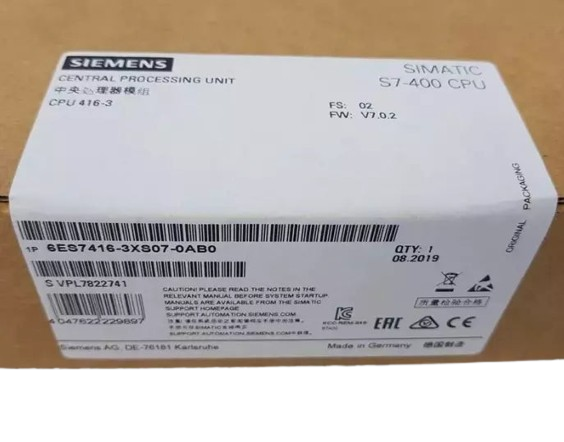

Siemens 6ES7416-3XS07-0AB0 Central processing unit (CPU)

€12.332,00
€12.332,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Siemens 6ES7416-3XS07-0AB0 Central processing unit (CPU)

The Siemens 6ES7416-3XS07-0AB0 is a high-performance CPU designed for advanced automation systems, offering extensive memory capacity, fast processing times, and robust functionality for industrial applications.

General Information:

  • Model: CPU 416-3
  • Hardware Functional Status: 01
  • Firmware Version: V7.0
  • Programming Package Required: STEP 7 V5.4 or higher with HSP 261

Key Features:

  • Isochronous Mode Support: Yes (for PROFIBUS).
  • Configuration in Run (CiR):
    • Synchronization Time (Basic Load): 100 ms
    • Synchronization Time (Per I/O Byte): 10 µs

Electrical Specifications:

  • Power Supply: Via system power supply.
  • Input Current:
    • 5 V DC (Backplane Bus, Typical): 1.1 A
    • 24 V DC (Backplane Bus, Max): 450 mA (150 mA per DP interface)
    • 5 V DC (Interface, Max): 90 mA per DP interface
  • Power Loss (Typical): 5.5 W

Memory:

  • Integrated Work Memory: 16 MB (8 MB for program, 8 MB for data).
  • Expandable Load Memory (FEPROM): Up to 64 MB with Memory Card.
  • Backup Memory: Retentive with backup battery.

Processing Times:

  • Bit Operations: 12.5 ns
  • Word Operations: 12.5 ns
  • Floating Point Arithmetic: 25 ns

Supported Blocks:

  • Data Blocks (DB): Up to 10,000 (max size: 64 kB each).
  • Function Blocks (FB): Up to 5,000 (max size: 64 kB each).
  • Function Calls (FC): Up to 5,000 (max size: 64 kB each).

Address Area:

  • Inputs: Up to 16 kB
  • Outputs: Up to 16 kB
  • Process Image (Default): 512 bytes each for inputs and outputs.

Environmental Specifications:

  • Ambient Temperature: -25 to +55 °C.
  • Backup Battery Current (Typical): 180 µA at up to 40 °C.
