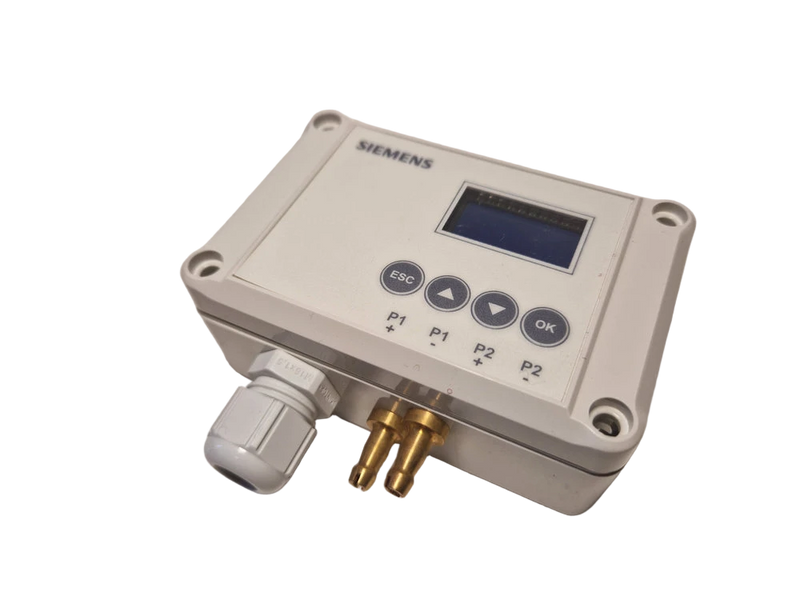

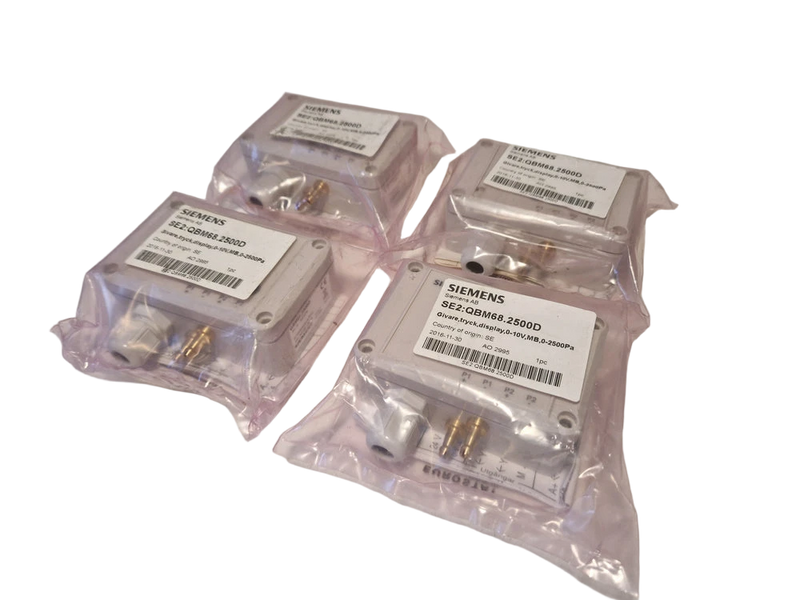

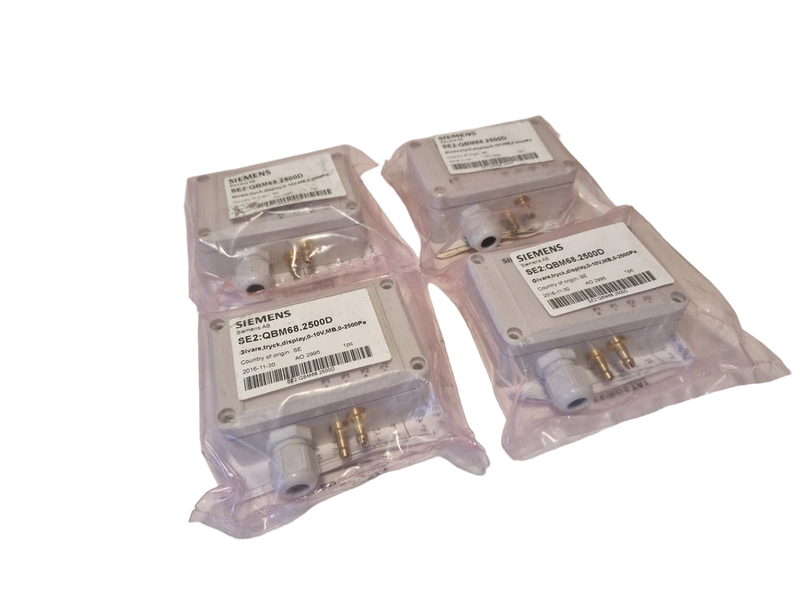

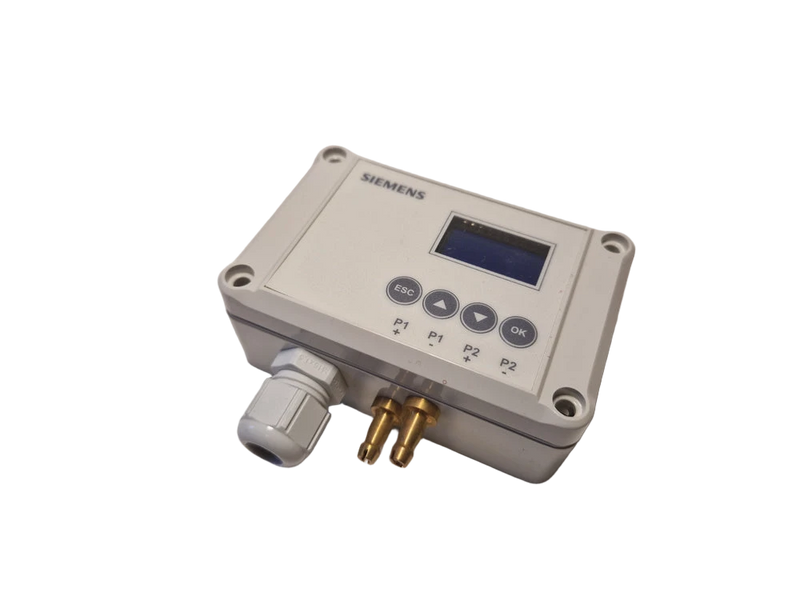

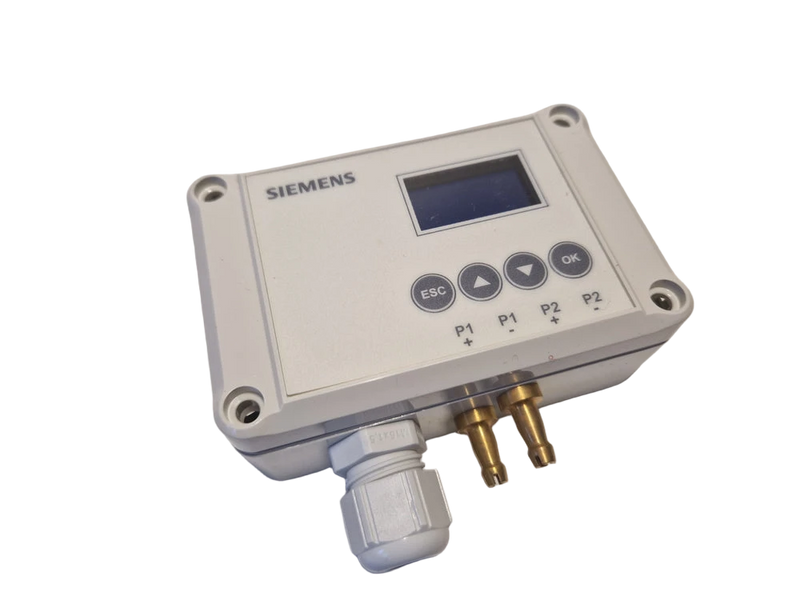

Siemens QBM68.2500D Differential Pressure Sensor, 0–2500 Pa

Precision differential pressure sensor for air and non-aggressive gas systems

Overview

This is a Siemens QBM68.2500D, a differential pressure sensor from Siemens's QBM series for air and non-aggressive gas applications. Built for demanding accuracy requirements with a diaphragm sensing element and ambient temperature compensation, it delivers consistent, precise pressure measurement across a 0–2500 Pa range, with data available via both Modbus RTU communication and a standard 0–10V analog output for flexible system integration.

Key Features

  • High measurement accuracy: Total error under ±1% FS, with tight temperature-coefficient specifications for both zero point (<±0.1% FS/°C) and sensitivity (<±0.06% FS/°C).
  • Ambient temperature compensation: Maintains consistent measurement accuracy even as ambient conditions fluctuate.
  • Dual output options: Modbus RTU digital communication alongside a 0–10V analog output, supporting flexible integration into existing control and monitoring systems.
  • Low power consumption: Draws under 1 VA, operating from either AC 24V or DC 13.5–35V supply.

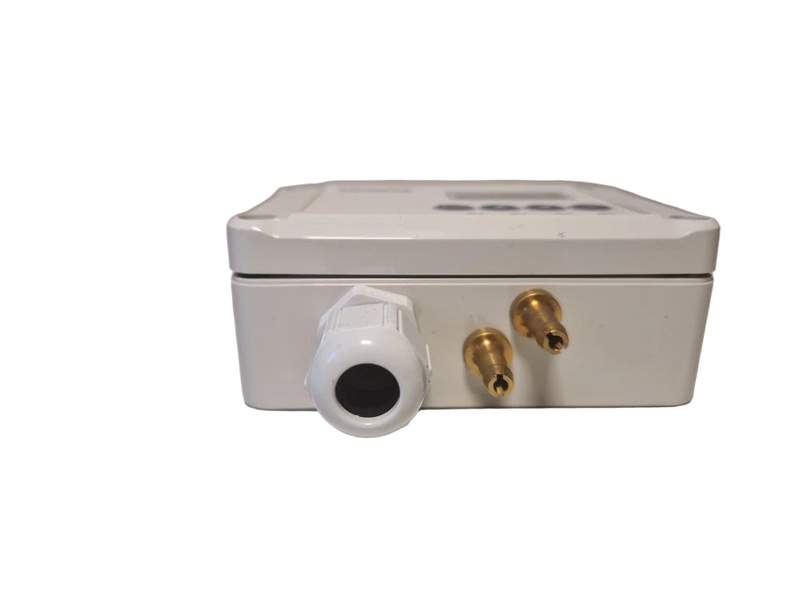

  • Sealed, durable housing: IP65-rated protection with brass pressure connection fittings (5mm diameter) and an M16 cable bushing for reliable long-term operation.
  • Easy installation: Compact design supports quick setup, minimizing installation time and cost.

What's Included

Model Function Qty
QBM68.2500D Differential pressure sensor, 0-2500 Pa 1

Technical Specifications

Measuring range: 0 to 2500 Pa.

Accuracy: Total error <±1% FS; TC zero point <±0.1% FS/°C; TC sensitivity <±0.06% FS/°C.

Output / communication: Modbus RTU; 0–10V analog output.

Power supply: AC 24V or DC 13.5–35V; power consumption <1 VA.

Pressure connection: Brass fittings, Ø5 mm.

Cable connection: M16 cable bushing.

Substance temperature: 0 to 70°C.

Protection rating: IP65 (IEC 60529).

Compatibility & Applications

The QBM68.2500D integrates via Modbus RTU or standard 0–10V analog signals into building management and industrial control systems. It's well suited to HVAC applications such as filter and fan monitoring, duct pressure measurement, and airflow-related volume flow calculation, as well as broader industrial and laboratory settings requiring precise differential pressure measurement of air or non-aggressive gases.
