Velodyne LiDAR VLP-16 Puck Sensor — 3D 360° 16-Channel

Real-time 3D LiDAR sensor for autonomous vehicles, robotics, and mapping systems

Overview

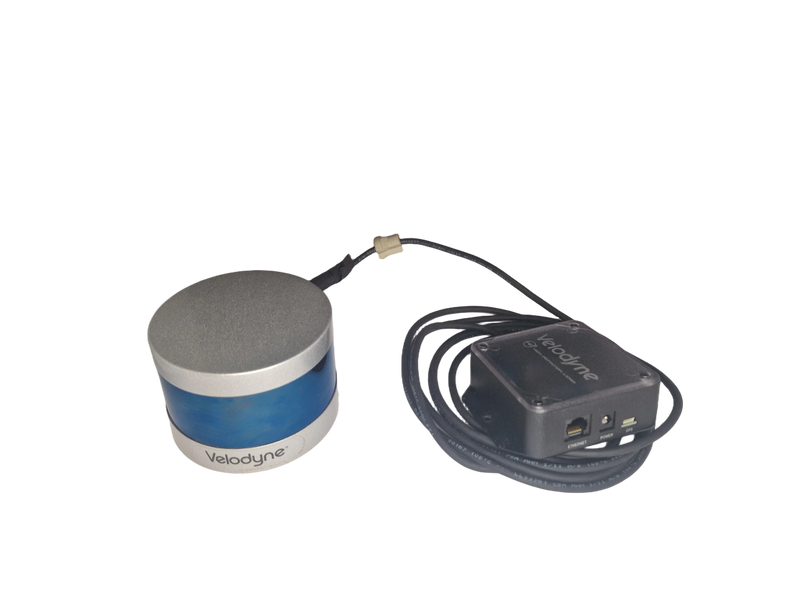

This is a Velodyne VLP-16 "Puck," a compact, lightweight, high-performance 3D LiDAR sensor designed for real-time perception in autonomous vehicles, robotics, and mapping systems. An array of 16 laser channels spins inside a sealed, weather-resistant housing to build a dense 360° point cloud of the surrounding environment, giving precise range measurements suited to both indoor and outdoor applications. Weighing under 1 kg with no externally visible moving parts, it's compact enough for drones and lightweight robotic platforms while still delivering long-range, high-accuracy 3D perception.

Key Features

  • 360° horizontal field of view: Ensures complete environmental scanning around the sensor for full situational awareness.
  • 16 laser channels: Delivers rich 3D point cloud data at up to 300,000 points per second for accurate mapping and object detection.
  • Compact, lightweight design: Weighs less than 1 kg, making it suitable for integration into drones and lightweight robotic systems.
  • High measurement accuracy: Provides up to ±3 cm accuracy for precise distance measurements.
  • Long detection range: Effective up to 100 meters, enabling advanced perception across a range of environments.
  • Multiple return capability: Captures multiple reflections per laser pulse, adding environmental detail such as through foliage or partially obstructed views.
  • IP67-rated housing: Withstands dust and harsh weather conditions for reliable outdoor deployment.

What's Included

Model Function Qty
VLP-16 Puck 16-channel 3D LiDAR sensor 1

Technical Specifications

Laser channels: 16.

Field of view: 360° horizontal; ±15° vertical (30° total).

Measurement range / accuracy: Up to 100 m; ±3 cm typical accuracy.

Data rate: Up to 300,000 points per second.

Weight: Less than 1 kg.

Protection rating: IP67.

Compatibility & Applications

The VLP-16 is widely used in autonomous vehicles for navigation and obstacle detection, robotics for environmental perception, surveying and 3D mapping, industrial automation, and smart city infrastructure monitoring. Its compact design supports easy integration into drones and compact vehicle platforms, while its weather-resistant housing ensures reliable operation across diverse environmental conditions.
