ABB PSR25-600-70 Compact Soft Starter

Compact soft starter for smooth motor start-up and reduced electrical peak currents

Overview

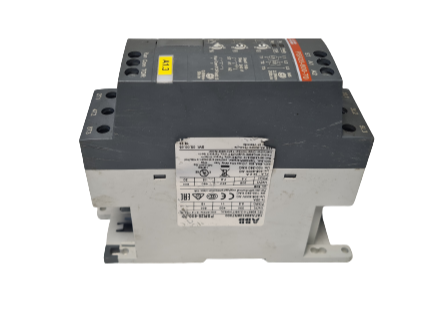

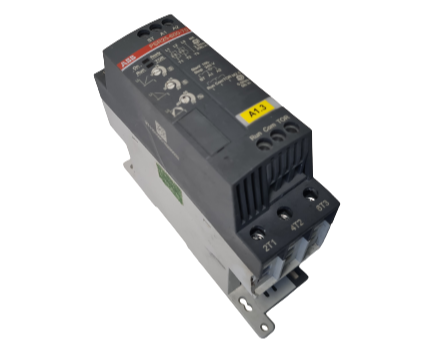

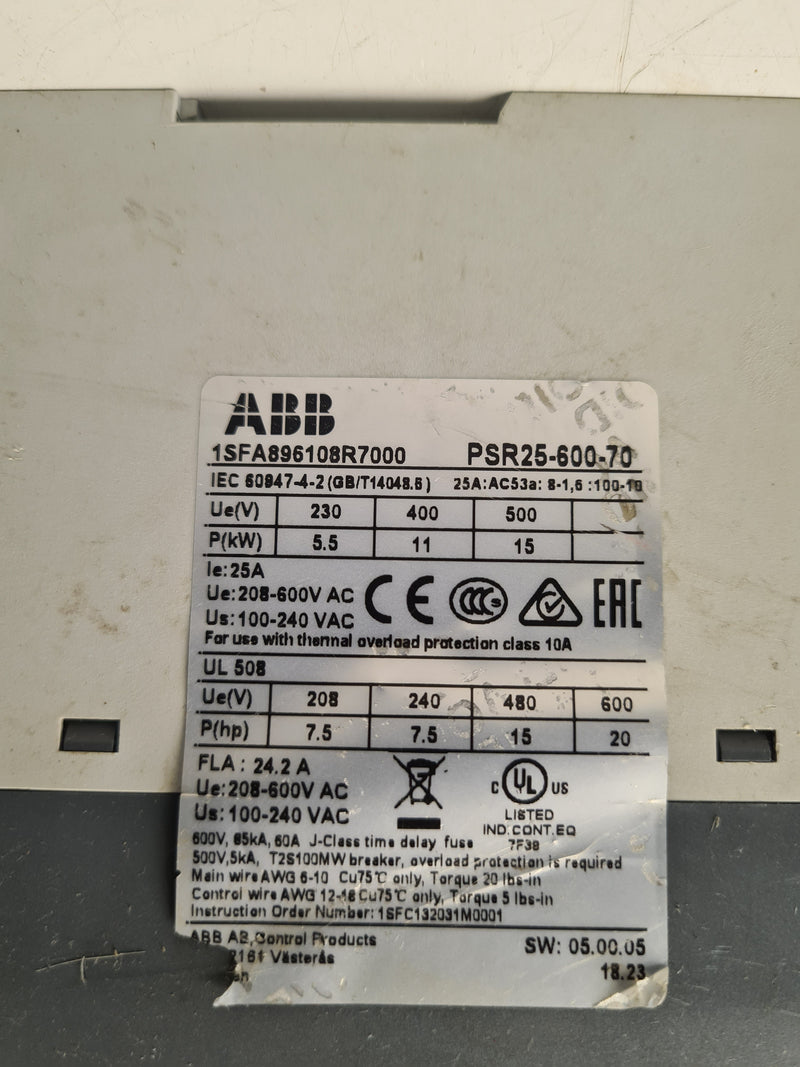

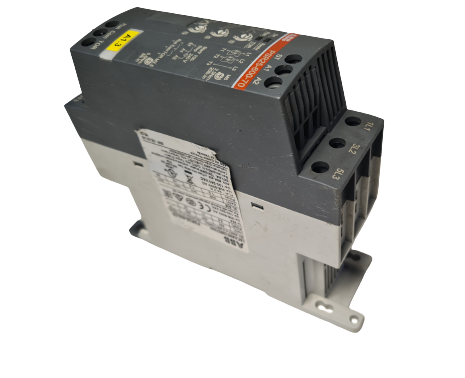

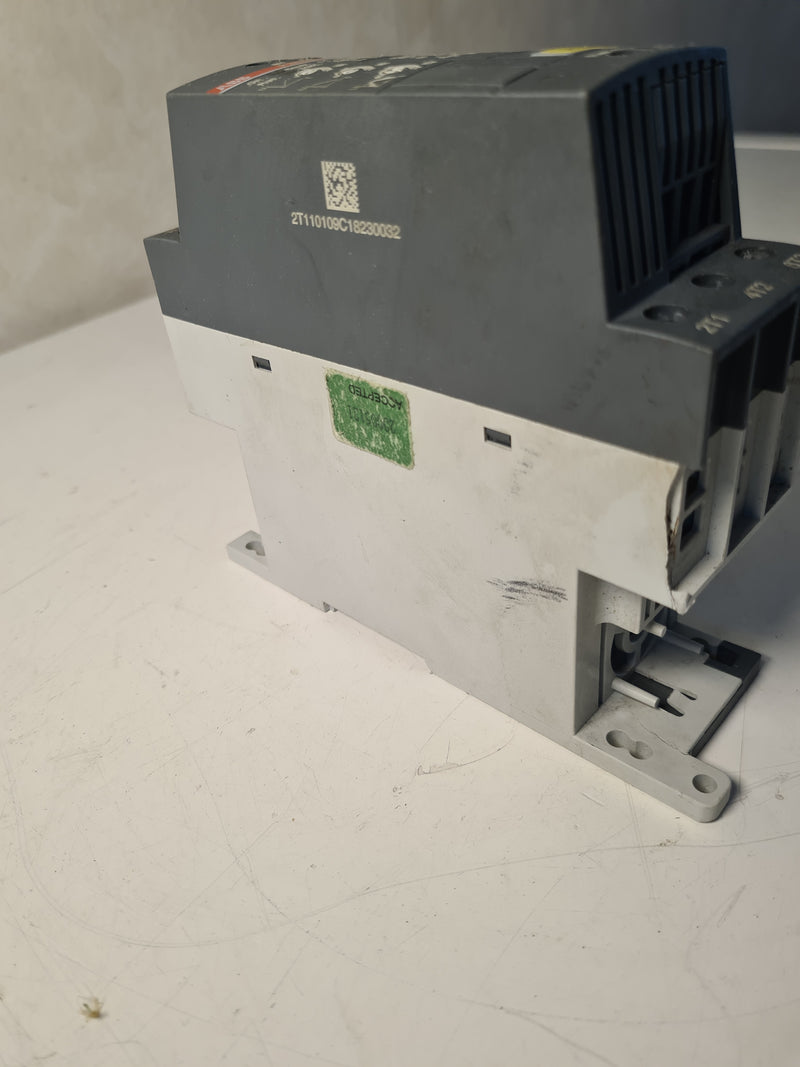

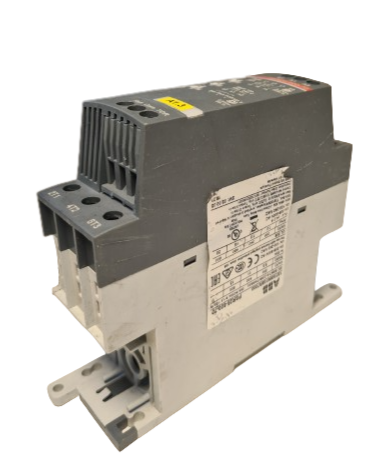

This is an ABB PSR25-600-70 Compact Soft Starter, designed for smooth and efficient motor start-up. This soft starter minimizes mechanical stress on motors and reduces electrical peak currents, extending equipment lifespan and improving operational reliability. Its compact design and versatile performance make it well suited for a wide range of industrial applications.

Key Features

  • Smooth motor start-up: Reduces mechanical and electrical stress on motors.
  • Compact design: Space-saving installation for tight control panels.
  • Green LED indicators: Clear status display for operation, running, and ramping.
  • Integrated bypass relay: Enhances energy efficiency and reduces heat.
  • Wide voltage range: Compatible with various industrial power systems.
  • Flexible ramp time: Customizable soft start and stop settings.
  • Reliable performance: Supports up to 10 starts per hour at 3.5xIe for 7 sec.

What's Included

Model Function Qty
PSR25-600-70 Compact soft starter 1

Brand: ABB | Degree of Protection: IP20 | Condition: Sold as-is — see note below

Technical Specifications

Model: PSR25-600-70.

Rated operational voltage: 208-600 V AC.

Rated control supply voltage (Us): 100-240 V AC.

Rated control circuit voltage (Uc): 24 V DC.

Rated frequency: 50/60 Hz.

Rated operational power (in-line connection): 5.5 kW at 230 V; 11 kW at 400 V; 15 kW at 500 V.

Rated operational current (Ie): 25 A.

Starting capacity: 4xIe for 6s.

Ramp time: 0-20 sec / 1-10 sec.

Initial voltage during start: 40-70%.

Degree of protection: IP20.

Physical Dimensions

Width: 128 mm.

Height: 160 mm.

Depth/length: 45 mm.

Weight: 0.6 kg.

Connectivity and Control

Terminal type: Screw terminals.

Main circuit capacity: 1/2 x 2.5-10 mm² (rigid).

Control circuit capacity: 1 x 0.75-2.5 mm², 2 x 0.75-2.5 mm².

Supply circuit capacity: 1 x 0.75-2.5 mm².

Communication: Optional FieldBusPlug for advanced integration.

Environmental Conditions

Operating temperature: -25°C to +60°C.

Storage temperature: -40°C to +70°C.

Protection level: IP20 (suitable for protected environments).

Compatibility & Applications

This soft starter is well suited to industrial automation systems, HVAC systems, water treatment plants, conveyor systems, and pumps, fans, and compressors. Buyers should confirm the operational voltage and power rating match their motor before installation.

Item Condition Note

This item may have broken or missing parts. Please check pictures carefully — what you see is what you get. Please reach out with any questions before purchasing.
