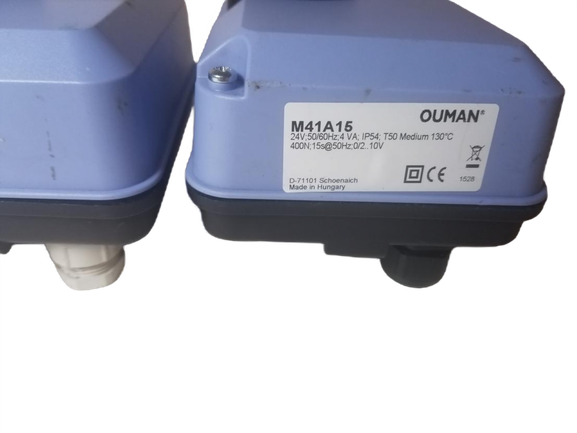

Ouman M41A15 valve actuator 3-leg controlled valve

Normaalihinta
€50,00
Normaalihinta
Myyntihinta
€50,00
Ouman M41A15 valve actuator 3-leg controlled valveOuman M41A15 valve actuator 3-leg controlled valveOuman M41A15 valve actuator 3-leg controlled valveOuman M41A15 valve actuator 3-leg controlled valveOuman M41A15 valve actuator 3-leg controlled valve
2x Ouman M41A15 valve actuator 3-leg controlled valve
Order number M41A15
Supply voltage 24VAC; 50/60Hz
Power consumption 5VA
Signal input 0/2...10V factory setting:
0 (2)V; actuator stem retracts
10 V; actuator stem extends
Nominal stroke 6.5 mm
Run time 15 s
Nominal stem force > 400N
Temperature limits;
ambient operating limits 0... +50°C 5 - 95%rh
Ambient storage limits -40... +70°C 5 - 95%rh
Medium valve temperature max +130°C
Signals
Input voltage range Y = 0...10 VDC or 2...10 VDC
Input resistor Ri = 100kΩ
Signal source output register max 1kΩ
Safety
Protection standard IP54 in acc. wth EN60529
Protection class II in acc. with EN60730-1
Flame retardant V0 in acc. with UL94 (optional with
metal cable gland)
Material
Cover ABS -FR
Base glass fibre reinforced plastic
Wiring
Terminals 1.5 mm2
Cable entry M20*1,5
Dimensions See next page
Weight 0,37 kg
Sale

Unavailable

Sold Out
