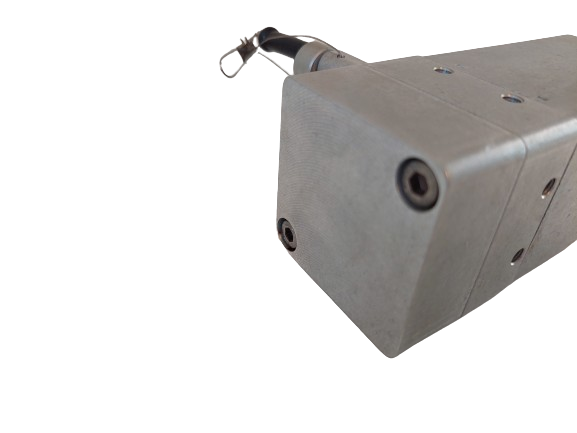

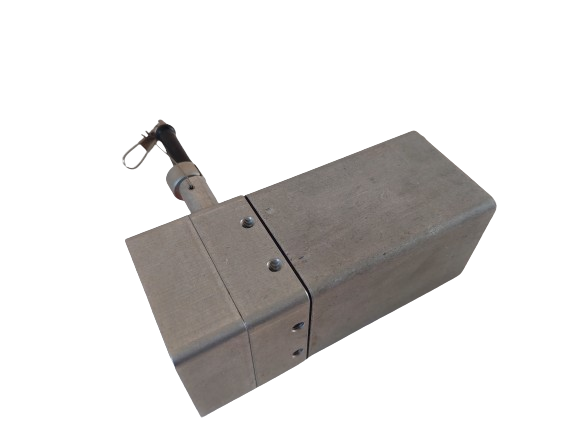

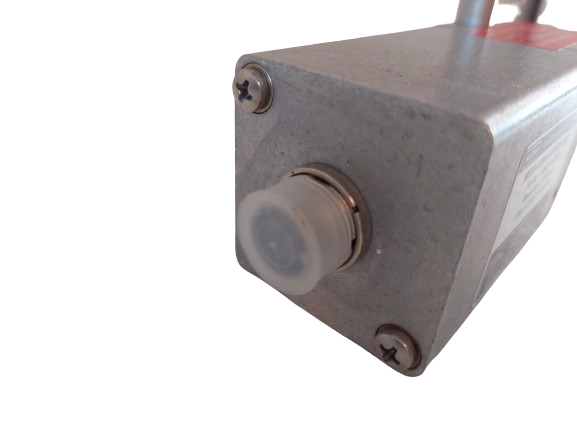

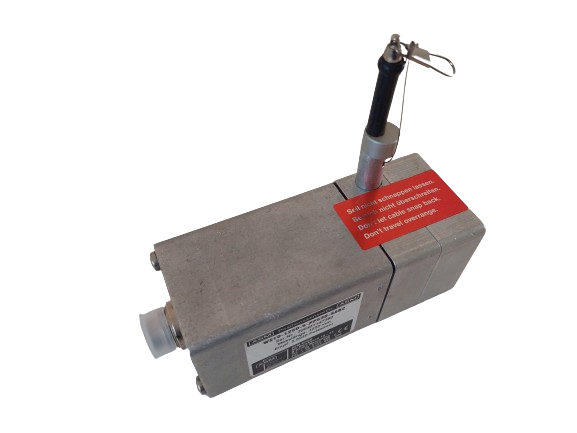

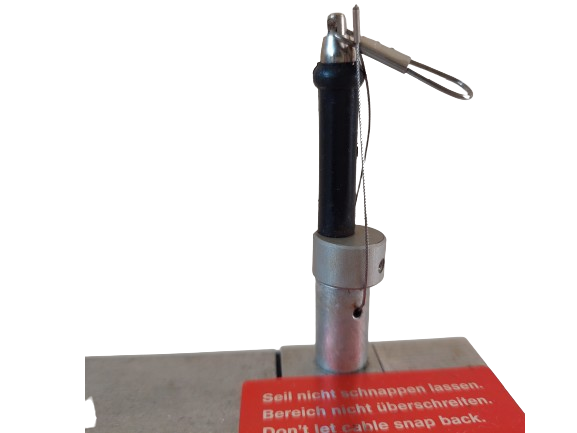

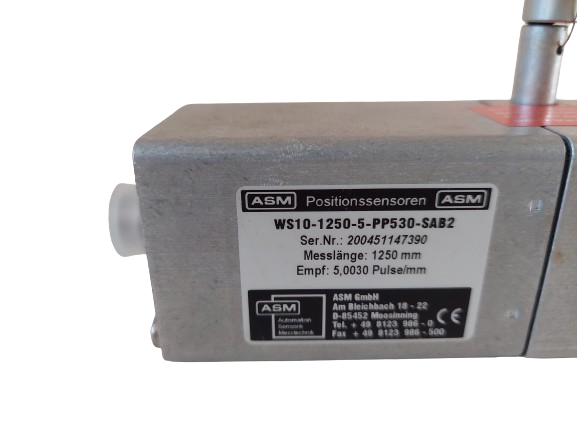

ASM WS10-1250-5-PP530-SAB2 Cable Extension Position Sensor, Up to 1250mm

€650,00
€650,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
ASM Rotary Potentiometer Position Sensor WS10-1250-5-PP530-SAB2ASM Rotary Potentiometer Position Sensor WS10-1250-5-PP530-SAB2ASM Rotary Potentiometer Position Sensor WS10-1250-5-PP530-SAB2ASM Rotary Potentiometer Position Sensor WS10-1250-5-PP530-SAB2ASM Rotary Potentiometer Position Sensor WS10-1250-5-PP530-SAB2ASM Rotary Potentiometer Position Sensor WS10-1250-5-PP530-SAB2ASM Rotary Potentiometer Position Sensor WS10-1250-5-PP530-SAB2

ASM WS10-1250-5-PP530-SAB2 Cable Extension Position Sensor, Up to 1250mm

posiwire® draw-wire position sensor with precision potentiometer sensing element

Overview

This is an ASM WS10-1250-5-PP530-SAB2, a cable extension (draw-wire) position sensor from ASM's posiwire® WS10 series, measuring linear displacement up to 1250mm. Internally, a precision potentiometer serves as the sensing element, converting the wire's linear extension into a proportional electrical output, with this configuration providing both 0-10V voltage and 4-20mA current output options for flexible integration.

Key Features

  • Long measurement range: Captures linear position up to 1250mm using the draw-wire (cable extension) sensing principle.
  • Flexible analog output: Provides both 0-10V voltage and 4-20mA current signal options, easing integration with a wide range of PLC and control system analog inputs.
  • Precision potentiometer sensing element: Delivers essentially infinite analog resolution, translating wire displacement into a smooth, continuous output signal.
  • Aluminium housing with stainless steel measuring cable: Durable construction suited to demanding industrial environments.
  • IP65 protection (with mating connector): Sealed housing resists dust and water ingress when properly connected.
  • SAB2 accessory configuration: Includes the SAB2 cable dust wiper/fixing accessory option for added cable protection.

What's Included

Model Function Qty
WS10-1250-5-PP530-SAB2 Cable extension position sensor, up to 1250mm 1

Technical Specifications

Measurement range: Up to 1250mm.

Output: Voltage 0…10V; Current 4…20mA.

Sensing device: Precision potentiometer.

Material: Aluminium housing; stainless steel measuring cable.

Protection class: IP65 (with mating connector only).

Temperature range: -20°C to +85°C.

Compatibility & Applications

As a standard 0-10V / 4-20mA analog output device, this sensor integrates directly with most PLC analog input modules and industrial control systems. WS10 series sensors are widely used in driverless transport systems, power lifters and heavy-duty lifting frames, forklift trucks, and shelf management equipment — anywhere reliable, long-range linear position feedback is needed.
