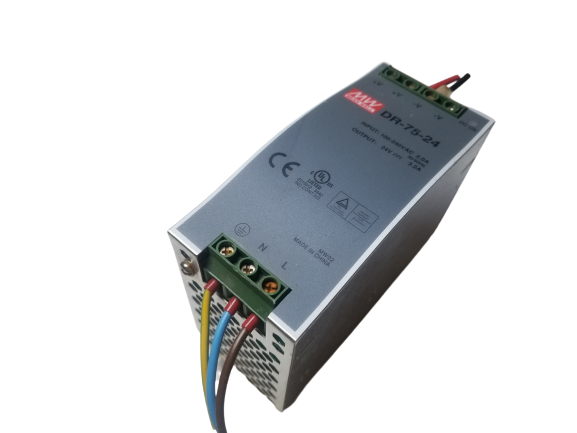

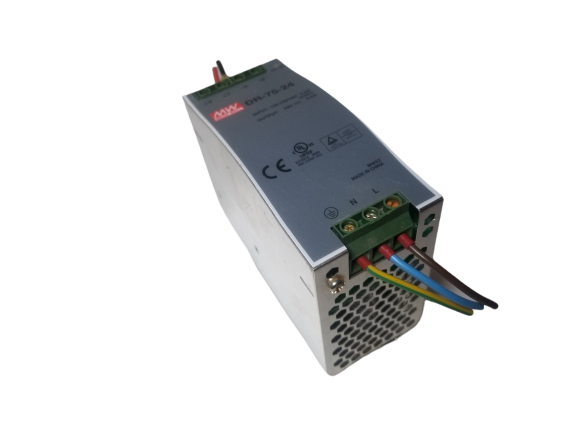

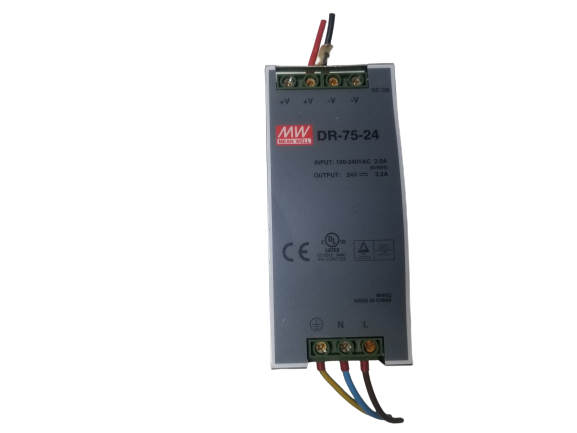

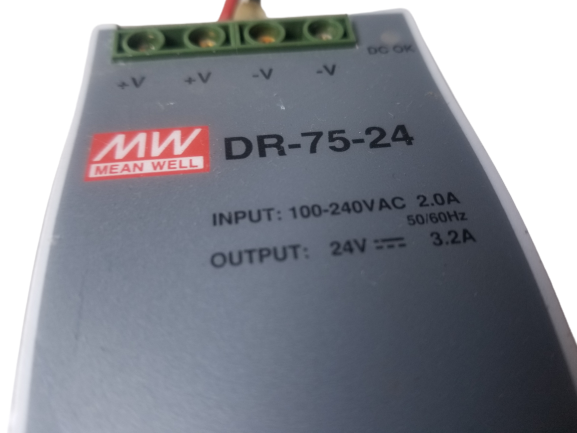

Mean Well DR-75-24 Power Supply

€65,00
€65,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Mean Well DR-75-24 76.8W Power SupplyMean Well DR-75-24 76.8W Power SupplyMean Well DR-75-24 76.8W Power SupplyMean Well DR-75-24 76.8W Power Supply

Mean Well DR-75-24 Power Supply

Universal AC input DIN rail power supply with adjustable 24V output

Overview

This is a Mean Well DR-75-24 Power Supply, designed to provide reliable AC-to-DC power conversion for industrial control systems. With a universal AC/DC input range and an adjustable 24-28V output, it delivers stable power for connected automation equipment.

Key Features

  • Rated power: 76.8W with a rated current of 3.2A at 24V DC.
  • Adjustable output voltage: Range of 24 to 28V.
  • Universal input: Accepts 85-264VAC or 120-370VDC at 47-63 Hz.
  • Tight load regulation: ±1.0% for stable output under varying load.
  • Good efficiency: Typical efficiency of 80%.

What's Included

Model Function Qty
DR-75-24 DIN rail power supply 1

Brand: Mean Well | Part Status: Active

Technical Specifications

Output Parameters

DC voltage: 24V.

Rated current: 3.2A.

Voltage adjustment range: 24 to 28V.

Current range: 0 to 3.2A.

Rated power: 76.8W.

Load regulation: ±1.0%.

Input Parameters

Voltage range: 85-264VAC, 120-370VDC.

Frequency range: 47-63 Hz.

Efficiency (typical): 80%.

AC current (typical): 1.6A at 115VAC; 0.96A at 230VAC.

Compatibility & Applications

This power supply is well suited to industrial control systems requiring reliable 24V DC power for PLCs, sensors, and other automation equipment. Buyers should confirm the AC/DC input voltage and 24-28V/3.2A output rating match their system requirements before installation.
