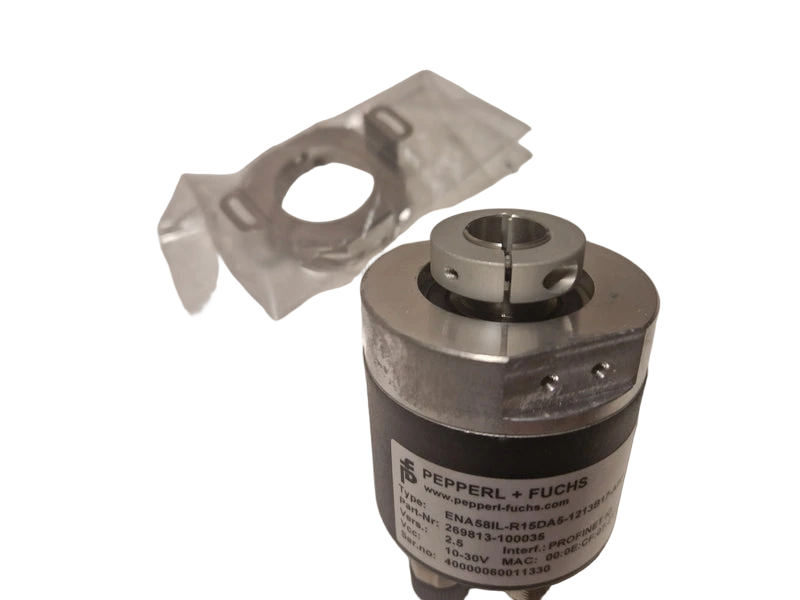

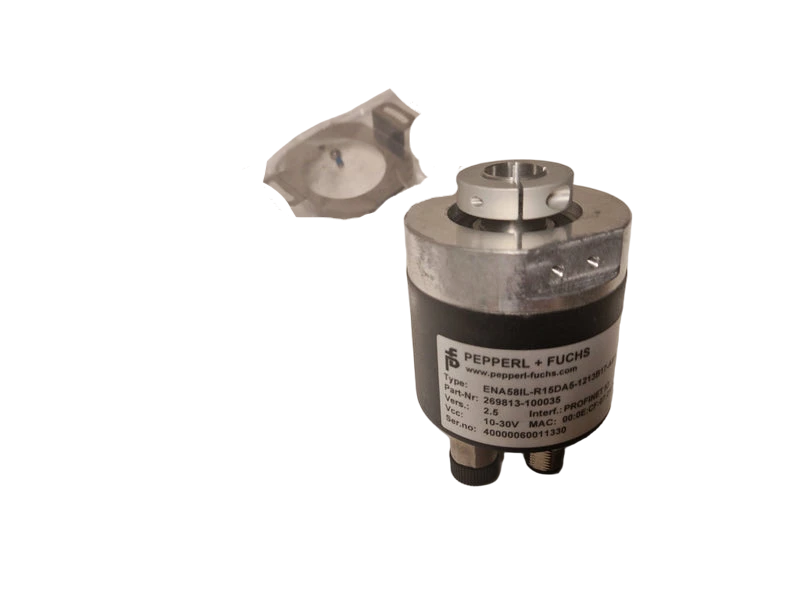

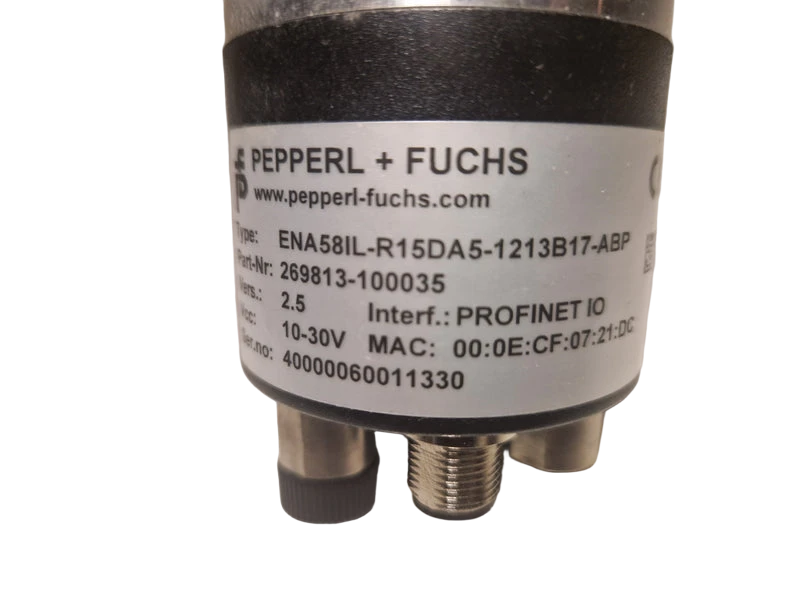

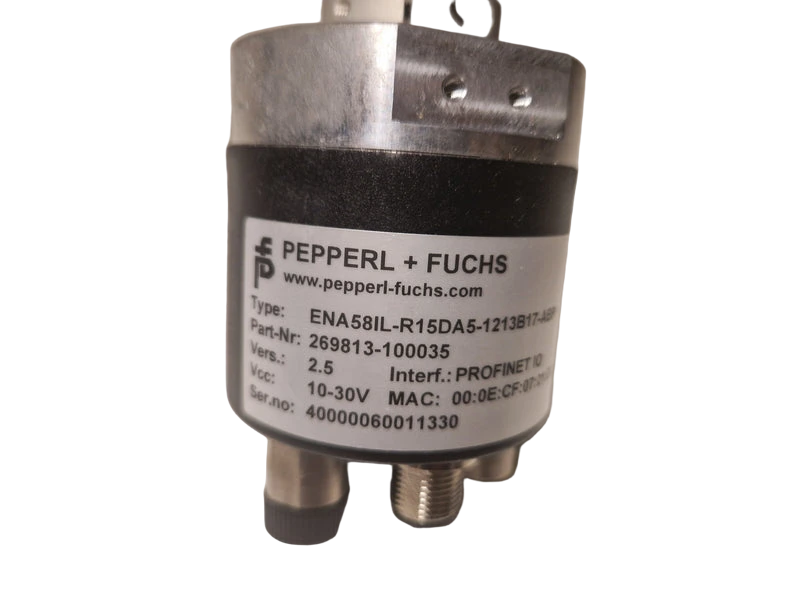

Pepper Fuchs Absolute rotary encoder ENA58IL-R15DA5-1213B17-ABP

€563,00
€563,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Pepper Fuchs Absolute rotary encoder ENA58IL-R15DA5-1213B17-ABPPepper Fuchs Absolute rotary encoder ENA58IL-R15DA5-1213B17-ABPPepper Fuchs Absolute rotary encoder ENA58IL-R15DA5-1213B17-ABPPepper Fuchs Absolute rotary encoder ENA58IL-R15DA5-1213B17-ABPPepper Fuchs Absolute rotary encoder ENA58IL-R15DA5-1213B17-ABPPepper Fuchs Absolute rotary encoder ENA58IL-R15DA5-1213B17-ABP

Key Features:

  • Detection Type: Magnetic sampling for precise and reliable measurements.
  • Device Type: Absolute rotary encoder, ideal for accurate position sensing.
  • Linearity Error: ≤ ± 0.1 °, ensuring high precision in readings.
  • Functional Safety:
    • MTTFd (Mean Time To Failure): 256 years at 40 °C for exceptional durability.
    • Mission Time (TM): 12 years for dependable long-term performance.
    • L10 Life: 5E+8 revolutions at 24/198 N axial/radial shaft load, promising reliability in demanding environments.
    • Diagnostic Coverage (DC): 0%, indicating no self-diagnostics or fault detection.

Electrical Specifications:

  • Operating Voltage: 10 ... 30 V DC, adaptable to various power systems.
  • Power Consumption: Approx. 4 W, ensuring energy efficiency.
  • Time Delay Before Availability: < 250 ms for quick start-up.
  • Output Code: Binary code for clear data output.
  • Code Course (Counting Direction): Adjustable to suit specific application requirements.

Interface:

  • Interface Type: EtherCAT® for fast communication with CoE (CANopen over EtherCAT).
  • Resolution:
    • Single turn: Up to 16 Bit.
    • Multiturn: Up to 14 Bit.
    • Overall Resolution: Up to 30 Bit for high-accuracy measurements.
  • Transfer Rate: 10 MBit/s / 100 MBit/s for rapid data transmission.

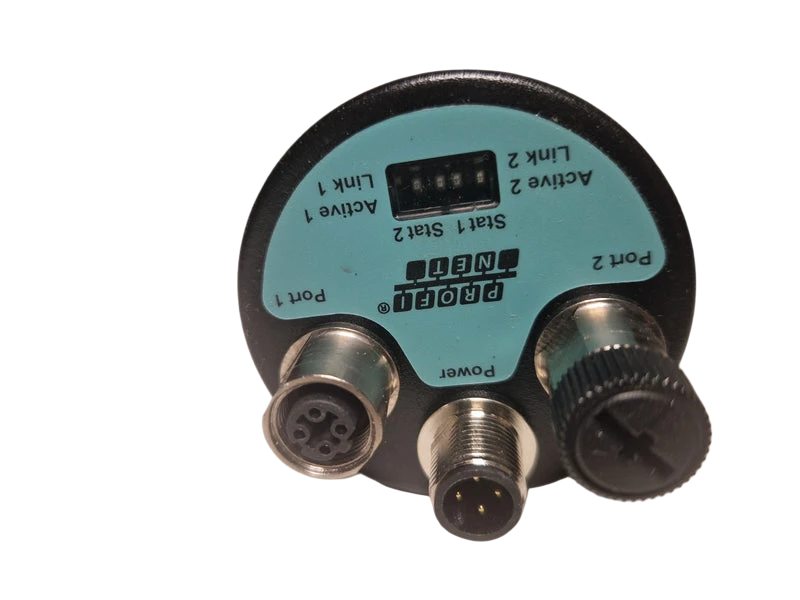

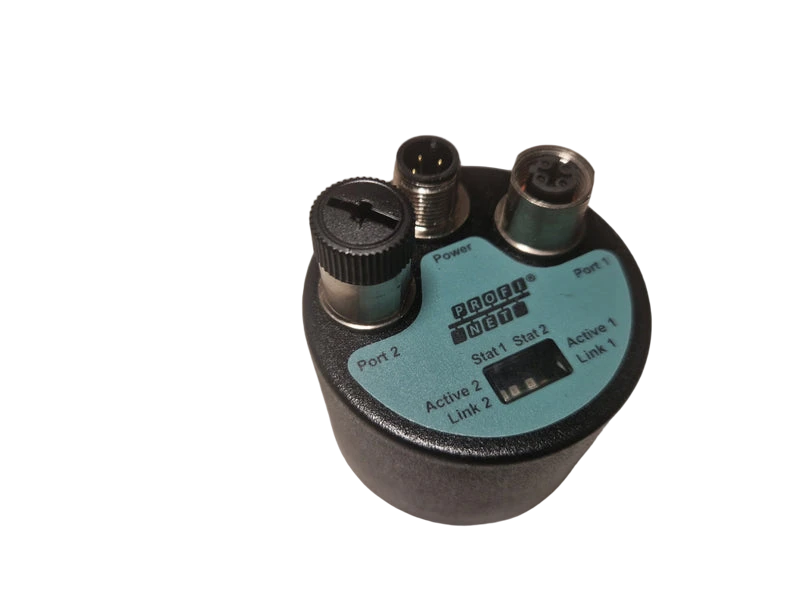

  • Connection:
    • Ethernet: 2 M12 x 1, 4-pin, D-coded sockets.
    • Supply: 1 M12 x 1, 4-pin, A-coded plug.

Environmental Specifications:

  • Degree of Protection: IP65, IP66, IP67 (DIN EN 60529), ensuring resistance to dust and water.
  • Operating Temperature: -40 ... 85 °C (-40 ... 185 °F), designed for extreme conditions.
  • Storage Temperature: -40 ... 85 °C (-40 ... 185 °F).
  • Relative Humidity: 98%, no moisture condensation.
  • Climatic Testing: No moisture condensation (DIN EN 60068-2-3).

Mechanical Specifications:

  • Housing: Zinc-plated steel, painted for durability.
  • Flange: Aluminum for lightweight strength.
  • Shaft: Stainless steel for corrosion resistance.
  • Mass: Approx. 300 g for a compact design.
  • Rotational Speed: Max. 12,000 min^-1 for high-speed performance.
  • Moment of Inertia: 50 gcm² for smooth operation.
  • Starting Torque: < 5 Ncm for easy initialization.
  • Shaft Load:
    • Axial: 24 N
    • Radial: 198 N
  • Angle Offset: ± 0.9 ° for minimal angular deviation.
  • Axial Offset: ± 0.3 mm (static).
  • Radial Offset: ± 0.5 mm (static).

Approvals & Certifications:

  • UL Approval: cULus Listed, General Purpose, Class 2 Power Source (if UL marking is on the product).
