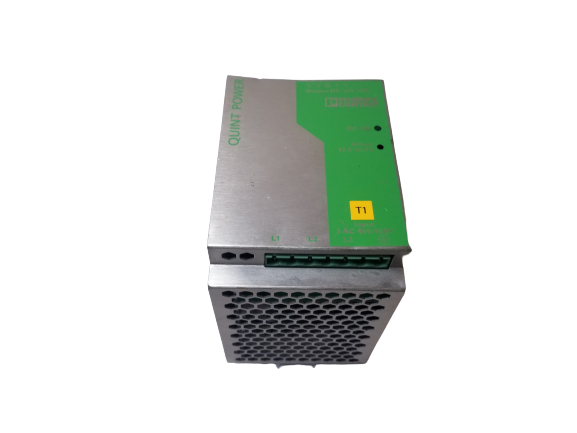

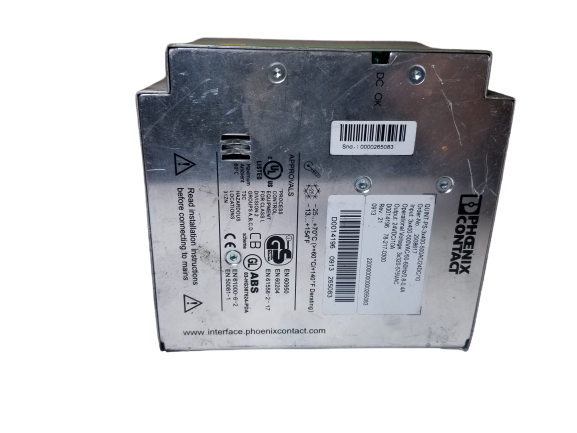

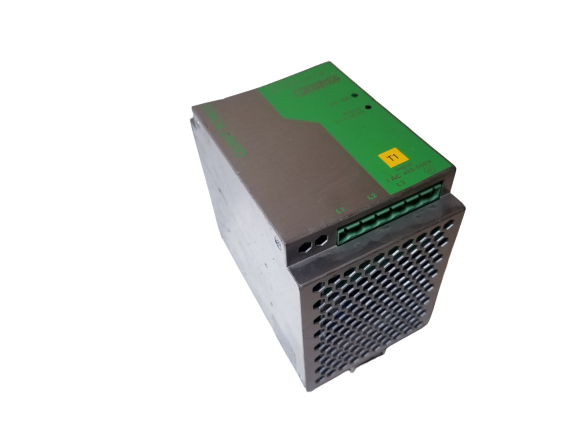

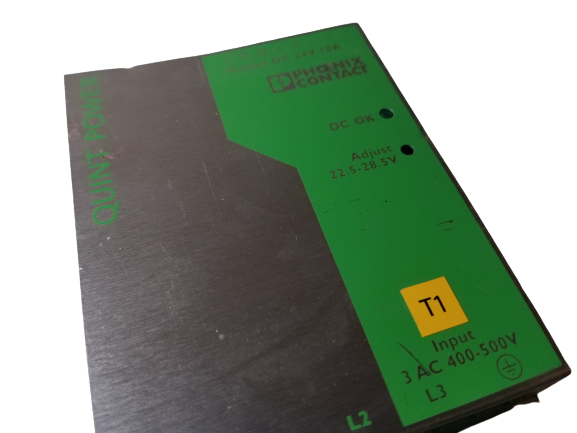

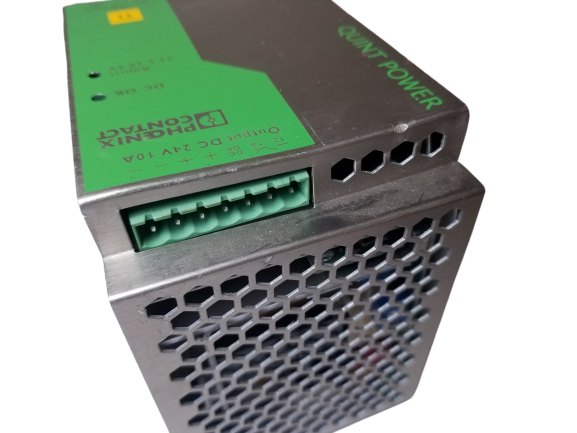

Phoenix Contact QUINT-PS-3x400-500AC/24DC/10 Power Supply (D0014196)

3-phase switched mode DIN rail power supply, 240 W, 24 VDC output

Overview

This is a Phoenix Contact QUINT-PS-3x400-500AC/24DC/10 Power Supply (D0014196), a primary switched mode power supply designed for 3-phase AC input applications. Delivering a regulated 24 VDC output at 10 A, it provides reliable power conversion for industrial control systems requiring higher power capacity.

Key Features

  • 3-phase AC input: Accepts 320-575 VAC 3-phase at 45-65 Hz.
  • High output power: Delivers 240 W, with a regulated 24 VDC output at 10 A.
  • Switched mode operation: Primary switched mode AC-DC conversion for efficient performance.
  • DIN rail mounting: Straightforward installation in standard control cabinets.
  • Wide operating temperature range: Rated from -25°C to +70°C ambient.

What's Included

Model Function Qty
D0014196 (QUINT-PS-3x400-500AC/24DC/10) 3-phase switched mode power supply 1

Brand: Phoenix Contact | Series: QUINT Power | Part Status: Active

Technical Specifications

Mfr part number: QUINT-PS-3X400-500AC/24DC/10.

Product header: Primary switched mode power supply.

Primary type: AC-DC.

Operation: Switching.

Input voltage range: 320-575 VAC, 3-phase.

Frequency: 45-65 Hz.

Output voltage: 24 VDC.

Output current: 10 A.

Output power: 240 W.

Current rating: 10 A.

Number of outputs: 1.

Mounting type: DIN rail mount.

Height: 5.118" (130mm).

Minimum operating temperature: -25°C ambient.

Maximum operating temperature: +70°C ambient.

Compatibility & Applications

This power supply is well suited to industrial control systems requiring high-power, 3-phase AC-to-24 VDC power conversion. Buyers should confirm the 320-575 VAC 3-phase input and 24 VDC/10A output rating match their system requirements before installation.
