Planet WNAP-6300 802.11b/g/n Wireless LAN Outdoor Access Point

Outdoor wireless access point with directional antenna for extended-range network coverage

Overview

This is a Planet WNAP-6300 outdoor wireless access point, supporting IEEE 802.11b/g/n wireless standards for extended-range network coverage in outdoor environments. Featuring a built-in 8dBi directional antenna along with a switchable N-type connector for external antenna options, this access point is designed for industrial, campus, or long-range outdoor wireless deployments.

Key Features

  • 802.11b/g/n wireless support: Provides data rates up to 11Mbps (802.11b), 54Mbps (802.11g), and 150Mbps (802.11n).
  • Built-in directional antenna: Default embedded 8dBi directional antenna (vertical-pol), with a 113° horizontal and 39° vertical beamwidth.
  • Reserve N-type connector: Software-switchable connector for external antenna options.

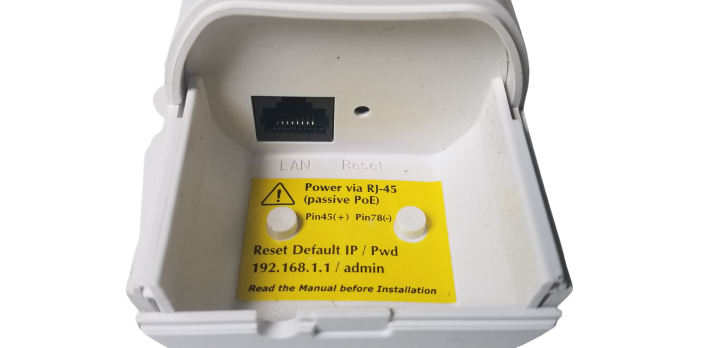

  • Wired LAN interface: 1x 10/100Base-TX port with Auto-MDI/MDIX.
  • Multiple modulation schemes: Supports OFDM, BPSK, QPSK, CCK, DQPSK, and DBPSK modulation.
  • ISM band operation: Operates in the IEEE 802.11b/g/n HT20 and 802.11g/n HT40 ISM bands.
  • Defined RF output power: Up to 26 ±1.5dBm depending on standard and data rate.

What's Included

Model Function Qty
WNAP-6300 Outdoor wireless LAN access point 1

Model: WNAP-6300 | Brand: Planet | Standard: IEEE 802.11b/g/n

Technical Specifications

Product type: WNAP-6300, outdoor wireless access point.

Standard support: IEEE 802.11b/g/n; IEEE 802.3/u.

Wireless interface: IEEE802.11b/g/n.

LAN interface: 1x 10/100Base-TX, Auto-MDI/MDIX.

Antenna: Default embedded 8dBi directional antenna (vertical-pol); horizontal 113°, vertical 39°; reserve N-type connector (plug), switchable by software.

Data rate: 802.11b up to 11Mbps; 802.11g up to 54Mbps; 802.11n up to 150Mbps.

Modulation: OFDM, BPSK, QPSK, CCK, DQPSK, DBPSK.

Frequency range: IEEE 802.11b/g/n HT20 ISM band; IEEE 802.11g/n HT40 ISM band.

RF output power: 802.11b — 26 ±1.5dBm; 802.11g — 26 ±1.5dBm (6-24Mbps), 25 ±1.5dBm (36-48Mbps), 24 ±1.5dBm (54Mbps).

Compatibility & Applications

This access point is suited to outdoor wireless network deployments requiring extended-range coverage, such as campus, industrial, or point-to-point wireless links. Buyers should confirm their network infrastructure supports 802.11b/g/n devices and, if using the reserve N-type connector, that a compatible external antenna is available before installation.
