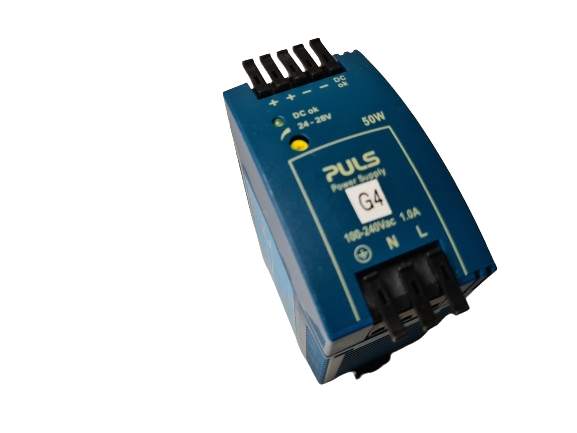

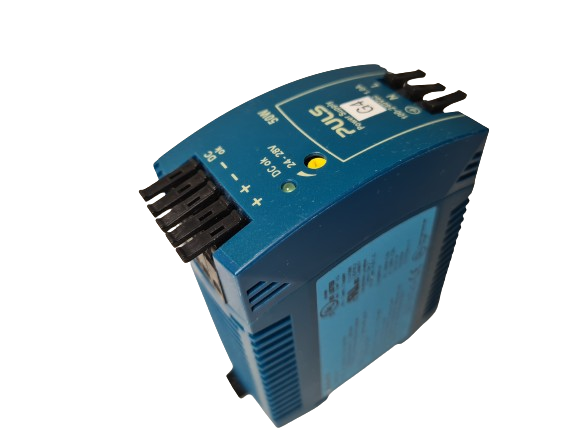

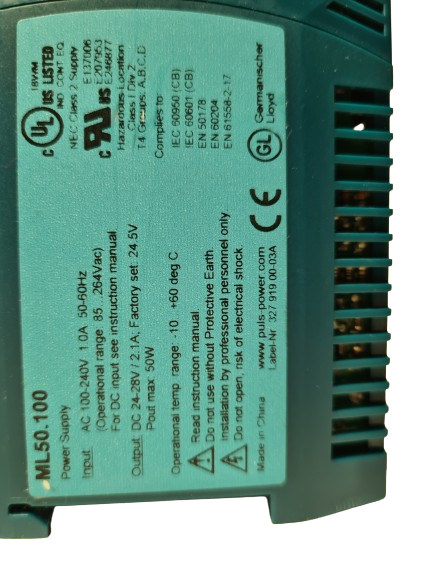

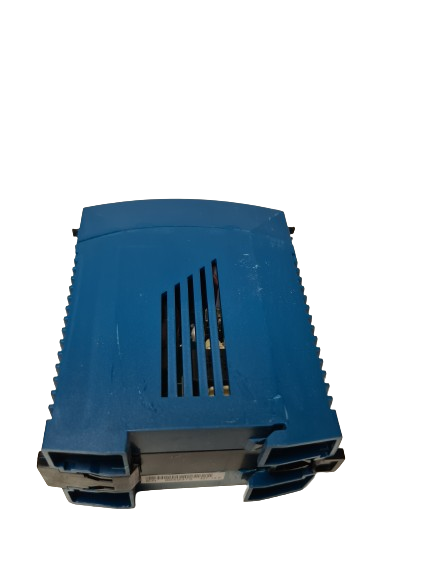

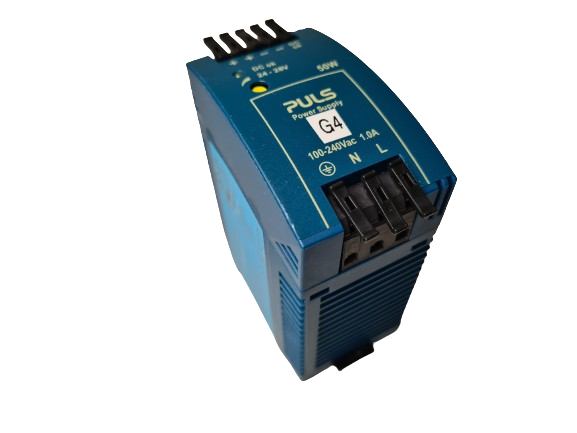

Puls ML50.100 DIN Rail Power Supply, 1-Phase, 24V / 2.1A

Compact single-phase DIN rail power supply with adjustable output for industrial control cabinets

Overview

This is a Puls ML50.100 DIN rail power supply, a compact single-phase unit that converts AC or DC mains input into a regulated, adjustable 24Vdc output at up to 2.1A. Delivering 50W of output power, it is designed for use in industrial control cabinets to power automation electronics, sensors, and low-voltage DC loads, with an adjustable output range to fine-tune voltage to the connected system's requirements.

Key Features

  • AC or DC input flexibility: Accepts a 100-240 VAC input, or alternatively a 110-300 VDC input, suiting a range of power sources.
  • Adjustable output voltage: Nominal 24Vdc output with an adjustment range of 24-28V, allowing output current from 1.8A (at 28V) up to 2.1A (at 24V).
  • Low output ripple and noise: Rated at a maximum of 50 mVpp for clean, stable DC power delivery.
  • Compact DIN rail mounting: Space-saving dimensions of 45 x 75 x 91 mm (W x H x D), suited to control cabinet installation.
  • Efficient operation: Typical power losses of only 6.2W, contributing to reduced cabinet heat load.

What's Included

Model Function Qty
ML50.100 1-phase DIN rail power supply, 24V/2.1A 1

Brand: Puls | Mounting: DIN Rail | System: 1-Phase

Technical Specifications

Product type: ML50.100, single-phase DIN rail power supply.

AC input voltage: 100-240 V (-15%/+10%).

DC input voltage: 110-300 V (-25%/+30%).

Power factor: 0.52.

Input inrush current: 17 A / 35 A.

Nominal output voltage: 24 Vdc.

Adjustment range: 24-28 V.

Output current range: 2.1-1.8 A (1.8A at 28V, 2.1A at 24V).

Output power: 50 W.

Ripple and noise voltage: Max. 50 mVpp.

Dimensions (W x H x D): 45 mm x 75 mm x 91 mm.

Weight: 240 g.

Power losses (typ.): 6.2 W.

Compatibility & Applications

This power supply is suited to industrial control cabinets and automation systems requiring a regulated, adjustable 24V DC supply from either AC or DC mains input. Buyers should confirm their available input voltage (AC or DC) falls within the rated ranges and that the 50W output capacity meets their connected load requirements before installation.
