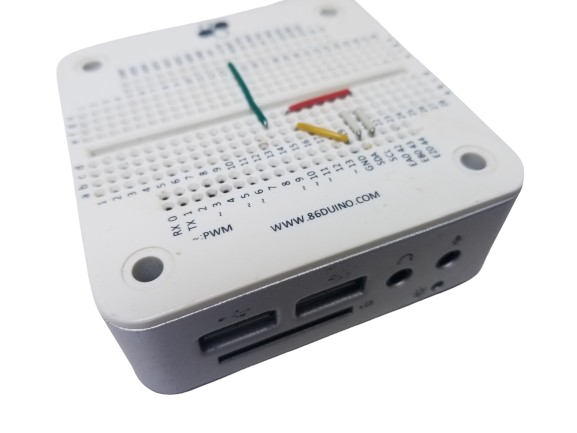

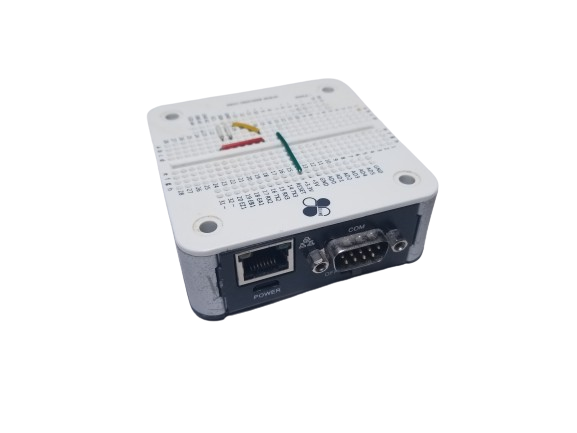

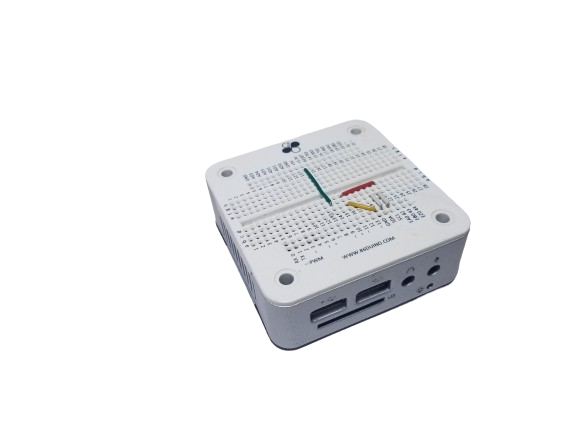

86Duino microcomputer

Regular price
Regular price
Sale price
86Duino microcomputer 86Duino microcomputer 86Duino microcomputer 86Duino microcomputer
  • CPU: 300 MHz Vortex86EX System-on-Chip with a 32-bit x86 processor (CPU can be overclocked to 500MHz )
  • RAM: 128 MB industrial-grade DDR3 SDRAM
  • Flash: 8 MB internal flash, preloaded with system BIOS and 86Duino firmware

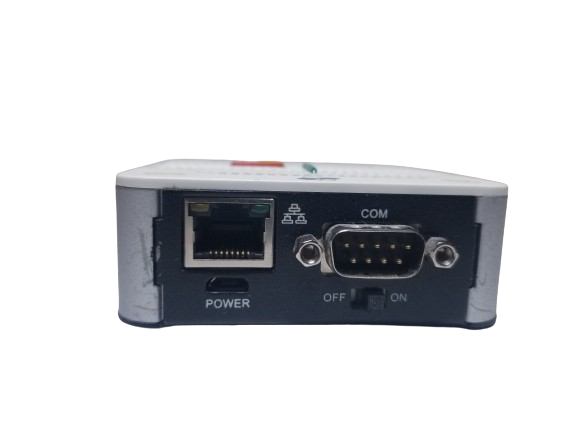

  • 10/100 Mbps Ethernet via an RJ-45 connector
  • 2 USB host interfaces (Type A USB female connector)
  • 1 SD slot
  • Integrated Realtek ALC262 HD audio chip with 1 Audio output and 1 microphone input
  • 1 RS-232 serial port (DB-9 connector)
  • The 5V power input connector is a Type B micro USB female connector, which is also the interface to the development computer to upload application code (sketch) from the 86Duino Coding IDE. And there is a power ON/OFF switch and a power indicator LED.
  • 26 digital I/O pins (GPIO)
  • 3 TTL UART (Serial interface)
  • 2 Encoder interfaces
  • 6 A/D input pins
  • 9 PWM output pins
  • 1 I²C interface
  • 5V and 3.3V output pin
  • System reset pin
  • Dimension: 78.6mm x 78mm x 28.3mm
  • Weight: 280g
