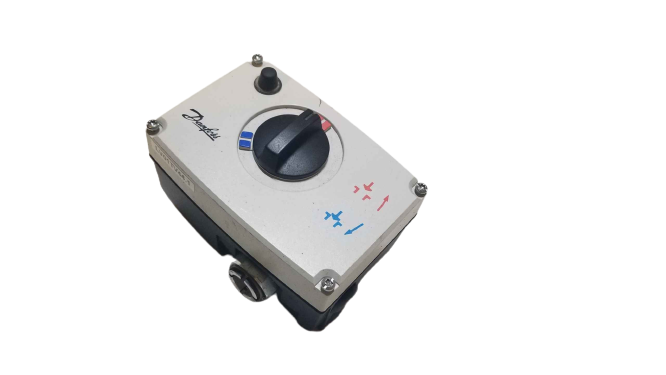

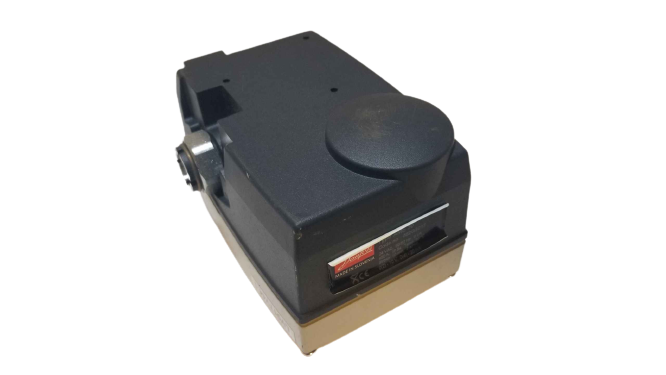

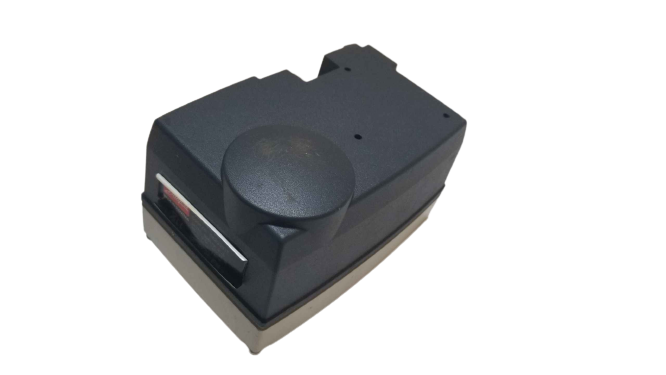

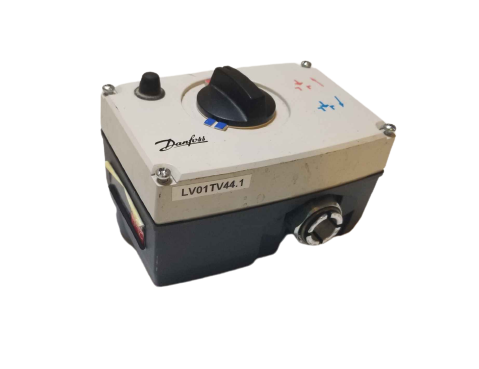

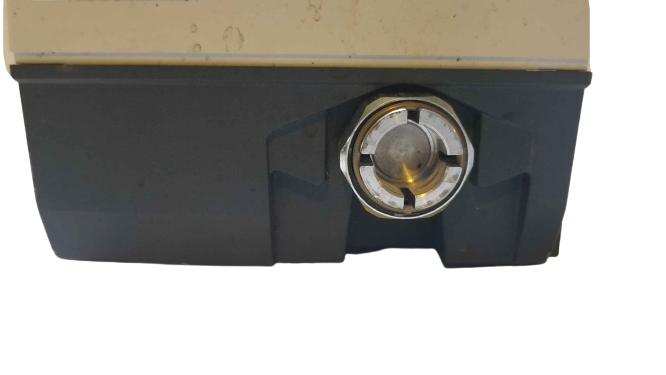

Danfoss AME 30 Valve Actuator 082G3017, 24V, 3s/mm, 450N

Electrical valve actuator for district heating and HVAC applications

Overview

This is a Danfoss AME 30 Valve Actuator (Model 082G3017), an electrical actuator designed for district heating and HVAC valve control applications. With a 450N closing force, modulating/3-point control signal support, and manual operation option, it provides reliable, precise valve positioning.

Key Features

  • Closing force: 450 N for reliable valve control.
  • Actuator speed: 3 s/mm, with a 10 mm stroke.
  • Flexible control signal: Accepts 0(4)-20 mA or 0(2)-10 V, modulating/3-point control.
  • Manual operation: Supported for manual override.
  • District heating application: Designed for use in district heating systems.
  • Standard supply voltage: 24 V AC, drawing 9 W.
  • Durable enclosure: IP54-rated, Protection Class II.

What's Included

Model Function Qty
082G3017 (AME 30) Electrical valve actuator 1

Brand: Danfoss | Product Group: Electrical Actuators | Grade of Enclosure: IP54 | Part Status: Active

Technical Specifications

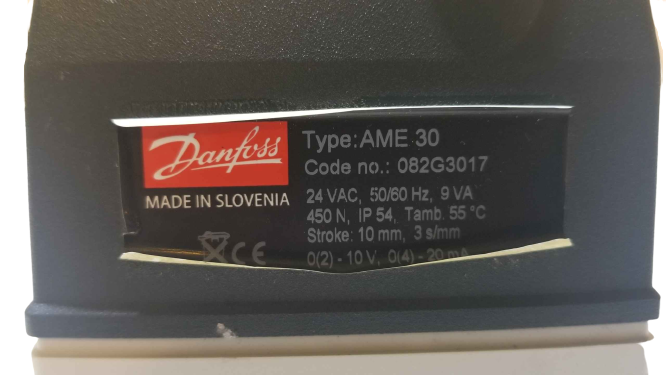

Model: 082G3017.

Type: AME 30.

Description: AME 30, 24V, 3s/mm, 10mm, 450N.

Gross weight: 1.69 kg.

Actuator speed: 3 s/mm.

Actuator type: Electrical.

Ambient temperature: 0°C to 55°C.

Application: District heating.

Closing force: 450 N.

Control input signal Y (current): 0(4)-20 mA, impedance 500 Ohm.

Control input signal Y (voltage): 0(2)-10 V, impedance 24 kOhm.

Control signal type: Modulating/3-point.

Grade of enclosure: IP54.

Manual operation: Yes.

Power consumption: 9 W.

Protection class: II.

Safety function: 0.

Speed type: Fast.

Spring return: No spring down (return); no spring up.

Storage temperature: -40°C to 70°C.

Stroke: 10 mm.

Supply voltage range: AC 24 V.

Turn time: 0 s.

Compatibility & Applications

This valve actuator is well suited to district heating and HVAC systems requiring reliable, precise valve control with modulating or 3-point signal input. Buyers should confirm the control signal type and 24 V AC power supply match their system requirements before installation.
