Nibe LR230A-002 LI Actuator 5Nm 100/240VAC

  • Nibe LR230A-002 LI Actuator 5Nm 100/240VAC
  • Nibe LR230A-002 LI Actuator 5Nm 100/240VAC
  • Nibe LR230A-002 LI Actuator 5Nm 100/240VAC
  • Nibe LR230A-002 LI Actuator 5Nm 100/240VAC
  • Nibe LR230A-002 LI Actuator 5Nm 100/240VAC
1 6

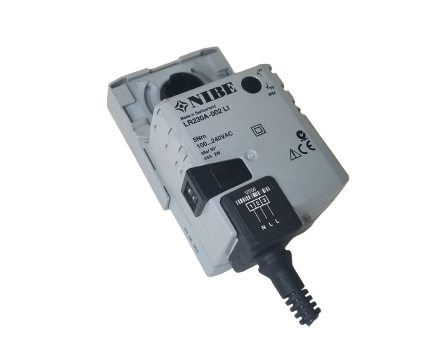

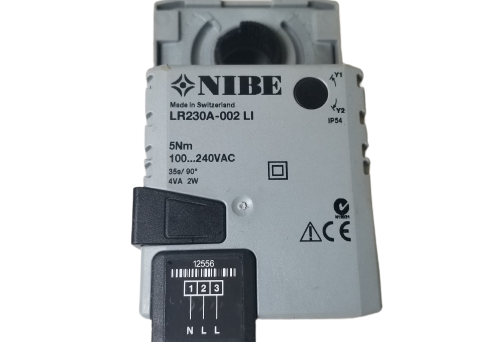

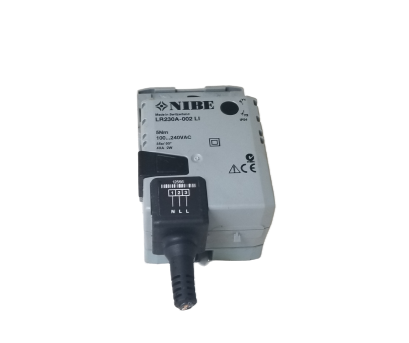

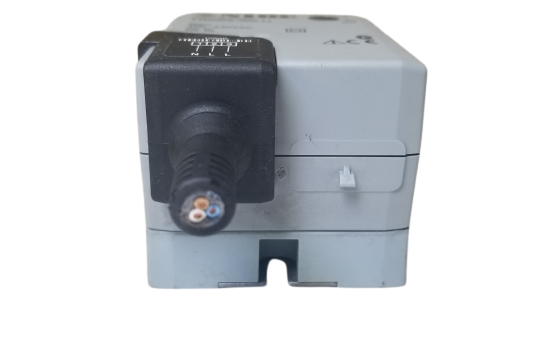

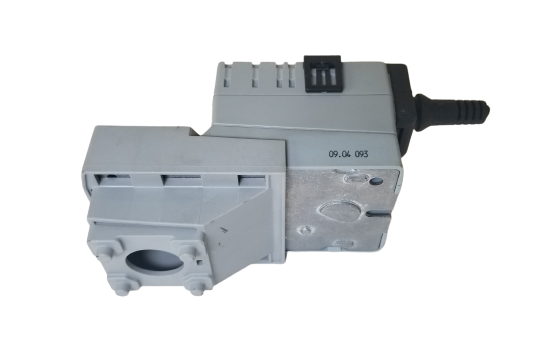

Nibe LR230A-002 LI Actuator 5Nm 100/240VAC

€120,00
€120,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Nibe LR230A-002 LI Actuator 5Nm 100/240VACNibe LR230A-002 LI Actuator 5Nm 100/240VACNibe LR230A-002 LI Actuator 5Nm 100/240VACNibe LR230A-002 LI Actuator 5Nm 100/240VACNibe LR230A-002 LI Actuator 5Nm 100/240VAC

1x Nibe LR230A-002 Li Actuator 5Nm 100/240VAC

Nominal voltage AC 100...240 V
Nominal voltage frequency 50/60 Hz
Nominal voltage range AC 85...265 V
Power consumption in operation 2 W
Power consumption in rest position 0.5 W
Power consumption for wire sizing 4 VA
Functional data Torque motor 5 Nm
Running time motor 90 s / 90°
Sound power level, motor 35 dB(A)
Degree of protection IEC/EN IP54
Degree of protection NEMA/UL NEMA 2
Rated impulse voltage supply / control 2.5 kV
Ambient humidity Max. 95% RH, non-condensing
Ambient temperature -30...50°C [-22...122°F]
Storage temperature -40...80°C [-40...176°F]
Weight Weight 0.47 kg
