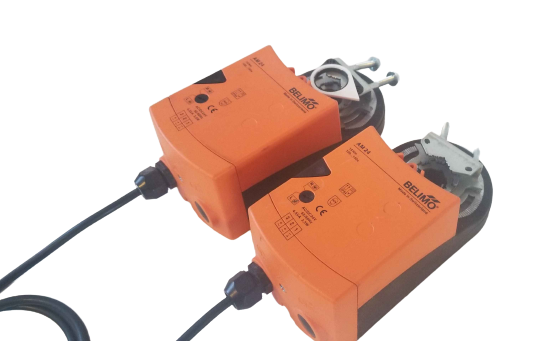

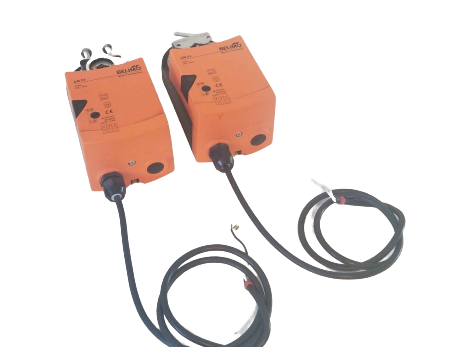

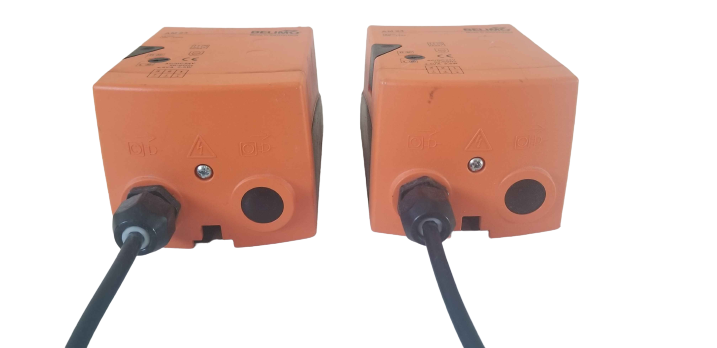

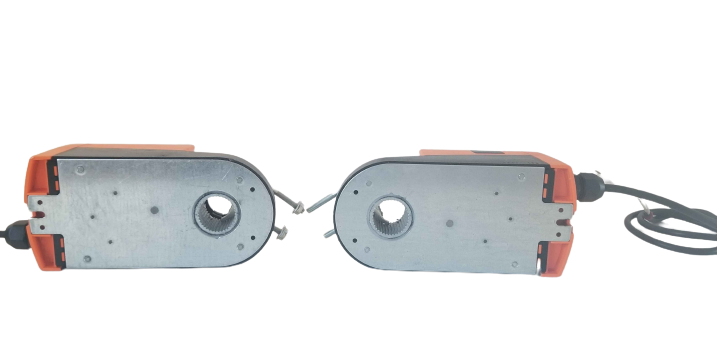

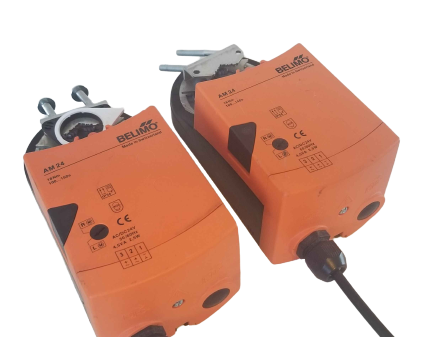

2x Belimo AM24 Rotary actuators for butterfly valves Rated voltage AC 24 V 50/60 Hz, DC 24 V AC 230 V 50/60 Hz
Functional range AC 19.2...28.8 V, DC 21.6...28.8 V AC/DC 198...264 V
Rating 4.5 VA (lmax 2.7 A @ 5 ms) 25 VA @ 50 Hz, 30 VA @ 60 Hz
(lmax 4.2A @ 1ms)
Power consumption 2.5W 3W @ 50Hz, 3.8W @ 60Hz
connection
- Engine
– Auxiliary switch (AM..-S only)
Cable 1 m, 3 x 0.75 mm2
Cable 1 m, 6 x 0.75 mm2
(direct connection
via screw terminals for 2 x wire 1.5 mm2
possible)
cable glands
PG 11 (included)
- AT THE..
– AM..-S
1 x for motor cable Ø 6...7 mm
1x for motor cable Ø 6...7 mm, 1x for
Switch cable Ø 8...9 mm
Auxiliary switch (only AM..-S)
– switching point
2 x EPU 6 (1.5) A, AC 250 V II
0...100% adjustable
Direction of rotation selectable with switch L / R
Manual override push button, self-resetting
Torque min. 18 Nm (at nominal voltage)
Angle of rotation max. 95° (mechanical stops adjustable
35...100% )
Running time 100...150 s (0...18 Nm)
Sound power level max. 45 dB (A)
Mechanical position indicator
Protection class III Protective extra-low voltage II, protective insulation
Degree of protection IP 54 (cable entry below)
Ambient temperature –30...+50°C
The price here is per lot
