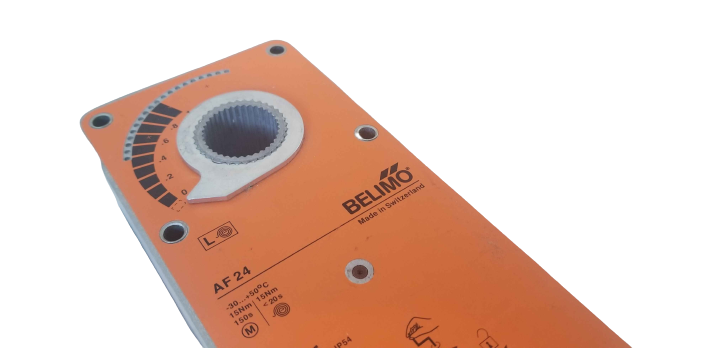

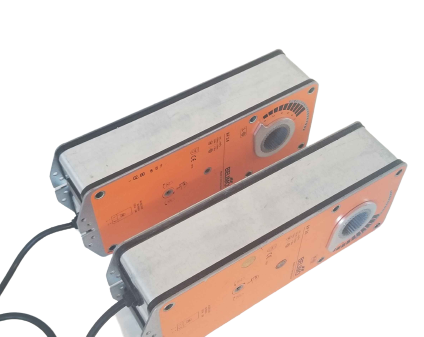

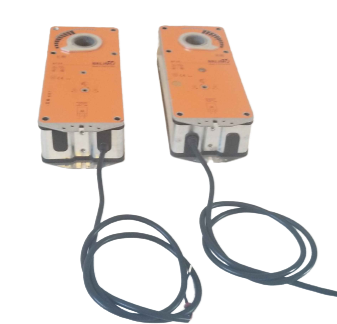

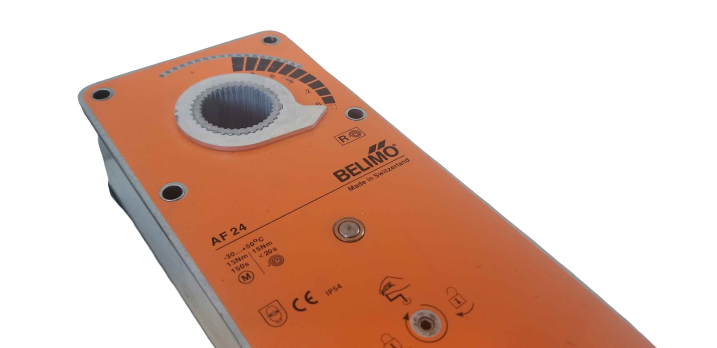

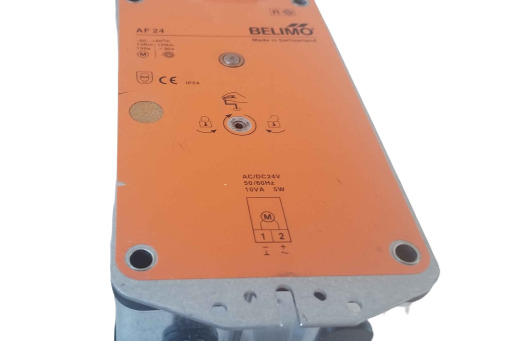

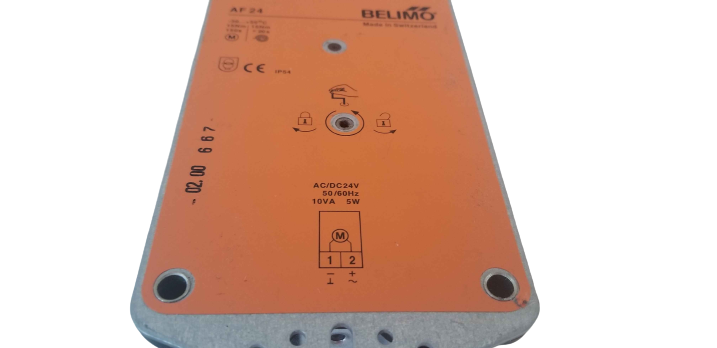

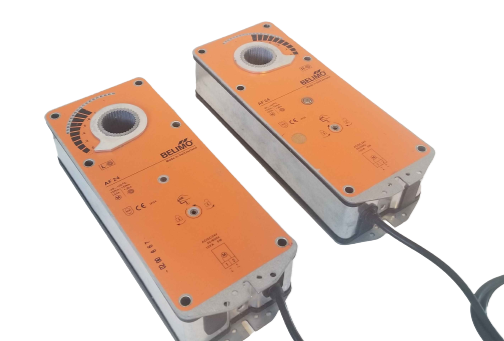

2x Nominal voltage AC 24 V 50/60 Hz, DC 24 V
Nominal voltage range AC 19.2...28.8 V, DC 21.6...26.4 V
For wire sizing 10 VA
Power consumption
– motoring 5 W
– holding 1.5 W
Connecting cable – motor 1 m long, 2×0.75 mm2
– auxiliary switches (AF…-S) 1 m long, 6×0.75 mm2
Auxiliary switch (AF...-S) 2×SPDT 6 (3) A, AC 250 V
– Switching points fixed 5 % , adjustable 28…94%
Direction of rotation selected by mounting L/R
Torque – motor min. 15 Nm (at rated voltage)
– spring return min. 15 Nm
Angle of rotation max. 95° (adjustable from 33% in 5.5% steps with a supplied limit stop)
Running time motor ≈ 150 s, spring return ≈ 16 s
Sound power level motor max. 45 dB(A), spring ≈ 62 dB(A)
Service life ≈ 60 000 operations
Position indication mechanical
Protection class (safety extra-low voltage)
Degree of protection IP 54 Ambient temp. range – 30… + 50 °C
The price here is per lot
