Ouman M41A15 Valve Actuator for 3-Leg Controlled Valves, 24 VAC

Proportional valve actuator for HVAC 3-way/3-leg valve control

Overview

This is an Ouman M41A15 valve actuator, Order No. M41A15, designed for use with 3-leg controlled valves in HVAC systems. Driven by a proportional 0/2-10V control signal, this actuator translates an analog control input into precise linear valve movement, providing modulating control of heating, cooling, or mixing valves within a building automation or HVAC control loop.

Key Features

  • Proportional signal control: Accepts a 0/2-10V control signal; factory setting closes the valve at 0(2)V and opens it at 10V.
  • Precise lifting height and force: 6.5mm lifting height with a setting force greater than 400N, over a 15-second running time.
  • Wide ambient operating range: Rated for 0°C to +50°C ambient operation (5-95% RH), with storage limits of -40°C to +70°C.
  • High media temperature tolerance: Suited to connected valve media temperatures up to +130°C.
  • Low power consumption: Draws just 5VA.
  • Flexible control signal input: Accepts 0-10 VDC or 2-10 VDC control signal, with 100kΩ input resistance.

What's Included

Model Function Qty
M41A15 Valve actuator for 3-leg controlled valves 1

Order No.: M41A15 | Brand: Ouman

Technical Specifications

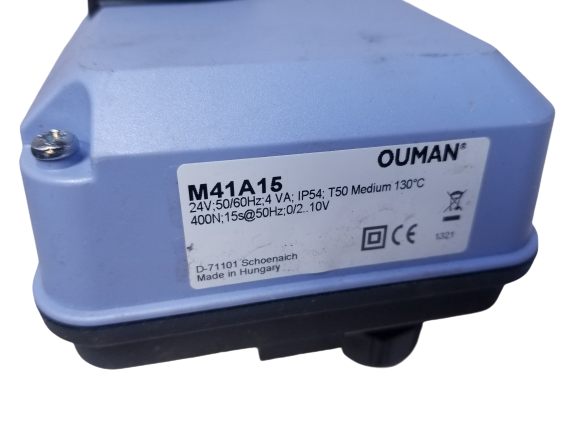

Product type: M41A15, valve actuator for 3-leg controlled valves.

Supply voltage: 24VAC; 50/60 Hz.

Power consumption: 5VA.

Control signal: 0/2-10V (factory setting: 0(2)V = closed position; 10V = open valve).

Lifting height: 6.5 mm.

Running time: 15 s.

Setting force: Greater than 400N.

Ambient temperature: 0°C to +50°C, 5-95% RH.

Storage temperature: -40°C to +70°C, 5-95% RH.

Media temperature (connected valve): Max. +130°C.

Control signal (Y): 0-10 VDC or 2-10 VDC.

Control signal input resistance: Ri = 100kΩ.

Max input signal: Max. 1kΩ.

Compatibility & Applications

This actuator is designed for HVAC systems using compatible 3-leg controlled valves, driven by a proportional 0/2-10V control signal from a building automation or HVAC controller. Buyers should confirm their control system provides a compatible analog output signal and that the actuator's lifting height, force, and mounting are suited to their specific valve before installation.
