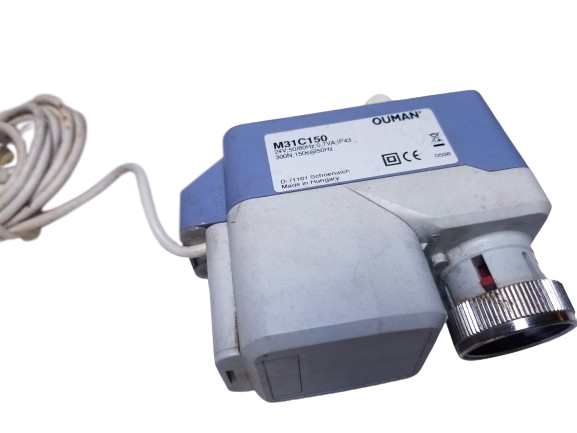

Ouman M31C150 3-Point Controlled Valve Motor, 24 VAC

3-point control valve actuator for HVAC valve control applications

Overview

This is an Ouman M31C150 valve motor, Order No. M31C150, a 3-point controlled actuator designed to drive HVAC control valves. Operating from a 24 VAC supply and using a 3-point steering method, this actuator provides reliable linear valve movement with a 300N force rating, suited to heating, cooling, or mixing valve applications within building automation systems.

Key Features

  • 3-point steering control: Driven via a standard 3-point control signal common in HVAC valve actuation.
  • 6.5mm movement length: Provides precise linear valve stroke control.
  • 300N force rating: Suited to driving standard HVAC control valves.
  • 150-second running time: Full stroke run time at a frequency of 50Hz.
  • IP43-rated enclosure: Housing class C, suited to protection against solid objects and light spray.
  • Low power consumption: Draws just 0.7 VA.
  • Included connection cable: Comes with a 1.5m connection cable.

What's Included

Model Function Qty
M31C150 3-point controlled valve motor 1

Order No.: M31C150 | Brand: Ouman | IP43 Rated

Technical Specifications

Product type: M31C150, valve motor.

Operating voltage: 24 VAC (+10%/-30%), 50/60 Hz.

Power consumption: 0.7 VA.

Steering method: 3-point.

Movement length: 6.5 mm.

Running time: 150 s at 50 Hz.

Force: 300N.

Housing class: C.

Enclosure class: IP43.

Connection cable: 1.5 m.

Operating temperature: 0°C to 60°C.

Weight: 0.4 kg.

Compatibility & Applications

This valve motor is suited to HVAC systems using compatible valves requiring a 3-point controlled actuator, such as heating, cooling, or mixing valve applications. Buyers should confirm their control system provides a compatible 3-point control signal and that the actuator's movement length, force, and mounting are suited to their specific valve before installation.
