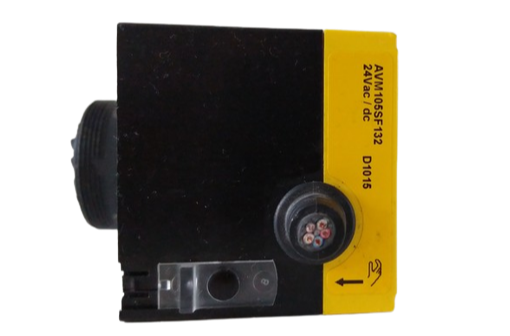

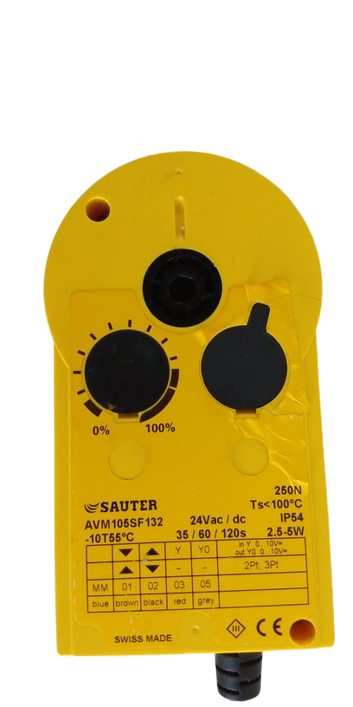

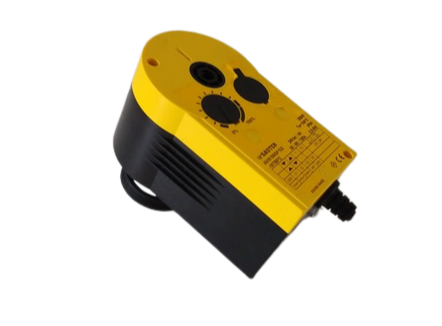

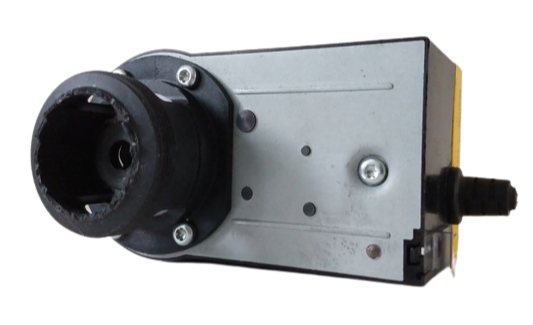

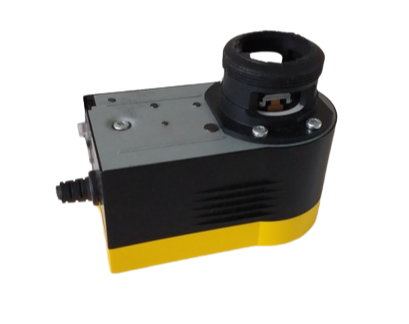

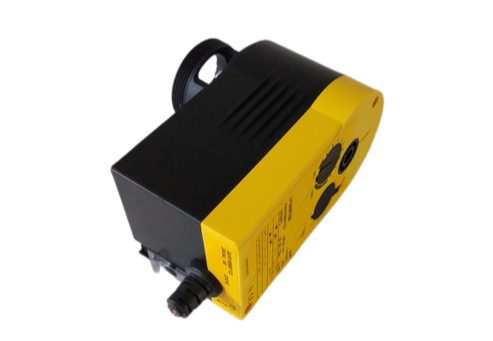

Sauter AVM105SF132 Valve Actuator — 250N, 24VAC/DC

SUT-based electric valve actuator with adjustable running time and multiple control input options

Overview

The Sauter AVM105SF132 is an electric valve actuator built on Sauter Universal Technology (SUT), delivering a 250N pushing force with an 8mm stroke for controlling HVAC valves. Operating on a 24V AC/DC supply, it supports 3-point, 2-point, or 0-10V control signals with selectable running times of 35, 60, or 120 seconds, and features an equal-percentage characteristic that can be converted to linear. Rated IP54 and suited for medium temperatures from 0 to 100°C, this actuator is a versatile component for building automation valve control applications.

Key Features

  • Flexible control input: Supports 3-point, 2-point, or continuous 0-10V control signals.
  • Adjustable running time: Selectable between 35, 60, or 120 seconds to match application requirements.
  • 250N pushing force: Suitable for a range of HVAC control valve sizes.
  • Convertible valve characteristic: Equal-percentage characteristic that can be converted to linear for different control needs.
  • Wide medium temperature range: Rated for valve media temperatures from 0°C to 100°C.
  • IP54 protection: Suitable for typical mechanical room and plant room installation environments.
  • Universal 24V AC/DC power: Compatible with both AC and DC 24V control system supplies.

What's Included

Item Function Qty
Sauter AVM105SF132 Actuator Electric valve actuator, 250N, 24VAC/DC 1

Brand: Sauter | Model: AVM105SF132

Technical Specifications

Adjustment time: 35, 60, or 120 s.

Control: 3-point, 2-point, or 0-10V.

Lifting force: 250 N.

Medium temperature: 0-100°C.

Power: 24 VAC / 24 VDC.

Protection: IP54.

Stroke: 8 mm.

Weight: 0.70 kg.

Compatibility & Applications

This actuator is designed for HVAC control valve applications requiring precise, adjustable positioning, such as heating, cooling, or ventilation valve control in commercial buildings. Its flexible control input options and universal 24V AC/DC power make it a practical replacement or upgrade component for facilities standardizing on Sauter's SUT actuator platform.
