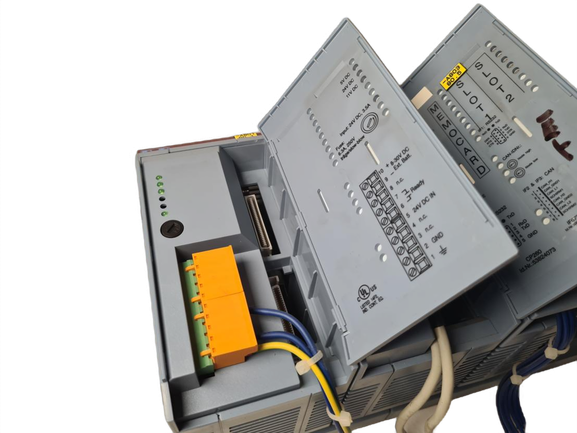

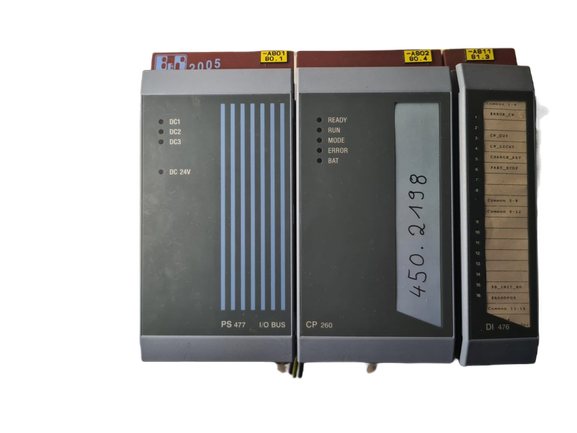

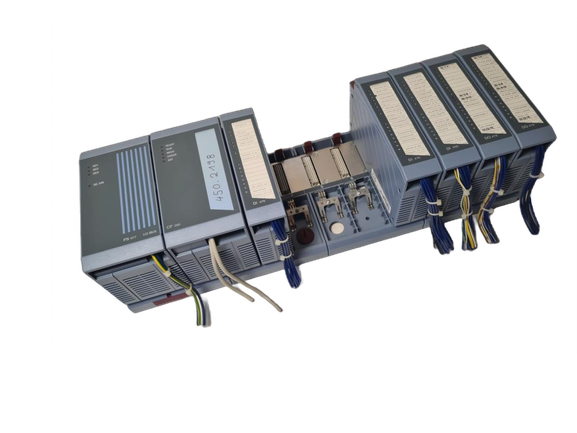

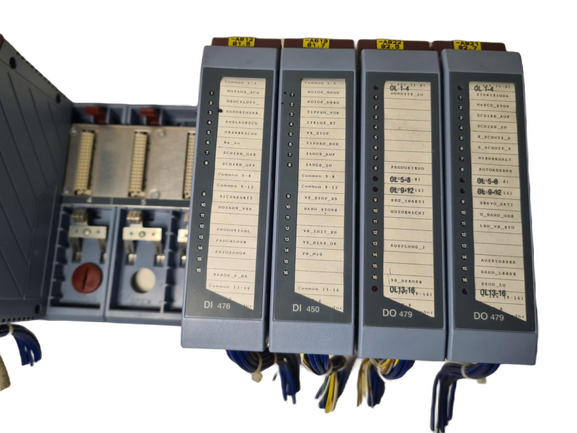

B&R System 2005 Module Lot — CP260 CPU, PS477, 2x DI476, DI450, 2x DO479

Mixed lot of B&R System 2005 modular PLC hardware, 24VDC I/O

Overview

This lot is a set of 7 B&R System 2005 modules: a CP260 CPU module, a PS477 power supply module, two DI476 digital input modules, one DI450 digital input module, and two DO479 digital output modules. Together, these components form a working core of a B&R System 2005 rack — a modular PLC platform — combining central processing, power supply, and both digital input and output I/O capability at 24V DC.

Key Features

  • CP260 — CPU Module: Central processing unit for the B&R System 2005 rack, executing control program logic across the connected I/O modules.
  • PS477 — Power Supply Module: Provides regulated power distribution to the backplane and connected modules.
  • DI476 — 16-Channel Digital Input Module: 16 digital inputs at 24V DC, 1.2ms response, sink/source capable, with 4 electrically isolated input groups.
  • DI450 — Digital Input Module: Additional digital input channel capacity for expanding the rack's field signal acquisition.
  • DO479 — 16-Channel Digital Output Module: 16 transistor outputs at 24V DC, rated 0.5A per channel (4.0W), for switching field devices directly from the PLC.
  • Modular backplane-mounted design: All modules install directly into a compatible B&R System 2005 backplane for straightforward system assembly.

What's Included (7 Modules Total)

Model Function Qty
CP260 (3CP260.60) CPU module 1
PS477 Power supply module 1
DI476 (3DI476.6) 16-channel digital input module, 24VDC 2
DI450 (3DI450.6) Digital input module, 24VDC 1
DO479 (3DO479.6) 16-channel digital output module, 24VDC 2

Technical Specifications

DI476: 16 inputs, 24V DC, 1.2ms response, sink/source, 4 electrically isolated groups (requires TB170 terminal block, ordered separately).

DO479: 16 transistor outputs, 24V DC, 0.5A per channel, 4.0W.

System platform: B&R System 2005 modular backplane architecture.

Compatibility & Applications

All modules belong to B&R's System 2005 modular PLC platform and can be combined with other System 2005 modules (analog I/O, communication modules, additional backplane slots) to build out a complete automation station. This lot is well suited to industrial machine control and process automation applications requiring 24V DC digital signal acquisition and switching alongside dedicated CPU processing.
