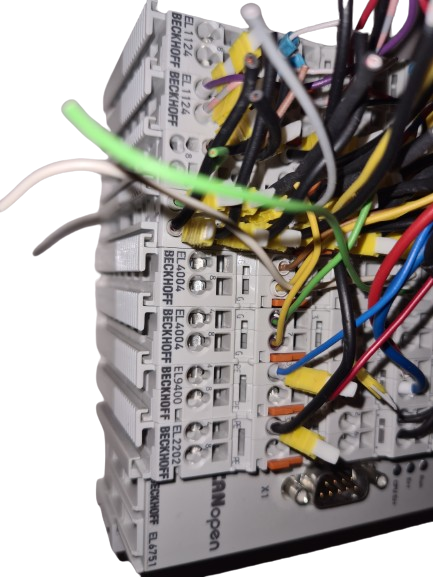

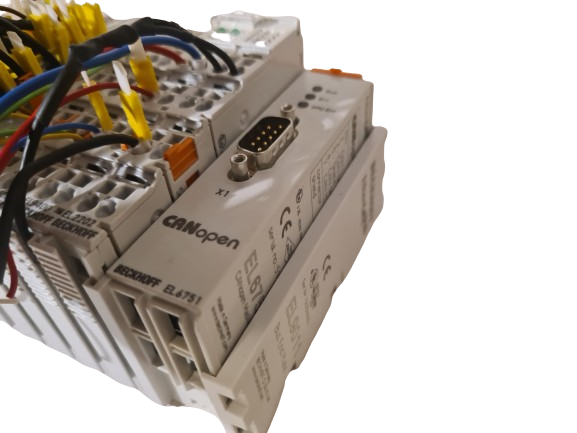

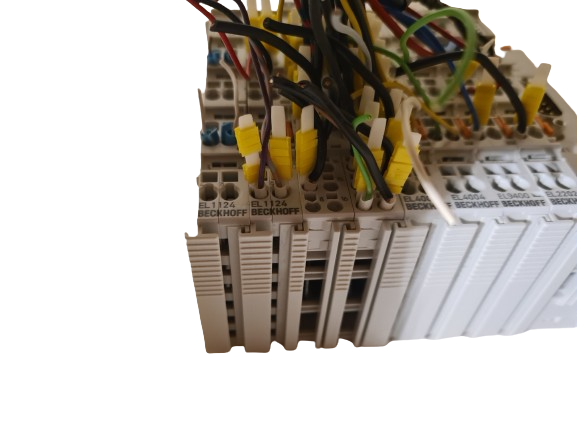

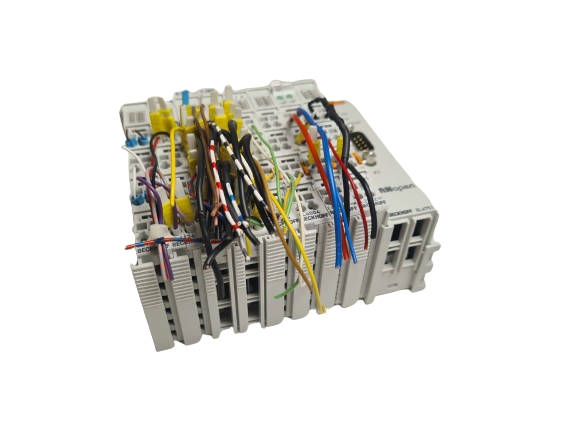

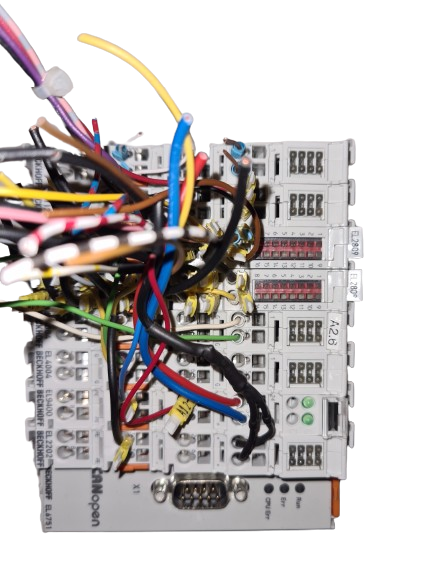

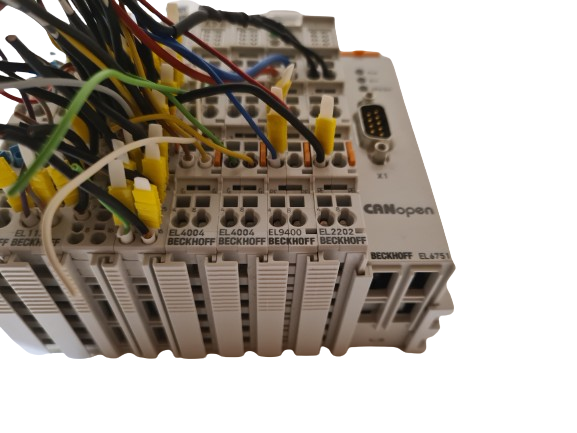

Beckhoff EL6751 EtherCAT Terminal1-channel communication interface CANopen master/slave & EL1124 EtherCAT Terminal 4 channel digital input Module & Other

€700,00
€700,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Beckhoff EL6751 EtherCAT Terminal1-channel communication interface CANopen master/slave & EL1124 EtherCAT Terminal 4 channel digital input Module & OtherBeckhoff EL6751 EtherCAT Terminal1-channel communication interface CANopen master/slave & EL1124 EtherCAT Terminal 4 channel digital input Module & OtherBeckhoff EL6751 EtherCAT Terminal1-channel communication interface CANopen master/slave & EL1124 EtherCAT Terminal 4 channel digital input Module & OtherBeckhoff EL6751 EtherCAT Terminal1-channel communication interface CANopen master/slave & EL1124 EtherCAT Terminal 4 channel digital input Module & OtherBeckhoff EL6751 EtherCAT Terminal1-channel communication interface CANopen master/slave & EL1124 EtherCAT Terminal 4 channel digital input Module & OtherBeckhoff EL6751 EtherCAT Terminal1-channel communication interface CANopen master/slave & EL1124 EtherCAT Terminal 4 channel digital input Module & OtherBeckhoff EL6751 EtherCAT Terminal1-channel communication interface CANopen master/slave & EL1124 EtherCAT Terminal 4 channel digital input Module & Other

Beckhoff EL6751 EtherCAT Terminal1-channel communication interface CANopen master/slave & EL1124 EtherCAT Terminal 4 channel digital input Module & Other

1x Beckhoff EL6751 EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave

Number of fieldbus channels    1
Weight  70 g
Operating/storage temperature  -25… +60 °C/-40…+85 °C
Protect. rating/installation pos. IP20/variable
Material    polycarbonate
Dimensions (W x H x D)  24 mm x 100 mm x 52 mm

2x Beckhoff EL4004  EtherCAT Terminal, 4-channel analog output

Number of outputs    4
Power supply  24 V DC via power contacts
Signal voltage  0…10 V
Resolution    12 bit
Electrical isolation  500 V (E-bus/signal voltage)
Conversion time    ~ 250 µs
Weight    approx. 85 g
Operating/storage temperature -25…+60°C/-40…+85°C
Protect. rating/installation pos. IP20/variable
Material    polycarbonate
Dimensions (W x H x D)  12 mm x 100 mm x 68 mm

1x Beckhoff EL9400 Power supply terminal for E-bus

Technology    power supply terminal
Input voltage     24 V DC
Input current    typ. 70 mA + (E-bus/4)
Output voltage    5 V for E-bus supply
Output current    2 A
Power contacts    max. 24 V DC/max. 10 A
Weight    approx. 65 g
Operating/storage temperature  0…+55°C/-25…+85°C
Protect. rating/installation pos.  IP20/variable
Material    polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm

2x  Beckhoff EL1124  EtherCAT Terminal, 4-channel digital input

Connection technology 2-/3-wire
Number of inputs    4
Nominal voltage    5 V DC
“0” signal voltage    < 0.8 V
“1” signal voltage    > 2.4 V
Input current    typ. 50 µA
Input filter    typ. 0.05 μs
Electrical isolation 500 V (E-bus/field potential)
Weight    approx. 55 g
Operating/storage temperature 0…+55°C/-25…+85°C
Protect. rating/installation pos. IP20/variable
Material    polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm

1x Beckhoff EL2202  EtherCAT Terminal, 2-channel digital output

Connection technology  4-wire
Number of outputs  2
Nominal voltage    24 V DC
Load type ohmic, inductive, lamp load
Max. output current 0.5 A (short-circuit proof in push operation)
Output stage    push-pull, high-ohmic
Short-circuit current    typ. 4 A/150 µs
Breaking energy < 150 mJ/channel
Switching times    typ. TON: < 1 µs, typ. TOFF: < 1 µs
Weight    approx. 60 g
Operating/storage temperature  0…+55°C/-25…+85°C
Protect. rating/installation pos.  IP20/variable
Material    polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm

2x Beckhoff EL2809 EtherCAT Terminal16-channel digital output

Connection technology  1-wire
Number of outputs  16
Nominal voltage    24 V DC
Load type  ohmic, inductive, lamp load
Max. output current    0.5 A (short-circuit proof) per channel
Short-circuit current    typ. < 2 A
Breaking energy    < 150 mJ/channel
Switching times    typ. TON: 60 µs, typ. TOFF: 300 µs
Current consumption E-bus    typ. 140 mA
Electrical isolation    500 V (E-bus/field potential)
Bit width in the process image    16 outputs
Weight    approx. 70 g
Operating/storage temperature  -25…+60°C/-40…+85°C
Protect. rating/installation pos.  IP20/variable
Design form    HD (High Density) housing with signal LEDs
Material    polycarbonate
Dimensions (W x H x D)  12 mm x 100 mm x 68 mm

price here is per lot
