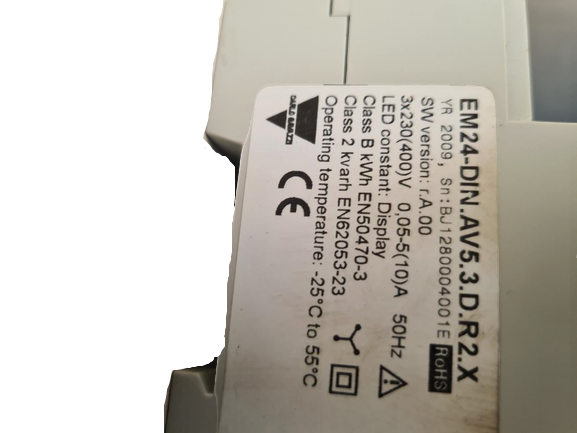

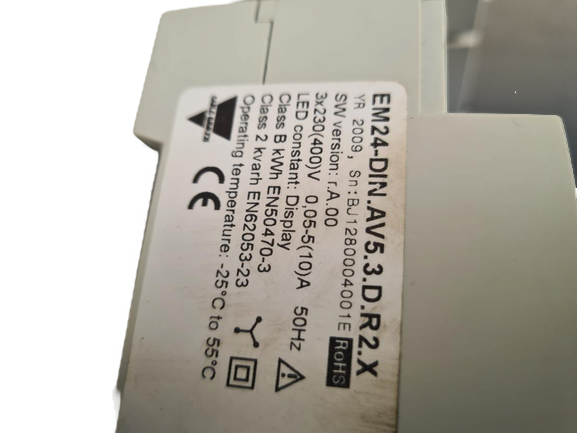

Carlo Gavazzi EM24-DIN.AV5.3.D.R2.X Victron Energy Meter

€280,00
€280,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Carlo Gavazzi EM24-DIN.AV5.3.D.R2.X Victron Energy Meter Carlo Gavazzi EM24-DIN.AV5.3.D.R2.X Victron Energy Meter Carlo Gavazzi EM24-DIN.AV5.3.D.R2.X Victron Energy Meter Carlo Gavazzi EM24-DIN.AV5.3.D.R2.X Victron Energy Meter Carlo Gavazzi EM24-DIN.AV5.3.D.R2.X Victron Energy Meter Carlo Gavazzi EM24-DIN.AV5.3.D.R2.X Victron Energy Meter

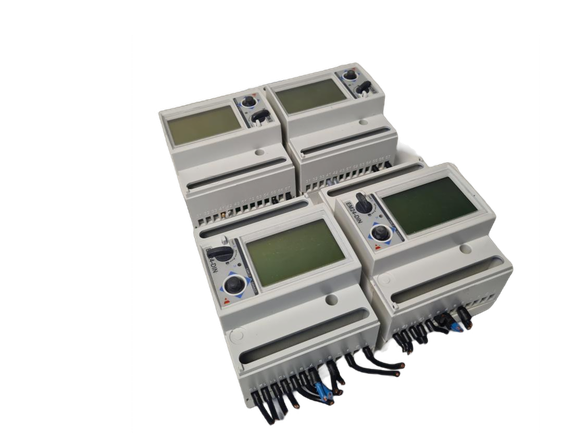

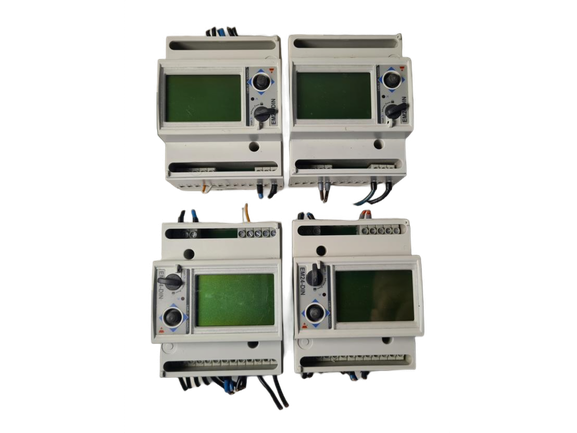

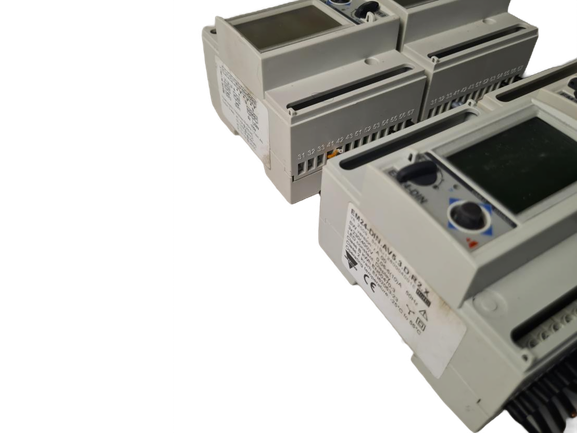

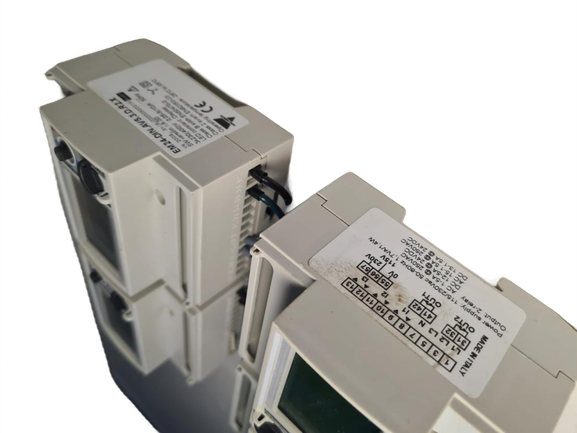

4x Carlo Gavazzi EM24-DIN.AV5.3.D.R2.X Victron Energy Meter
Remote status
DMD synchronization
Pulse counting
Tariff management
Frequency 20Hz max, duty cycle 50%
Pulse weight From 0.001 to 999.9 m3 or kWh per pulse
Contact measuring voltage 5 V dc +/- 5%
Contact measuring current 10 mA max
Input impedance 680Ω
Open contact resistance ≥500 kΩ
Closed contact voltage ≤100 Ω
Configuration parameters Input function
Pulse weight
Configuration mode Via joystick or UCS software (IS) Connection type Screw terminals
Maximum number of outputs 2
Type Open collector
Function Pulse output or alarm output
Features VON 1.2 V dc, max. 100 mA
VOFF 30 V dc max
Configuration parameters
Output function (pulse/alarm)
Output normal status
Pulse weight (0.001 to 10 kWh/pulse or kvarh/pulse)
Pulse duration (30 or 100 ms)

Operating temperature -25°C to +55°C
Storage temperature -30°C to +70°C
Protection degree
Front IP50
Screw terminals IP20
Housing DIN
Dimensions (WxHxD) 71 x 90 x 64.5 mm
Material Nylon PA66,
self-extinguishing: UL 94 V-0

The price here is per lot
