Beckhoff EK1100 EtherCAT Coupler & EL1809 EtherCAT Terminal 16 channel digital input & EL2809 EtherCAT Terminal16-channel digital output Module

Regular price
€550,00
Regular price
Sale price
€550,00
Beckhoff EK1100 EtherCAT Coupler & EL1809 EtherCAT Terminal 16 channel digital input & EL2809 EtherCAT Terminal16-channel digital output ModuleBeckhoff EK1100 EtherCAT Coupler & EL1809 EtherCAT Terminal 16 channel digital input & EL2809 EtherCAT Terminal16-channel digital output ModuleBeckhoff EK1100 EtherCAT Coupler & EL1809 EtherCAT Terminal 16 channel digital input & EL2809 EtherCAT Terminal16-channel digital output ModuleBeckhoff EK1100 EtherCAT Coupler & EL1809 EtherCAT Terminal 16 channel digital input & EL2809 EtherCAT Terminal16-channel digital output ModuleBeckhoff EK1100 EtherCAT Coupler & EL1809 EtherCAT Terminal 16 channel digital input & EL2809 EtherCAT Terminal16-channel digital output ModuleBeckhoff EK1100 EtherCAT Coupler & EL1809 EtherCAT Terminal 16 channel digital input & EL2809 EtherCAT Terminal16-channel digital output ModuleBeckhoff EK1100 EtherCAT Coupler & EL1809 EtherCAT Terminal 16 channel digital input & EL2809 EtherCAT Terminal16-channel digital output Module

Beckhoff EK1100 EtherCAT Coupler & EL1809 EtherCAT Terminal 16 channel digital input & EL2809 EtherCAT Terminal16-channel digital output Module

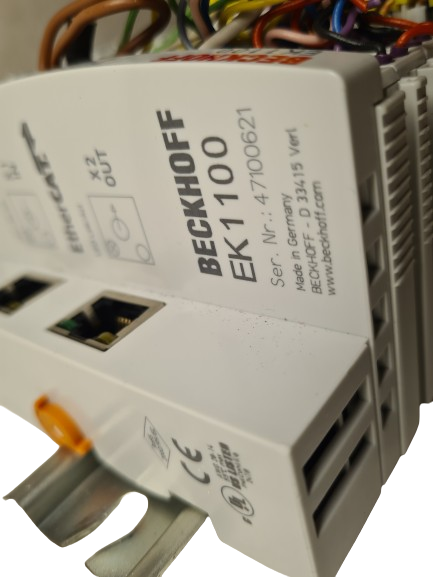

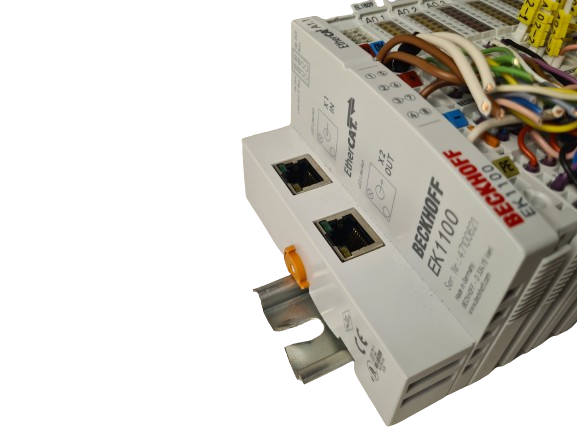

1x Beckhoff EK1100 EtherCAT Coupler

Data transfer rates    100 Mbit/s
Power supply    24 V DC
Power contacts    max. 24 V DC/max. 10 A
Electrical isolation 500 V (power contact/supply voltage/Ethernet)
Operating/storage temperature -25…+60°C/-40…+85°C
Protect. rating/installation pos.    IP20/variable
Dimensions (W x H x D) 44 mm x 100 mm x 68 mm

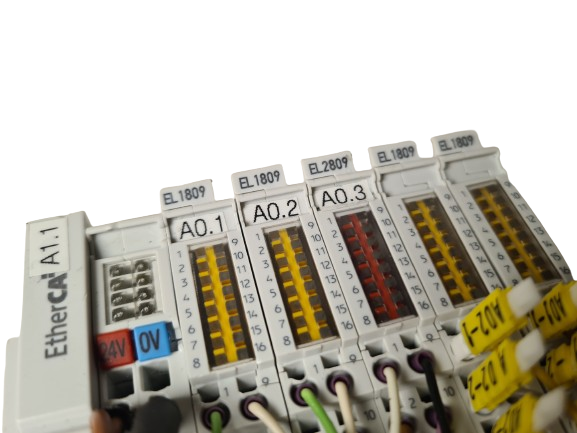

4x Beckhoff EL1809 EtherCAT Terminal 16 channel digital input Module

Connection technology 1-wire
Number of inputs    16
Nominal voltage    24 V DC
Input filter    typ. 3.0 ms
Electrical isolation    500 V (E-bus/field potential)
Weight    approx. 65 g
Operating/storage temperature -25…+60°C/-40…+85°C
Material    polycarbonate
Dimensions (W x H x D)    12 mm x 100 mm x 68 mm

1x Beckhoff EL2809 EtherCAT Terminal16-channel digital output Module

Connection technology 1-wire
Number of outputs    16
Nominal voltage    24 V DC
Weight    approx. 70 g
Operating/storage temperature  -25…+60°C/-40…+85°C
Material    polycarbonate
Dimensions (W x H x D)  12 mm x 100 mm x 68 mm

price here is per lot
