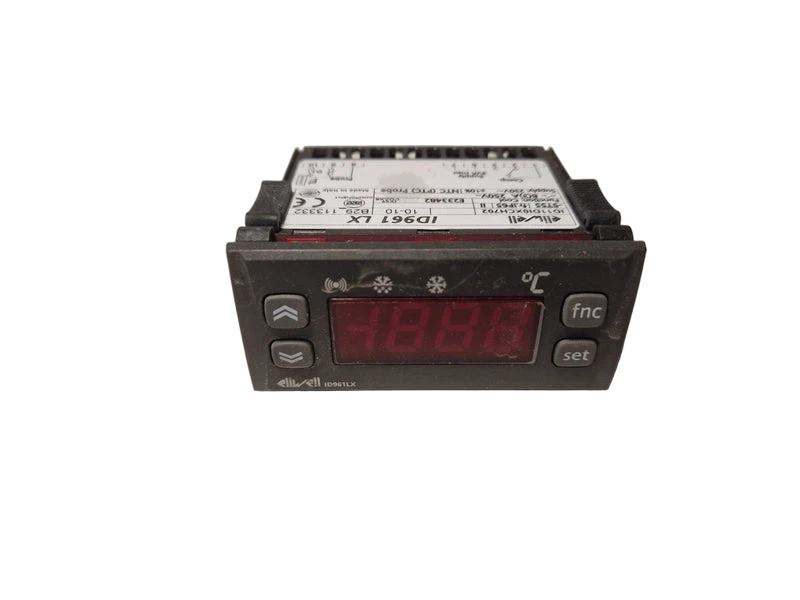

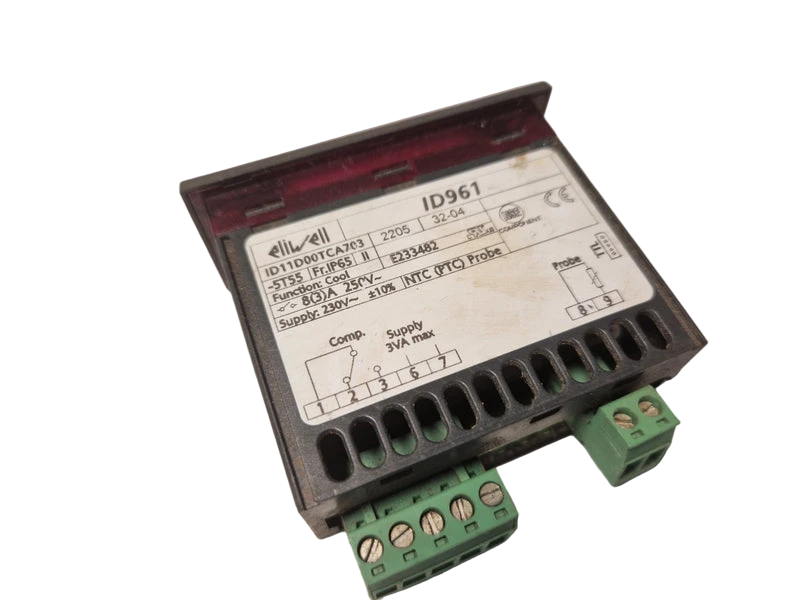

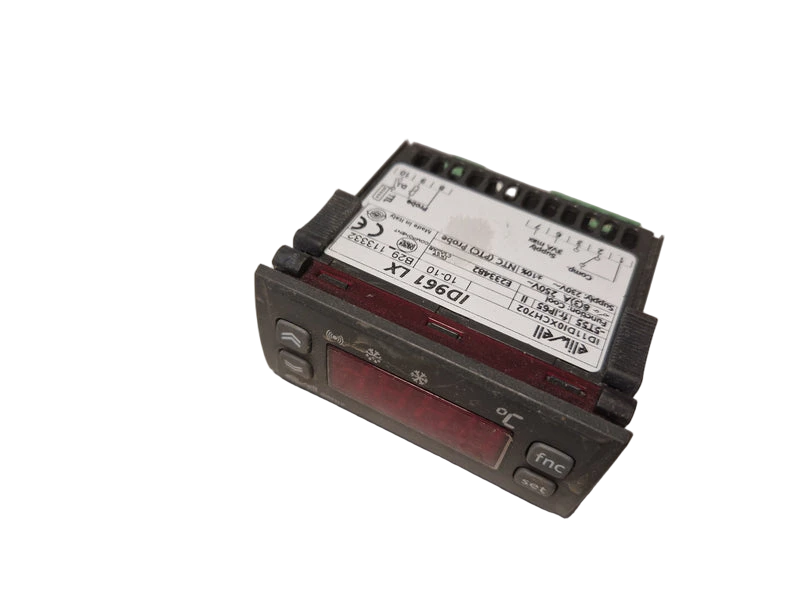

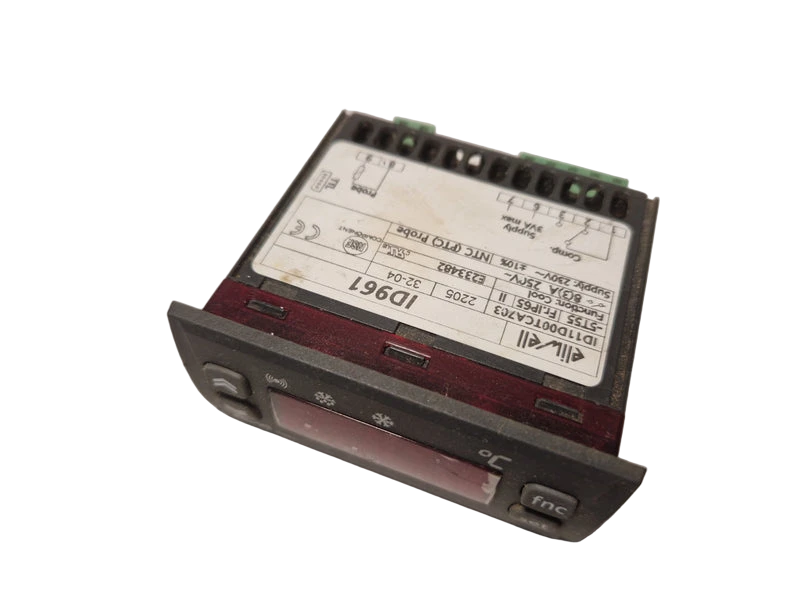

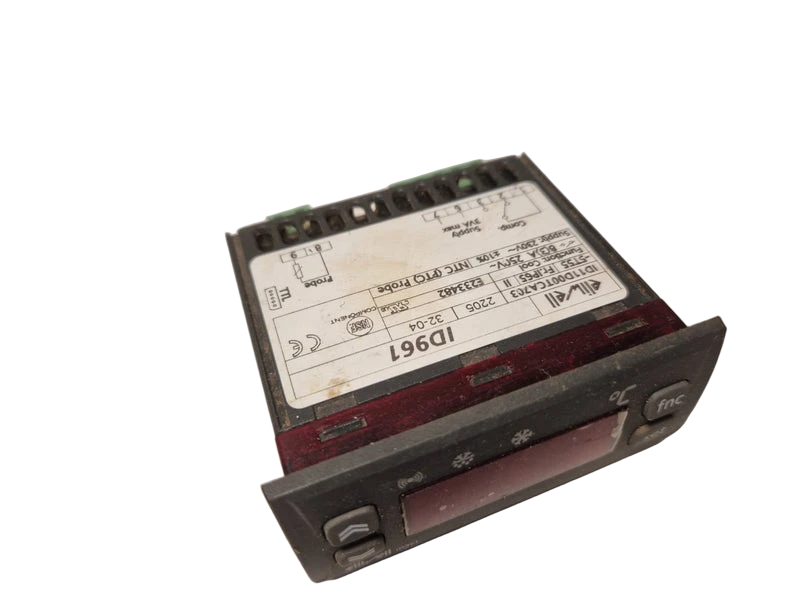

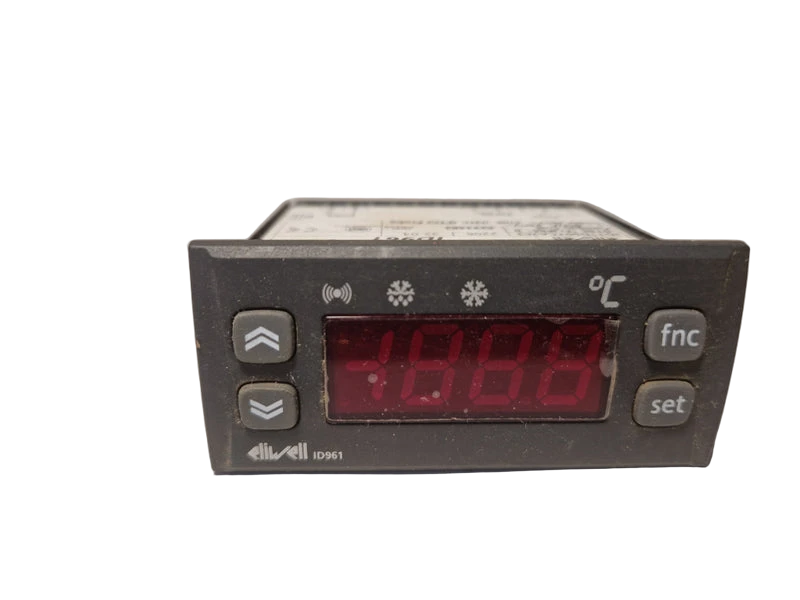

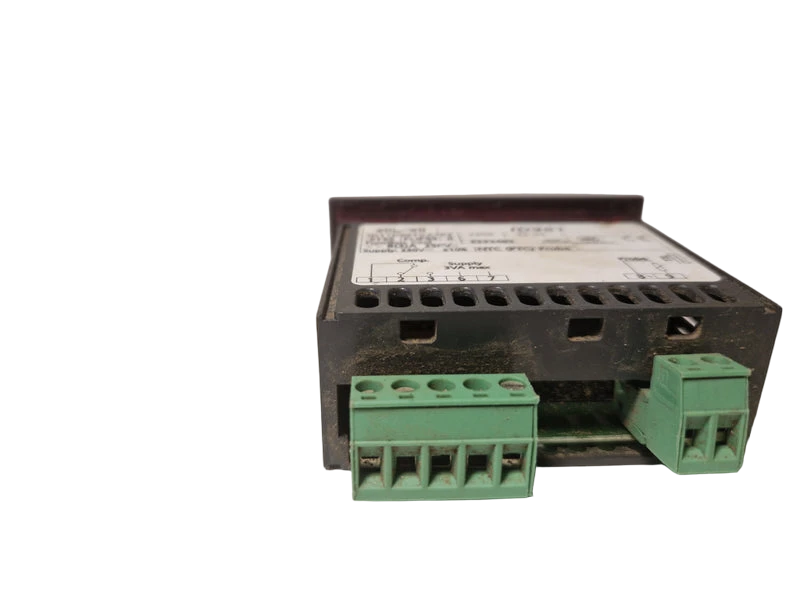

Eliwell ID961 Digital Temperature Controller — ID11D00TCA703, 12V AC/DC

Single-stage refrigeration thermostat with timed defrost and IP65 protection

Overview

This is an Eliwell ID961, Part No. ID11D00TCA703, a single-stage electronic temperature controller from Eliwell's ID series of refrigeration regulators, powered by a 12V AC/DC supply. The ID961 is positioned for positive-temperature applications with air defrosting, combining a single NTC/PTC probe input with one relay output, timed defrost control, anti-short cycle protection, and probe fault protection in a compact IP65-rated housing.

Key Features

  • Configurable NTC/PTC probe input: Single probe input selectable between NTC or PTC sensor types by parameter.
  • Timed defrost control: Defrost cycles set by time interval with compressor stop, suited to air-defrost applications.
  • Anti-short cycle protection: Prevents rapid compressor cycling, protecting compressor longevity.
  • Probe fault protection: Detects and manages sensor faults to maintain safe, predictable operation.
  • Wide measuring range: -50°C to +90°C, covering a broad range of refrigeration and low-temperature monitoring needs.
  • Sealed, compact housing: IP65-rated protection in a 74x32mm front panel footprint with 67mm built-in depth, suited to space-constrained installations.

What's Included

Model Function Qty
ID961 (ID11D00TCA703) Single-stage digital temperature controller 1

Technical Specifications

Supply voltage: 12V AC/DC, max. 1.5VA.

Probe type: NTC or PTC (configurable).

Relay outputs: 1.

Display: 3½ digits.

Measuring range: -50°C to +90°C.

Protection rating: IP65.

Dimensions: 74 x 32mm front panel; 67mm built-in depth.

Compatibility & Applications

Part of Eliwell's ID series regulators for refrigeration units, the ID961 is designed for positive-temperature applications with air defrosting, such as commercial fridges and display cabinets where a compact, single-stage controller with reliable defrost timing is needed.
