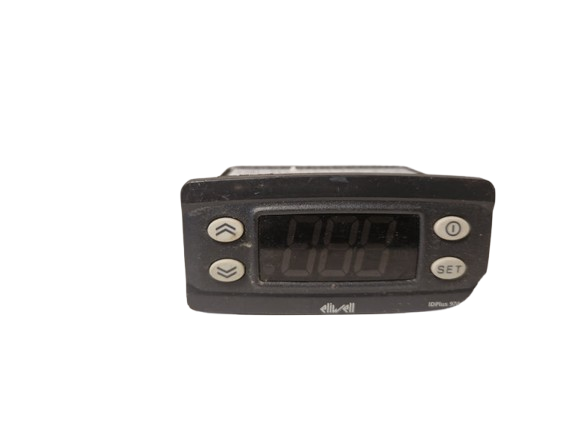

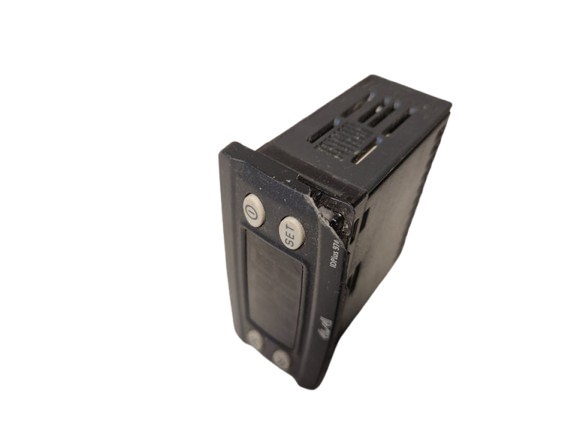

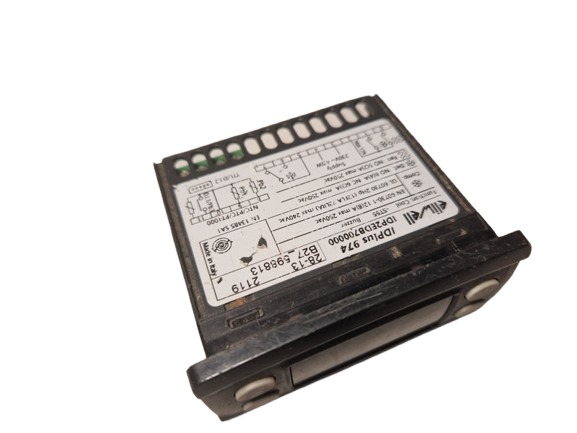

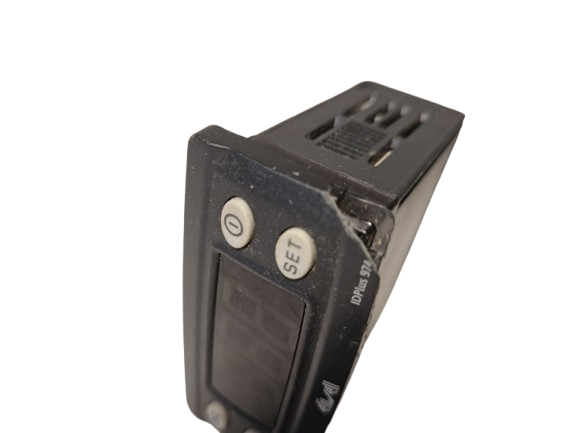

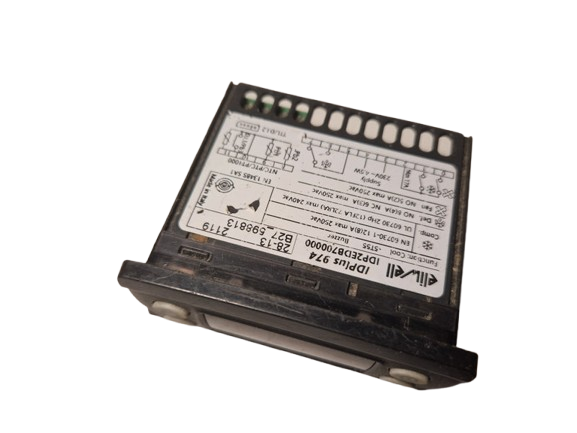

Eliwell IDplus 974 Electronic Controller, 230VAC — IDP2EDB700000

Dual-probe parametric refrigeration controller with Digifrost algorithm and buzzer

Overview

This is an Eliwell IDplus 974, Part No. IDP2EDB700000, a parametric refrigeration controller from Eliwell's widely used IDplus 900 family. Fitted with two temperature sensor inputs (regulation and evaporator) and three relay outputs, it uses the Digifrost control algorithm for precise defrost cycle management, and is well suited to static and ventilated cold storage units at both normal and low temperatures.

Key Features

  • Dual temperature probe inputs: Regulation and evaporator sensors support precise defrost cycle and evaporator fan control, compatible with PTC, NTC, or Pt1000 sensor types.
  • Digifrost algorithm: Advanced defrost management for precise, energy-efficient temperature control across simple and complex refrigeration setups.
  • Three relay outputs: 1x SPDT 1/2Hp 8(4)A, 1x SPST 2Hp 12(12)A, and 1x SPST 5(2)A, all rated 250VAC, covering compressor, defrost, and auxiliary loads.
  • Multifunctional digital input: Configurable for door switch monitoring, external alarm, or other digital signal integration.
  • Built-in buzzer: Audible alarm indication for fault and alarm conditions.
  • Compact panel mounting: Standard 32x74mm form factor widely used across commercial refrigeration cabinets and units.

What's Included

Model Function Qty
IDplus 974 (IDP2EDB700000) Electronic refrigeration controller 1

Technical Specifications

Power supply: 230V AC, 3W max power draw.

Analogue inputs: 2x PTC/NTC/Pt1000.

Digital inputs: 1x SELV.

Digital outputs: 1x SPDT 1/2Hp 8(4)A 250VAC; 1x SPST 2Hp 12(12)A 250VAC; 1x SPST 5(2)A 250VAC.

Display: LED, 3 digits + sign.

Measurement range: NTC -50 to +110°C; PTC -55 to +140°C; Pt1000 -55 to +150°C.

Operating / storage temperature: -5°C to 55°C operating; -30°C to 85°C storage.

Ambient humidity: 10–90% RH, non-condensing.

Compatibility & Applications

Part of Eliwell's IDplus 900 family, this controller is used across refrigerated cabinets, plug-in glass cabinets, supermarket counters, and condensing units/monoblocks. It's compatible with Eliwell's UNICARD/CopyCard programming accessories via TTL connection, and is well suited to both simple and more complex commercial refrigeration control applications.
