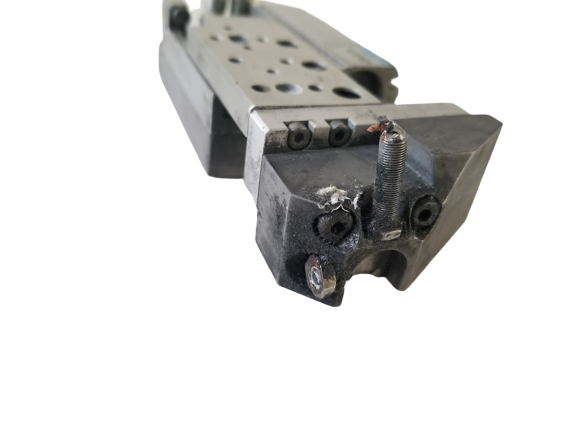

Festo SLF-16-30-P-A Mini 170513 penumatic slider cylinder

Regular price
€150,00
Regular price
Sale price
€150,00
Festo SLF-16-30-P-A Mini 170513 Penumatic Slider Cylinder" Festo SLF-16-30-P-A Mini 170513 penumatic slider cylinder "Festo SLF-16-30-P-A Mini 170513 Penumatic Slider CylinderFesto SLF-16-30-P-A Mini 170513 Penumatic Slider Cylinder
1x Festo SLF-16-30-P-A Mini 170513 pneumatic sliders cylinder
  • Stroke30 mm
  • Adjustable end-position range/length5 mm
  • Piston diameter16 mm
  • Operating mode, drive unitYoke
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting position optional
  • GuideBall bearing cage guide
  • DesignYoke Piston Piston rod Ball roller guide Slide
  • Position detection via proximity switch
  • Symbol00991737
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Operating pressure14.5 psi ... 145 psi
  • Mode of operation double-acting
  • Operating medium compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case the lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C ... 60 °C
