Festo Valve Terminal CPV14-GE-MP-8 and CPV-14-VI

€120,00
€120,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Festo Valve Terminal CPV14-GE-MP-8 and CPV-14-VIFesto Valve Terminal CPV14-GE-MP-8 and CPV-14-VIFesto Valve Terminal CPV14-GE-MP-8 and CPV-14-VIFesto Valve Terminal CPV14-GE-MP-8 and CPV-14-VI

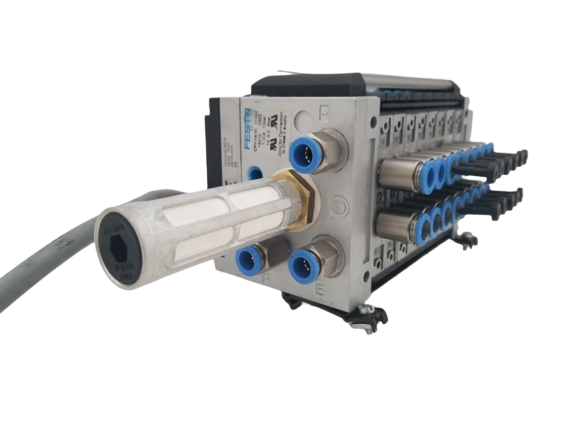

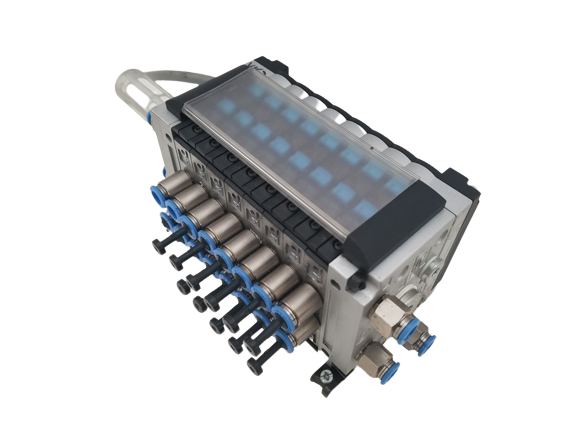

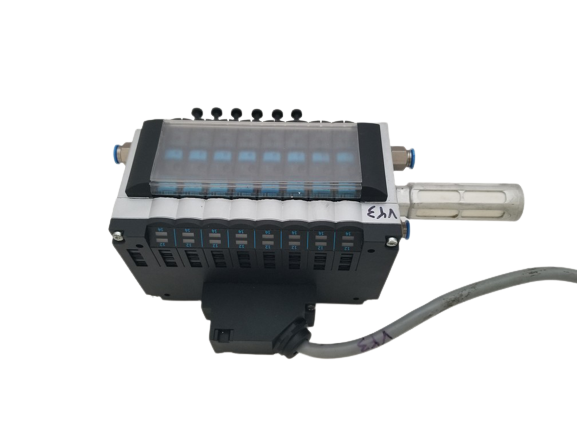

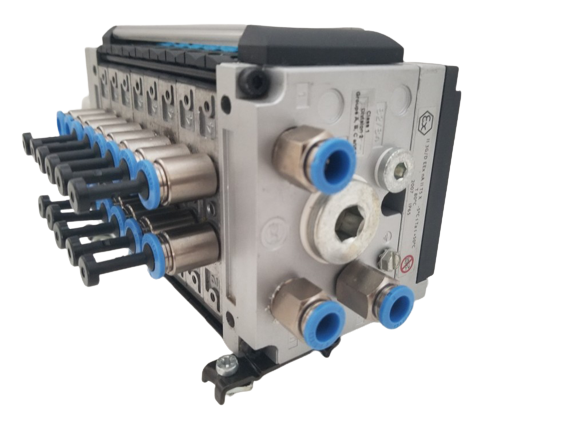

Festo Valve Terminal CPV14-GE-MP-8 & CPV14-VI

8-station CPV series valve manifold with multipin electrical interface and pneumatic base

Overview

This lot pairs a Festo CPV14-GE-MP-8 multipin electrical interface with a CPV14-VI pneumatic manifold base, forming a complete valve terminal assembly from Festo's CPV Compact Performance series. The CPV14-VI supports up to 8 valve positions and up to 16 valve functions across 2 independent pressure zones, using 14mm valve slices with a standard nominal flow rate of 800 L/min. The CPV14-GE-MP-8 provides an 8-slot, 25-pin multipin electrical connection for the assembly, enabling centralized electrical wiring across all connected valves. Rated IP65, this valve terminal is a modular, scalable pneumatic control solution for automation systems.

Key Features

  • 8-station valve manifold: Supports up to 8 valve positions and up to 16 valve functions for flexible pneumatic control.
  • Dual pressure zones: Enables up to 2 independent pressure zones across the manifold for multi-pressure applications.
  • 25-pin multipin electrical interface: Centralizes wiring for all connected valves through a single 8-slot connector.
  • High flow capacity: Standard nominal flow rate of 800 L/min at 14mm valve size.
  • Internal or external pilot air supply: Flexible configuration to suit different installation requirements.
  • LED signal status display: Provides at-a-glance status indication for connected valves.
  • Robust IP65 protection: Suitable for demanding industrial environments.
  • 24V DC nominal operating voltage: Standard control system voltage compatibility.

What's Included

Item Function Qty
Festo CPV14-GE-MP-8 Valve manifold electrical interface, 8-slot/25-pin 1
Festo CPV14-VI Pneumatic valve manifold base 1

Brand: Festo | Series: CPV | Models: CPV14-GE-MP-8, CPV14-VI

Note: individual valve slices and mounting hardware not included unless otherwise stated. Please confirm condition and testing status before purchase.

Technical Specifications

Terminal type: 10.

Operating medium: Compressed air per ISO 8573-1:2010 [7:4:4].

Media / ambient temperature: -5°C to +50°C.

Storage temperature: -20°C to +40°C.

Degree of protection: IP65.

Operating pressure: -0.9 to 10 bar (-0.09 to 1 MPa).

Pilot pressure: 3 to 80 bar (0.3 to 8 MPa).

Max. valve positions / functions: 8 positions; 16 functions; 2 pressure zones.

Actuation type: Electric; soft sealing principle.

Valve size: 14 mm; nominal size 6 mm.

Pilot air supply: External or internal.

Max. standard nominal flow rate: 800 L/min at 14mm.

Signal status display: LED.

Nominal operating voltage: 24V DC.

Compatibility & Applications

This valve terminal is compatible with Festo CPV14 series valve slices, making it well suited for centralized pneumatic control in manufacturing and process automation systems requiring multiple independently controlled pneumatic circuits. Its modular design and multipin electrical interface simplify wiring and maintenance for machine builders and integrators standardizing on Festo CPV valve terminal hardware.
